the12volt`s installbay - Mobile Electronics Forums the12volt's install bay / Relays

Subject Topic: 6 pin relay (Topic Closed Topic Closed)

Post ReplyPost New Topic
the12volt's install bay
Author
Message      << Prev Topic  |  Next Topic >>
lababy24
Member
Member
spacespace

Joined: February 12, 2009
Location:
California,
United States
Posts: 4
Posted: February 12, 2009 at 6:41 PM - IP Logged

hi, i want to install the heated mirrors on my altima, so i got an extra defogger switch and relay as the ones used for the rear windshield to use it for the mirrors as a separate install, i opened the switch to look inside for a timer circuit and there is nothing but the switch mechanism, so i am assuming the timer might be build in the relay, which is an open 6 pin relay that perhaps controls two circuits, does anybody knows if this relay might have the timer build in? if not where in the car can that be? the relay and switch came from an altima 1994. thanks


___________________________________
the ignorant
Back to Top Search for other posts by lababy24
Hi Guest
Not a member?
Register

Already a member?
Sign In
ckeeler
Copper
Copper
spacespace

Joined: June 20, 2008
Location:
New Mexico,
United States
Posts: 1,462
Posted: February 12, 2009 at 6:56 PM - IP Logged

can you post a pic of the relay?
Back to Top Search for other posts by ckeeler
lababy24
Member
Member
spacespace

Joined: February 12, 2009
Location:
California,
United States
Posts: 4
Posted: February 12, 2009 at 7:40 PM - IP Logged

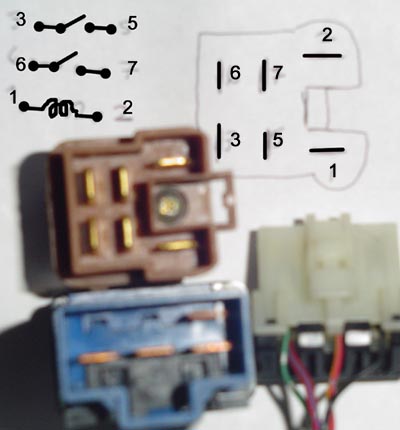

 please check it out
___________________________________
the ignorant
Back to Top Search for other posts by lababy24
i am an idiot
Platinum
Platinum
spaceThis member consistently provides reliable informationspace

Joined: September 21, 2006
Location:
Louisiana,
United States
Posts: 11,498
Posted: February 12, 2009 at 7:52 PM - IP Logged

According to the diagram, it is simply a Double Pole Single Throw relay.
Back to Top Search for other posts by i am an idiot
lababy24
Member
Member
spacespace

Joined: February 12, 2009
Location:
California,
United States
Posts: 4
Posted: February 12, 2009 at 7:59 PM - IP Logged

that might be simple, but what I am really trying to figure out is where or how does the timer work, my rear defogger works for 15 minutes and then turn off. so i got the same relay and switch  from another altima so i could hook ther heated mirros with that and use the timer build in, but where is the timer, is that in the relay? do relays have timer? please help
___________________________________
the ignorant
Back to Top Search for other posts by lababy24
lababy24
Member
Member
spacespace

Joined: February 12, 2009
Location:
California,
United States
Posts: 4
Posted: February 12, 2009 at 8:26 PM - IP Logged

just found information on another site that says "ok, then the rear defogger is not controled by a relay, it's controlled trhought the ETACS," , which i think might apply to how my car defogger works. now that i know that i need to find a timer switch instead anybody knows of one?
___________________________________
the ignorant
Back to Top Search for other posts by lababy24
91stt
Silver
Silver
spaceThis member consistently provides reliable informationspace

Joined: May 24, 2006
Location:
New Jersey,
United States
Posts: 556
Posted: February 13, 2009 at 4:04 PM - IP Logged

what year is your altima?
Back to Top Search for other posts by 91stt
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,295
Posted: March 07, 2009 at 3:38 AM - IP Logged

ETACS is a processor controlling a number of the vehicles problems, delve into that and you will be opening a can of expensive worms. That DPCO relay is very common on Nissans but irrelevant to your needs. The heater draw on those mirrors is very low. Use a Velleman kit to give you a timed output, 5 mins etc.
Back to Top Search for other posts by howie ll
