Subject Topic: DEI 528t, siren delay (Topic Closed Topic Closed)

Post ReplyPost New Topic
the12volt's install bay
Author
Message      << Prev Topic  |  Next Topic >>
Hoot
Member
Member
spacespace

Joined: July 29, 2004
Location:
United States
Posts: 10
Posted: November 24, 2009 at 6:18 AM - IP Logged

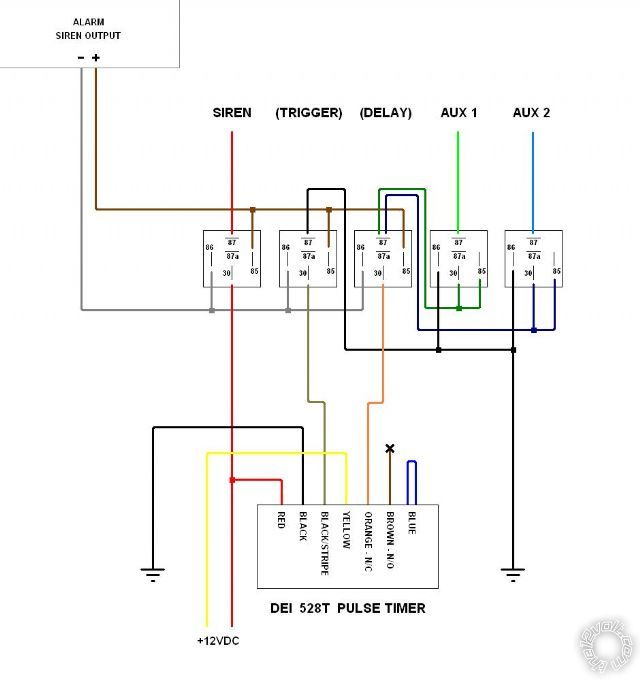

This is a circuit I'm using in my truck that's triggered by the siren output of the alarm.  It delays output to additional alarm lights and sirens.  Right  now I have two Aux relays that control two circuits that are isolated from each other.  One for LED's and one for an additional siren.  These lights and siren needed to be isolated because they are also switched on manually and cannot be allowed to backfeed into each other.  I originally tried it without the 'Delay' relay, but found that the 528T was pulling the Normally closed circuit open at the same time that the Aux relay was closing, resulting in a very brief flicker of the LED's.  With the additional relay inserted, the flicker is eliminated.

Result:

Arming and disarming chirps only use the car alarm siren.
During full alarm, and after a two second delay, LED's and secondary siren are activated.

I hope somebody will find it useful.

Hoot

Back to Top Search for other posts by Hoot
Hi Guest
Not a member?
Register

Already a member?
Sign In
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,942
Posted: November 24, 2009 at 6:50 AM - IP Logged

Nice one, but I wonder if you could have used diodes to save some of those relays, sorry I can't get my head round it to explain.
Back to Top Search for other posts by howie ll
profuse007
Gold
Gold
spacespace

Joined: October 20, 2002
Location:
Texas,
United States
Posts: 2,021
Posted: December 04, 2009 at 8:29 AM - IP Logged

On toyota, honda, lexus, ect... w/ factory soft chirp, can this be utilize to prioritize the soft chirp to chirp when you lock/unlock before the siren?

another word, I like to keep the soft chirp that the OEM vehicles have for when you lock/unlock but at the same time still retain the viper siren when the alarm goes off.
___________________________________
Tran- Houston,TX
"The two most common elements in the universe are H+ and stupidity" (Ellison).
Back to Top Search for other posts by profuse007
