the12volt`s installbay - Mobile Electronics Forums the12volt's install bay / Relays

Subject Topic: simple way to make a time delay relay (Topic Closed Topic Closed)

Post ReplyPost New Topic
the12volt's install bay
Author
Message      << Prev Topic  |  Next Topic >>
southface
Member
Member
spacespace

Joined: November 02, 2010
Posts: 2
Posted: November 02, 2010 at 7:16 AM - IP Logged

Hi

Sorry if I'm posting something that someone else has answered. I really did check and could not find anything!

I'm looking to build a simple circuit that will activate a relay but with a short time delay. I understand this means I need a normally-open, timed-closed relay, or a simple circuit that can act like one.

It will use 12V DC on the coil. I'd like the relay to be normally open and only close after about half a second of continuous charge/current on the coil contacts. I understand it may be possible to do this by simply using a capacitor and a resistor with a standard 12V relay. Is there anyone who has details who can help, for example:

- how do I wire the capacitor and resistor to the relay?

- what sizes do I need?

Thanks

Paul

Back to Top Search for other posts by southface
Hi Guest
Not a member?
Register

Already a member?
Sign In
i am an idiot
Platinum
Platinum
spaceThis member consistently provides reliable informationspace

Joined: September 21, 2006
Location:
Louisiana,
United States
Posts: 11,498
Posted: November 02, 2010 at 5:27 PM - IP Logged

Do you have any capacitors available?  If so, what values do you have?
Back to Top Search for other posts by i am an idiot
southface
Member
Member
spacespace

Joined: November 02, 2010
Posts: 2
Posted: November 03, 2010 at 12:22 AM - IP Logged

I don't, but I am willing to go and buy the value I need.
Back to Top Search for other posts by southface
rock61992
Member
Member
spacespace

Joined: January 16, 2011
Location:
Texas,
United States
Posts: 1
Posted: January 16, 2011 at 3:58 PM - IP Logged

I need the exact same thing, but i also need it to delay in shutting off for about half a second as well. I guess its just getting a capacitor to discharge onto the coil after the trigger current is off but i have no idea how to wire it or if i would need diodes in certain spots. Any advice or a wiring diagram would be much appreciated, Thank you.

For clarity...

I need a relay to contol the timing of another circuit with about a half second delay going on and off.

Back to Top Search for other posts by rock61992
oldspark
Gold
Gold
spacespace

Joined: November 03, 2008
Location:
Australia
Posts: 4,408
Posted: January 16, 2011 at 6:50 PM - IP Logged

You can't do BOTH using simple Rs & Cs and diodes. (Not without using several relays....)

IMO these tings are better done by circuitry anyhow - ie, semiconductors, chips etc.
Back to Top Search for other posts by oldspark
hotwaterwizard
Silver
Silver
spacespace

Joined: December 11, 2003
Location:
California,
United States
Posts: 1,306
Posted: February 16, 2011 at 12:38 AM - IP Logged

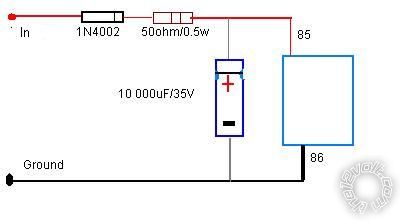

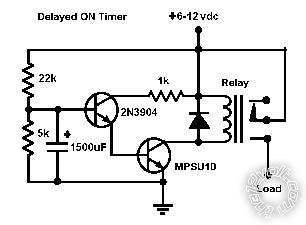

What you want is called an On Delay. There are several ways to do this.

posted_image

posted_image


___________________________________
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

posted_image
Back to Top Search for other posts by hotwaterwizard
oldspark
Gold
Gold
spacespace

Joined: November 03, 2008
Location:
Australia
Posts: 4,408
Posted: February 16, 2011 at 12:58 AM - IP Logged

PEDantic: In the last fig, #85 & #86 should be swapped...
(Convention is #85 is -ve or GND; #86 is +ve.)
....but this only matters if the relay has an in-built spike-quenching diode.
(Which I hate for that polarity reason - I prefer to wire such diodes in the socket/harness so I can use ANY relay (suppressed or not).


And IMHO as usual - hotwaterwizard so often supplies a great collection of circuits or circuit ideas. (Well worth waiting for!)

Now - a simpler FET delay....????
Back to Top Search for other posts by oldspark
hotwaterwizard
Silver
Silver
spacespace

Joined: December 11, 2003
Location:
California,
United States
Posts: 1,306
Posted: February 17, 2011 at 9:56 PM - IP Logged

http://www.bowdenshobbycircuits.info/page2.htm#relay_i.gif

posted_image


___________________________________
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !

posted_image
Back to Top Search for other posts by hotwaterwizard
