the12volt`s installbay - Mobile Electronics Forums the12volt's install bay / Car Security and Convenience - Pictorials

Subject Topic: 2012 kia sportage pictorial

Post ReplyPost New Topic
the12volt's install bay
Author
Message    << Prev Topic  |  Next Topic >>
chev104275
Silver
Silver
spacespace

Joined: November 26, 2007
Location:
Massachusetts,
United States
Posts: 1,110
Posted: January 05, 2012 at 6:19 PM - IP Logged
Link to Post  Post Reply Quote chev104275

This one is a 2012 Kia Sportage Non-Push start using a 4103

posted_image

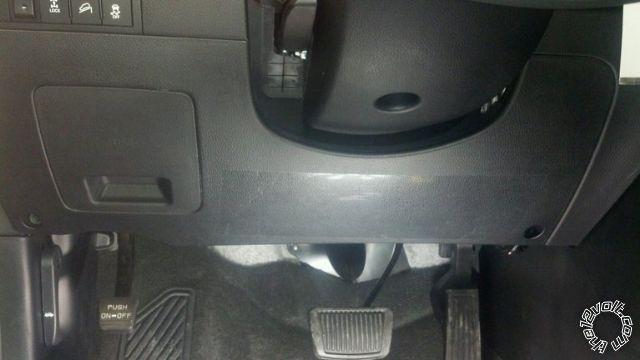

Drivers dash has 2 phillps head screws in the 2 bottom corners
posted_image

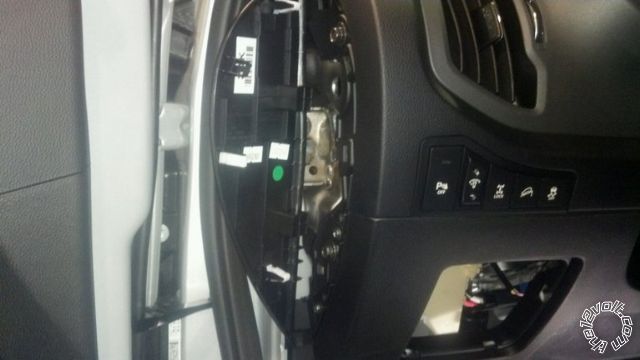

side of drivers dash is held in by plastic clips
posted_image

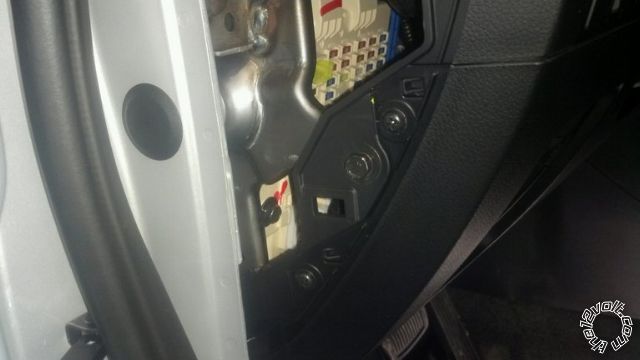

On the side of drivers dash there 2 more phillps head screws
posted_image

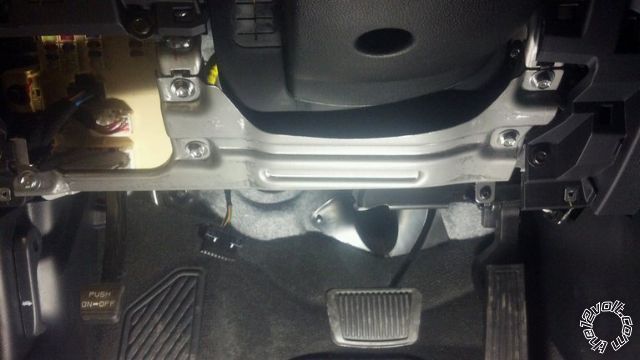

5 10mm bolts how the metal in
posted_image
Phillps head screw on both sides
posted_image

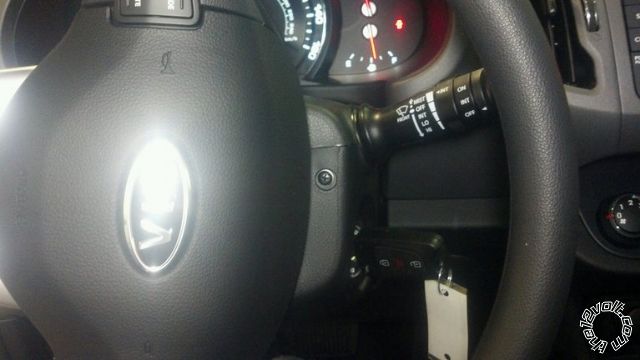

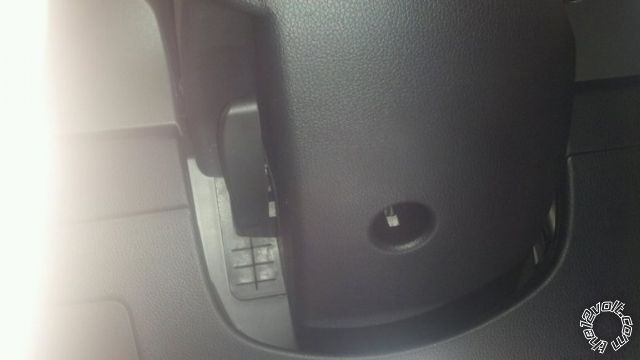

Phillps head under column shroud
posted_image

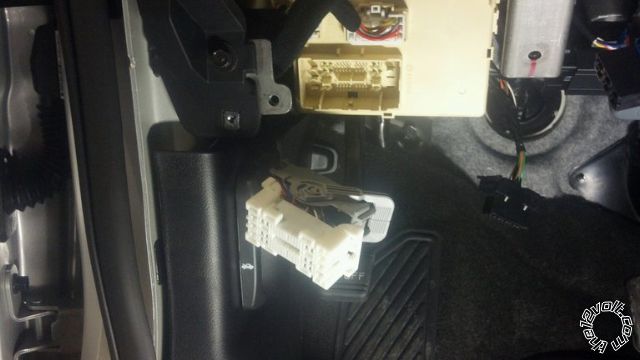

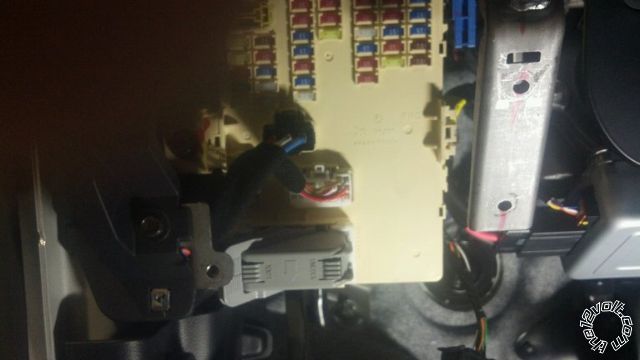

shot of the front of fuse box bottom Lrg connector is the one with the locks and FAD wire
posted_image
i usually unplug this and remove the gray top
posted_image

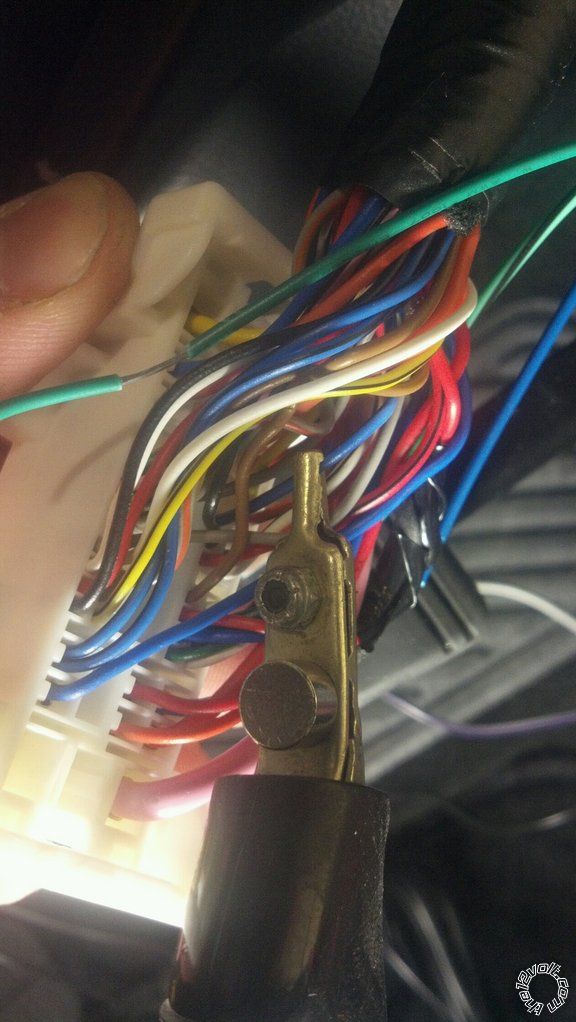

Lock- Blue/Black
posted_image

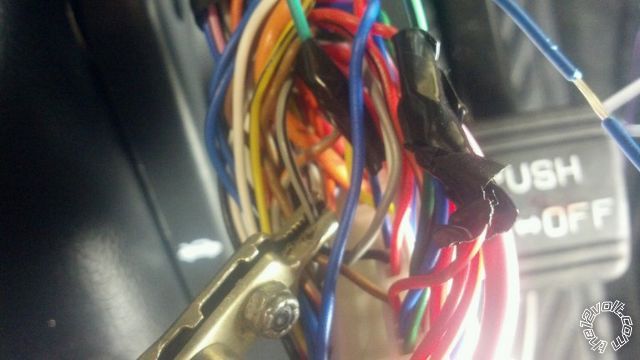

Unlock- Gray/Black
posted_image

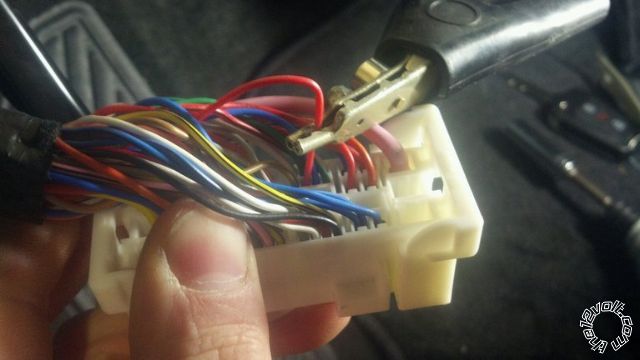

Factory alarm Disarm- Red
posted_image

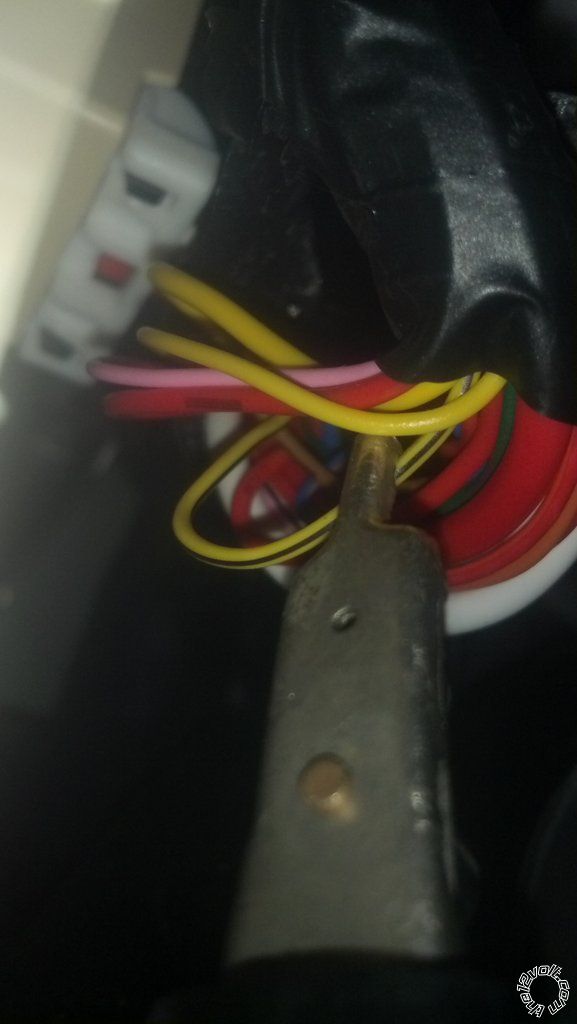

Drivers door unlock relay-Yellow/Black in back of fuse box. Need to tie this in with the unlock wire using a diode in between the too(diode band facing Starter)
posted_image

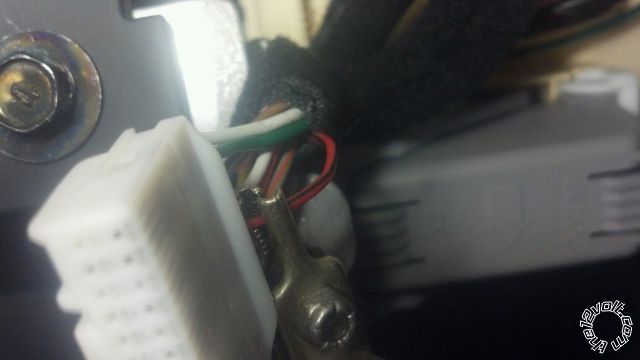

Hood pin- Red/Black
posted_image

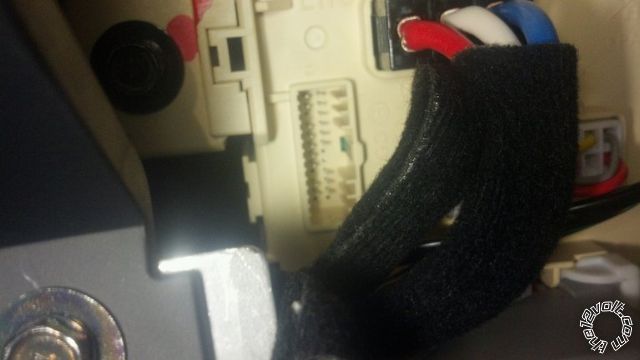

Connector unplugged where hood pin wire is
posted_image

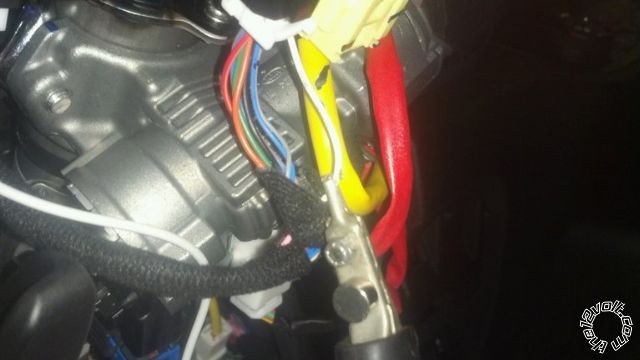

Horn- White
posted_image

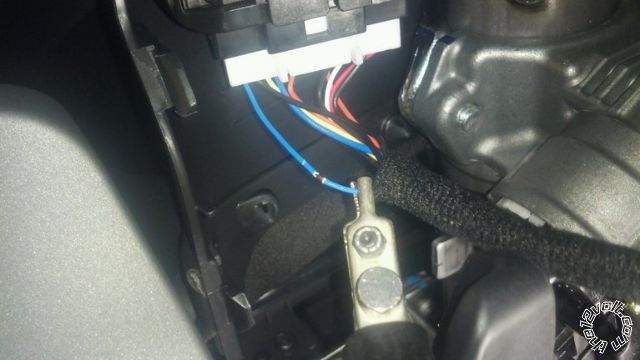

Parking lights-Blue at light switch
posted_image

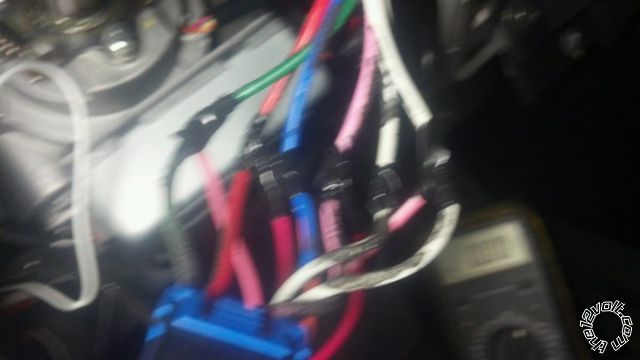

Ingition Harness Ingition-Green, Acc1-Blue,Acc2-White,Starter-White,12v-Red,12v-Pink (Sorry for the bad pic)
posted_image
Tach-Black at cylinder 4 coil

One I forgot is the brake wire -blue at brake switch
___________________________________
If i Can't Install it    I Don't need it   Joe
Back to Top Search for other posts by chev104275
Hi Guest
Not a member?
Register

Already a member?
Sign In
kreg357
Platinum
Platinum
spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace

Joined: January 30, 2009
Location:
New York,
United States
Posts: 4,934
Posted: January 06, 2012 at 6:37 AM - IP Logged
Link to Post  Post Reply Quote kreg357

Great info, thanks!  Still no transponder immobilizers in the U.S. market 2012 non-PTS KIA's?
___________________________________
Soldering is fun!
Back to Top Search for other posts by kreg357
chev104275
Silver
Silver
spacespace

Joined: November 26, 2007
Location:
Massachusetts,
United States
Posts: 1,110
Posted: January 06, 2012 at 8:54 AM - IP Logged
Link to Post  Post Reply Quote chev104275

No nothing on those   just on the high end sedonas and borregos   all I've seen with the transponders.
___________________________________
If i Can't Install it    I Don't need it   Joe
Back to Top Search for other posts by chev104275
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,946
Posted: January 06, 2012 at 5:19 PM - IP Logged
Link to Post  Post Reply Quote howie ll

Nice. I see Ze Koreans are using ze Cherman quadlock plugs now (Mit ze poor Cherman accent).
___________________________________
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Back to Top Search for other posts by howie ll
chev104275
Silver
Silver
spacespace

Joined: November 26, 2007
Location:
Massachusetts,
United States
Posts: 1,110
Posted: January 06, 2012 at 6:28 PM - IP Logged
Link to Post  Post Reply Quote chev104275

ha ha ha Howie I will agree because I have no idea what you are talking about
___________________________________
If i Can't Install it    I Don't need it   Joe
Back to Top Search for other posts by chev104275
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,946
Posted: January 06, 2012 at 11:41 PM - IP Logged
Link to Post  Post Reply Quote howie ll

The plug with the lock wires is called a quadlock, that fuse box is starting to lock like it came from Siemens in Germany.
___________________________________
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Back to Top Search for other posts by howie ll
chev104275
Silver
Silver
spacespace

Joined: November 26, 2007
Location:
Massachusetts,
United States
Posts: 1,110
Posted: January 07, 2012 at 5:53 AM - IP Logged
Link to Post  Post Reply Quote chev104275

Ohh ok now I understand
___________________________________
If i Can't Install it    I Don't need it   Joe
Back to Top Search for other posts by chev104275
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,946
Posted: January 07, 2012 at 6:31 AM - IP Logged
Link to Post  Post Reply Quote howie ll

I was being stupid, probably managed to offend everyone of middle European origins. Just that I've never seen a quadlock on an oriental car before,solely European, having said that who knows what comes from where any more.
Half of the Kias and Hyundais come from Hungary!
___________________________________
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Back to Top Search for other posts by howie ll
mofabio
Member
Member
spacespace

Joined: July 03, 2012
Location:
Italy
Posts: 5
Posted: July 03, 2012 at 4:56 PM - IP Logged
Link to Post  Post Reply Quote mofabio

Thank you chev104275 for your great job.
I want mount my alarm on my new sportage 2012.
Please, could you confir me the connection, trigger door and ACC?

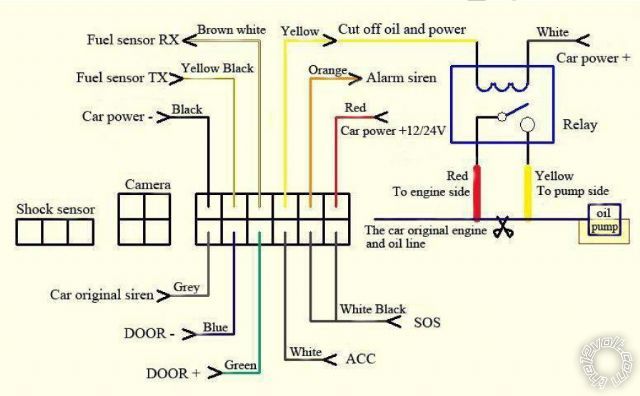

this my alarm wiring diagram:
posted_image

Trigger door is neg. or pos. ? color of wire?
ACC color wire? Use Acc1-Blue or Acc2-White?

Thanks in advance
Back to Top Search for other posts by mofabio
howie ll
Gold
Gold
spacespace

Joined: January 09, 2007
Location:
United Kingdom
Posts: 13,946
Posted: July 03, 2012 at 5:07 PM - IP Logged
Link to Post  Post Reply Quote howie ll

If you're in Italy throw away that alarm and use a Cobra or Metra, that alarm is a POS. Reason? You should never cut the fuel pump or ignition, only the starter wire and what do they mean by fuel sensor wire RX and TX?
Bet it's a Chinese alarm.
___________________________________
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Back to Top Search for other posts by howie ll
