2005 Sienna LE Remote Start w/Keyless Pictorial

This year Sienna does not have one touch start or built in Anti-Grind.  As with most

Toyota's the Factory FOB's are shut off while the engine is running.  This was a U.S.
market vehicle and had a transponder immobilizer system.  No Factory Alarm system
was present.  While some wiring guides group the 2004 - 2007 Sienna's as the same,
there have been some differences found, especially at the ECM.

There are many good bypass modules available for this vehicle.  For this install, a

DEI XK05 flashed with PKTI firmware was used.  Popular choices for DIY'ers are :
Fortin Key-Override-All
DEI PK-ALL
iDatalink ADS TBSL TI or ADS TBSL KO

Disassembly:

Remove the Drivers Kick Panel by spinning off the one fastener, lifting the leading edge of
the drivers sill trim and pulling the kick panel out, back and away.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

Remove the two 10mm bolts at each bottom corner of the Drivers Lower Dash Panel.  Pull the

panel straight back.  There are 3 snap fasteners along the top edge.
Remove the metal knee plate by removing the four 10mm bolts.

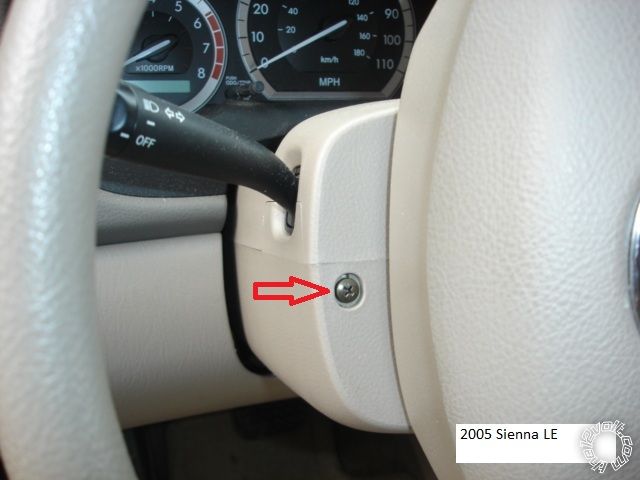

Remove the steering column cover ( both halves ) by positioning the steering in the 3 o'clock

and 9 o'clock positions and removing the Phillips screws.  Fully extend the telescoping steering
wheel, gently separate the two halves and remove.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

Here is a picture of the underside of the steering column.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

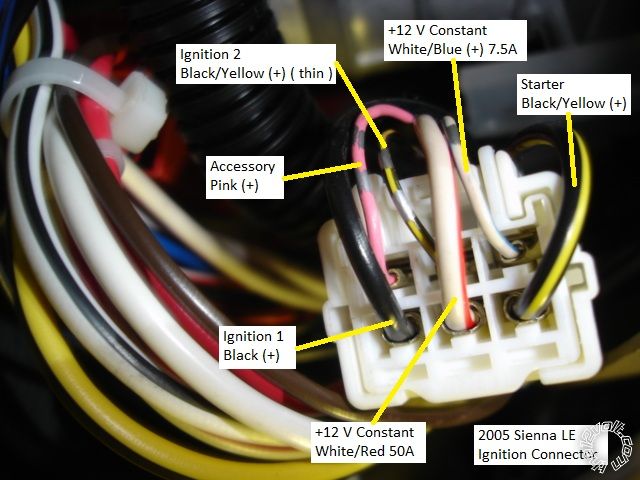

Here are the ignition wires.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

Here is the Keysense connector.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

This is a top view of the steering column, over the ignition cylinder, of the transponder connector.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

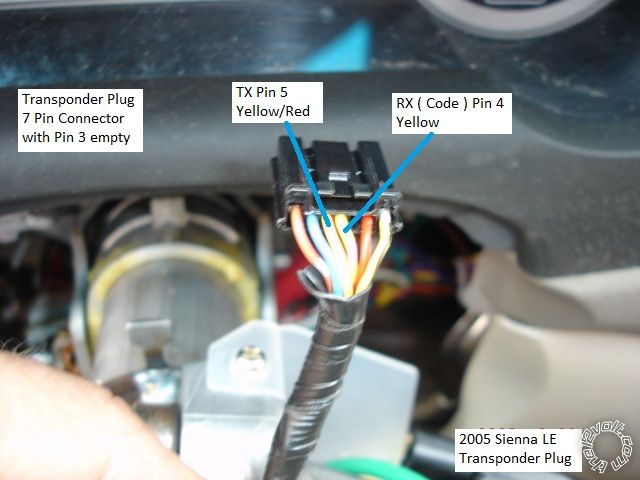

Below is the transponder connector unplugged with the wires marked.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

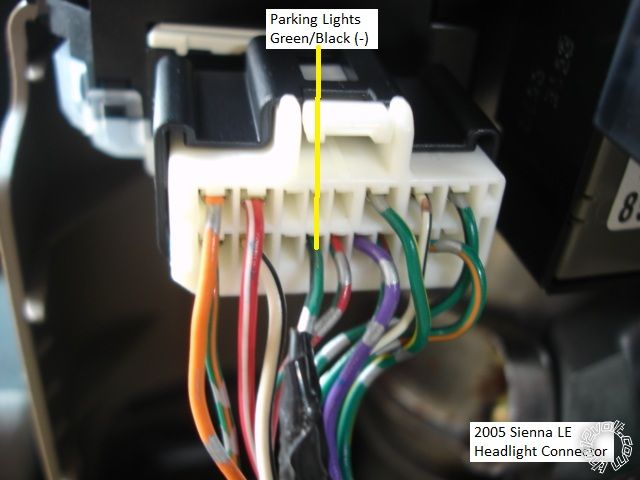

Here is the Headlight connector.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

Below is the Horn wire.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

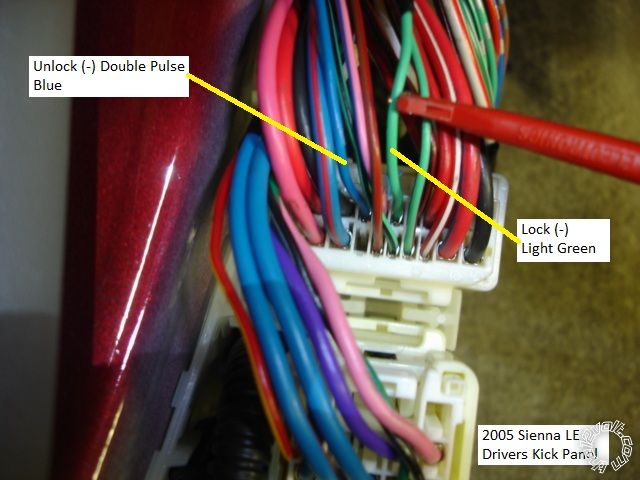

Below are the lock wires in the Driver's Kick Panel.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

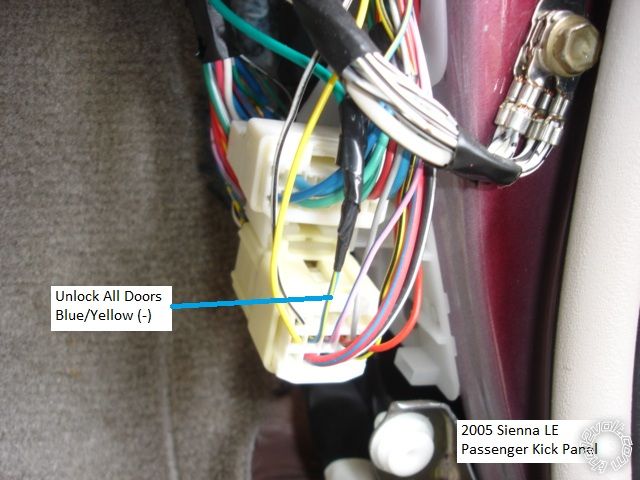

As noted, the Unlock wire requires a double pulse to unlock all the doors.  If your R/S can't do this

or you prefer a single unlock pulse, below is a Unlock All wire in the Passenger Kick Panel.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

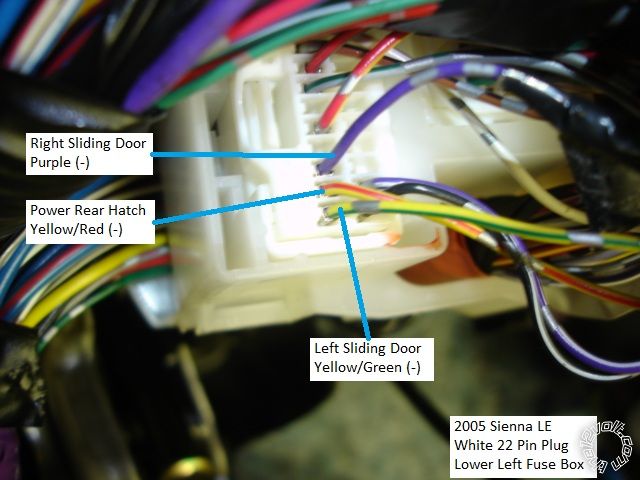

If your Sienna has power sliding doors & power rear hatch and your R/S system is capable, here

is a picture of the necessary wires.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

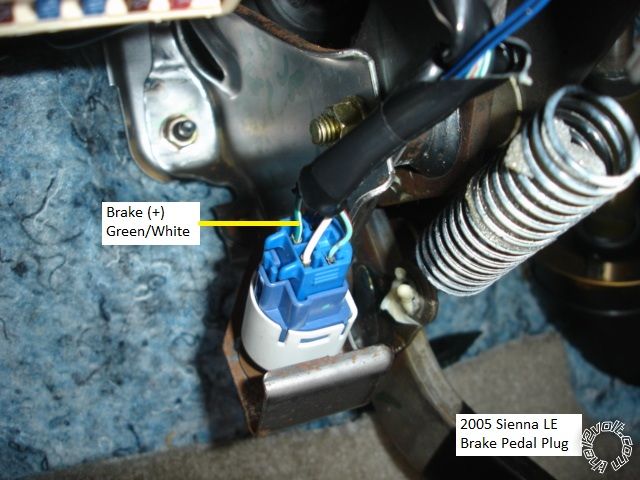

This is a picture of the Brake wire at the brake pedal connector.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

The ECM located behind the glove box has a Tach signal wire.  To remove the glove box, release

this damper located on the right side of the glove box, then press in at both sides of the box while
opening further.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

For improved access, you can also remove the upper mini-box by opening the door and pulling it

straight out of it's mounting recess.  Below is a picture of the ECM.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

This is a picture of the Tach wire, BLACK/ Orange, top plug, Pin 5

2005 Toyota Sienna Remote Start Pictorial -- posted image.

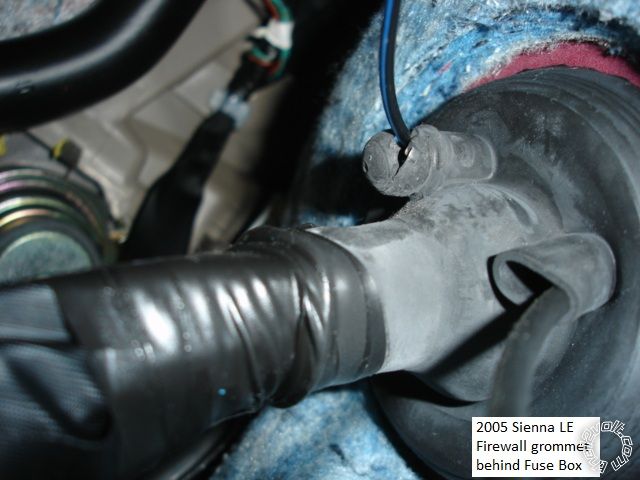

Here is a convenient firewall pass-thru grommet for the hood pin.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

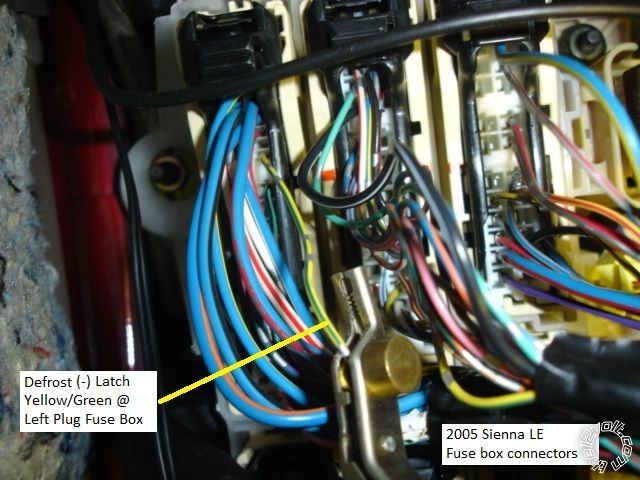

Bonus wire : Rear Defrost.  Located in the pictured connector at the upper left of the fuse box.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

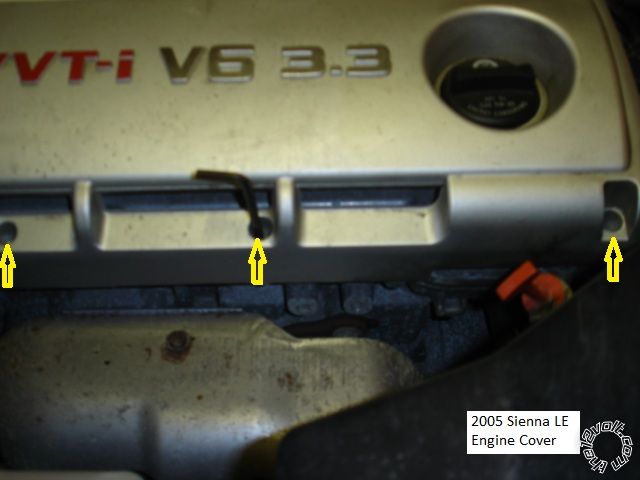

If you want, you can use a F.I. wire as the Tach source.  Remove the engine cover by removing the

three Allen head nuts shown and lifting the cover off ( two latching clips at center ).

2005 Toyota Sienna Remote Start Pictorial -- posted image.

Here is a photo of a F.I. connector with the "uncommon" wire marked.

2005 Toyota Sienna Remote Start Pictorial -- posted image.

Soldering is fun!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 24, 2012 at 8:55 AM / IP Logged
Very nice, just a technical note for anyone doing one of these for all bar North America, you will use the direction indicators rather than lights, go to the good quality photo (actually they are ALL good!) of the plug showing lights connection on the bottom row.
Look at the top row, right hand side from the right pins 1` and 3, GREEN/ black and GREEN/ YELLOW, both pos.
Alternatively, back of hazard switch, most late Toyotas grounding one of the leads for the length of time grounded, i.e. NOT latched, will activated the hazards.
If you split your (DEI) white lead do it via 2 x 1N5404 diodes.
They come with all the units for Europe.
acosta1980
Member - Posts: 5
Member spacespace
Joined: January 09, 2012
Location: North Carolina, United States
Posted: March 25, 2012 at 11:03 AM / IP Logged

VERY GOOD JOB BODY2005 Toyota Sienna Remote Start Pictorial -- posted image.

losminos n.c
mduong25
Member - Posts: 23
Member spacespace
Joined: February 27, 2004
Location: United States
Posted: October 27, 2014 at 12:01 PM / IP Logged
Do you know if we will need relays to drive the L/R sliding doors? What about relays for the trunk latch and rear defrost? Can you post a diagram of how the relays should be wired? I have a 2004 sienna. thank you so much!
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: October 27, 2014 at 6:34 PM / IP Logged

All of the item's you mentioned require only a low current ( 200mA ) (-) output signal to actuate.  Not sure of the brand

and model of remote start system you intend to use, but most of them have that type of output for the Trunk Release,
2nd Unlock or AUX outputs.  The Rear Defrost needs a Latched signal.  That is an output that remains (-) for a set period
of time.  A example would be an Avital 4103 system and it's BLUE/WHITE  (-) 200mA 2ND STATUS/REAR DEFOGGER OUTPUT.
That wire is programmable to Defrost and can be set for either a single 1 second pulse output or a 10 minute Latched output.

The rear hatch unlocks with the doors.  The Yellow/Red wire shown above is for van's that have the Power Rear Hatch option.

Soldering is fun!
mordechai
Member - Posts: 2
Member spacespace
Joined: February 22, 2015
Location: New York, United States
Posted: February 22, 2015 at 8:08 PM / IP Logged
I'm installing an avital 4103 on 2010 sienna it has a heavy gauge accessory wire do i connect it directly to the pink thin wire? also it doesn't have a transponder so how do i overrride   the immobilizer?
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: February 22, 2015 at 9:14 PM / IP Logged

Toyota has been mixing in thin wires with the thick ignition wires for a while.  The newer Toyota's have some very thin ignition wires.

Your Avital 4103 has 30 Amp ignition outputs.  While it can be difficult  ( and look strange ), you can connect these thick wires directly
to the vehicles' thin wires.  I purchased several roll's of 16 gauge stranded wire with various color insulation ( Blue, Red, Yellow, Pink,
Green, White, Violet are the more common colors ) that I use in these applications.  I cut the thick wire within 2 inches of the R/S plug
and solder the similar color 16 gauge wire on ( insulating with heat shrink tube ) to make the connection at the ignition switch.  Makes
for a nice, neat install.

Soldering is fun!
mordechai
Member - Posts: 2
Member spacespace
Joined: February 22, 2015
Location: New York, United States
Posted: February 22, 2015 at 9:20 PM / IP Logged
thanks man
aserynoum
Member - Posts: 12
Member spacespace
Joined: January 04, 2016
Location: Alberta, Canada
Posted: January 04, 2016 at 11:14 PM / IP Logged
Thanks so much for this pictorial. Im installing one on mine and i used your help, but im facing a few problems. Would mean a lot if you could check out my thread, thanks!
ojavery
Member - Posts: 6
Member spacespace
Joined: January 11, 2016
Location: New York, United States
Posted: January 12, 2016 at 5:04 PM / IP Logged
Wow,great tutorial! Can I get some help? I'm installing a crimestopper rs4g5 with a fortin evo ride. I have the fortin hooked up, that seemed surprisingly easy. I have what I need hooked up on the 12 wire of the cs now I know where to hook the tach . Now I have a 3 wire low currant plug(red). Blue/orange is start, or/wht is add,sign,aux2 and green is start activation. I don't have a push button start so do i need these? If so where should I hook them up? Now the locks, my instructions say there are 3 types of lock wiring, are toyotas neg trigger? Now the high currant 6 pin connector. Reds are obvious, straight to battery. Brown is starter power( power while cranking) where should I go with that? Grey wire is add, first key on and drops while cranking. Where should I go with this? Pink wire, ign output. Turns on in position 2 and stays on while cranking. Where do I go with this? Pink/wht wire. Multi function output, can be used for 2nd ign ,acc, or starter. What should I use this for? I have power sliders I would like to use. Thanks in advance for your help, I reallyappriciate it!!
o.j..
Page of 2

  Printable version Printable version Post ReplyPost New Topic
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot delete your posts in this forum
You cannot edit your posts in this forum
You cannot create polls in this forum
You cannot vote in polls in this forum

  •
Search the12volt.com
Follow the12volt.com Follow the12volt.com on Facebook
Thursday, March 28, 2024 • Copyright © 1999-2024 the12volt.com, All Rights Reserved Privacy Policy & Use of Cookies
Disclaimer: *All information on this site ( the12volt.com ) is provided "as is" without any warranty of any kind, either expressed or implied, including but not limited to fitness for a particular use. Any user assumes the entire risk as to the accuracy and use of this information. Please verify all wire colors and diagrams before applying any information.
