Hey Guys installing a  viper 3203 on 2011 Nissan Sentra, I am a little confuse on the wiring. My Sentra is just a basic model did not come with remote entry, but it has power door locks. Thought to install the 3203 to give me the remote entry. I am just not sure if I need to add relays or if the onboard relays will work. I do not know if I need to use the flex relays H2/7, H2/8. Thanks in Advance

H2/1-Violet to GndH2/2-Blue to Pink Pwr UnlockH2/4-Violet/Blk to GndH2/5-Green to Red Pwr LockH1/4-Wht/Brn- ?H1/8-Green to Lt Blue Door TriggerH1/9-Blk/Wht-? Domelight  Supervision Red -H1/11-White to Parking Lights Red+Main Harness H1, 12 Pin Connector Viper 3203

H1/1 RED / WHITE (-) 200mA AUX/TRUNK OUTPUT

H1/2 RED (+)12VDC CONSTANT INPUT H1/3 BROWN (+) SIREN OUTPUT H1/4 WHITE/ BROWN PARKING LIGHT ISOLATION WIRE - PIN 87a of onboard relay H1/5 BLACK (-) CHASSIS GROUND H1/6 VIOLET (+) DOOR TRIGGER INPUT H1/7 BLUE (-) TRUNK PIN/ INSTANT TRIGGER INPUT (N/C OR N/O) H1/8 GREEN (-) DOOR TRIGGER INPUT (N/C* OR N/O) H1/9 BLACK/ WHITE (-) 200mA DOME LIGHT SUPERVISION/FLEX RELAY (Programmable) OUTPUT H1/10 WHITE/ BLUE 200 mA AUX 1 OUTPUT H1/11 WHITE PARKING LIGHT OUTPUT H1/12 ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT

*When using the normally closed setting, this wire only covers one door. Use auxiliary outputs 2, 3 or 4 (as

necessary) programmed as N/C door switch inputs (wired to each individual door of the vehicle) to cover the other doors. The auxiliary outputs are also programmable as N/O door switch inputs so you can connect multiple doors without the use of diodes. When the auxiliaries are programmed for these types of circuits and connected to the vehicle, the alarm reports a door violation when triggered.

Door Lock Harness (H2), 8-pin connector (,0

H2/1 VIOLET* UNLOCK #87 NORMALLY OPEN (INPUT)

H2/2 BLUE/BLACK UNLOCK #30 COMMON (OUTPUT) H2/3 BROWN / BLACK UNLOCK #87a NORMALLY CLOSED H2/4 VIOLET/BLACK* LOCK #87 NORMALLY OPEN (INPUT) H2/5 GREEN/ BLACK LOCK #30 COMMON (OUTPUT) H2/6 WHITE/ BLACK LOCK #87a NORMALLY CLOSED H2/7 WHITE/ VIOLET FLEX RELAY #87 NORMALLY OPEN (INPUT)**

H2/8 WHITE/ BROWN FLEX RELAY #87a NORMALLY CLOSED**

* Violet and Violet/Black are common at the fuse holder.

** These wires work in conjunction with the BLACK/ white H1/9 wire. The WHITE/ violet determines what the polarity of the H1/9 wire will be and the WHITE/ brown will only be used if a five wire circuit is required. 0 0 0 0 0

Auxiliary Harness (H3) 7-pin connector 7

113/1 ORANGE / BLACK (-) 200mA AUX 4 OUTPUT 113/2 WHITE/ BLACK (-) 200mA AUX 3 OUTPUT H3/3 VIOLET/BLACK (-) 200mA AUX 2 OUTPUT H3/4 LIGHT GREEN/ BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT H3/5 YELLOW (+) IGNITION INPUT H3/6 s BROWN (-) 200mA HORN HONK OUTPUT H3/7 GREY (-) HOOD PIN INPUT (N/C OR N/O)

Starter Kill Harness, 3- in connector

GREEN / WHITE STARTER - COMMON (KEY SIDE)

2 GREEN STARTER - NORMALLY OPEN (MOTOR NISSAN SENTRA

MODEL YEAR(S

SENTRA 2007-2011

KEY

N/A T-HARNESS N/A IMMOBILIZER NISSAN'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1 PART 12 VOLT CONSTANT COLOR GREEN (+) LOCATION @ IGNITION SWITCH, (WHITE, 6-PIN PLUG), PIN 3 DIAGRAM STARTER WHITE (+) @ IGNITION SWITCH, (WHITE, 6-PIN PLUG), PIN 2 STARTER 2 N/A IGNITION 1 YELLOW (+) @ IGNITION SWITCH, (WHITE, 6-PIN PLUG), PIN 1 IGNITION 2 N/A IGNITION 3 N/A

ACCESSORY /HEATER RED (+) @ IGNITION SWITCH, (WHITE,

BLOWER 1 6-PIN PLUG), PIN 4

ACCESSORY /HEATER BLUE (+) @ IGNITION SWITCH, (WHITE,

BLOWER 2 6-PIN PLUG), PIN 5

KEYSENSE N/A

PARKING LIGHTS ( - ) N/A PARKING LIGHTS ( + ) RED (+) in DRIVERS KICK PANEL, Harness to REAR of Vehicle POWER LOCK RED (TYPE B) in DRIVERS KICK PANEL or BCM, (WHITE, 15-PIN PLUG), PIN 5, NOTE #2 POWER UNLOCK PINK (TYPE B) in DRIVERS KICK PANEL or BCM, (WHITE, 15-PIN PLUG), PIN 6, NOTE #2 LOCK MOTOR WIRE PURPLE (5-wire type) in DRIVERS KICK PANEL or BCM, (BLACK, 15-PIN PLUG), PIN 10, NOTE #2 DOOR TRIGGER LT. BLUE (-) in DRIVERS KICK PANEL or BCM, (WHITE, 15-PIN PLUG), PIN 7, NOTE #2 DOMELIGHT SUPERVISION RED (-) in DRIVERS A Pillar or BCM, (BLACK, 15-PIN PLUG), PIN 8, NOTE #2

TRUNK RELEASE Use Trunk Release Motor wire

SLIDING POWER DOOR N/A

HORN GREEN (-) @ HORN Switch, (GRAY, 8-PIN

PLUG), PIN 3

TACH BLUE, GRAY, ORANGE or RED @ Any FUEL-INJECTOR

(AC)

WAIT TO START LIGHT N/A

BRAKE RED / GREEN (+) @ BRAKE PEDAL Switch or in

DRIVERS KICK PANEL, Harness to REAR of Vehicle

FACTORY ALARM DISARM BLUE to WHITE (-) Requires in DRIVERS KICK PANEL or

Double Pulse, NOTE #3 BCM, (WHITE, 40-PIN PLUG), PIN 7, NOTE #2

ANTI-THEFT NISSAN'S TRANSPONDER TRANSPONDER @ IGNITION

ANTI-THEFT SYSTEM, See SWITCH TUMBLER NOTE #1

NOTES

NOTE #1: This vehicle is Equipped with NISSAN'S TRANSPONDER ANTI-THEFT SYSTEM,

for REMOTE STARTING ONLY you will need the Part #791 BYPASS Module and an

Extra Ignition key. (Requires extra key for Operation)

Part # XKO9 for REMOTE STARTING ONLY, requires 1 key for

programming, NO key required for Operation.

Part # DB-ALL for REMOTE START/KEYLESS Entry, requires 1 key for programming

and NO Key for Operation.

To Order the go to the SECURITY BYPASS MODULE Page or INTERFACE BYPASS

MODULE Page on this website.

NOTE #2: the BCM (Body Control Module) is located Behind the GLOVE BOX.

tech2

Forget the white brown. Ignore all of the following. H2/8 WHITE/ BROWN FLEX RELAY #87a NORMALLY CLOSED** * Violet and Violet/Black are common at the fuse holder. ** These wires work in conjunction with the BLACK/ white H1/9 wire. The WHITE/ violet determines what the polarity of the H1/9 wire will be and the WHITE/ brown will only be used if a five wire circuit is required. 0 0 0 0 0 Auxiliary Harness (H3) 7-pin connector 7 113/1 ORANGE / BLACK (-) 200mA AUX 4 OUTPUT 113/2 WHITE/ BLACK (-) 200mA AUX 3 OUTPUT H3/3 VIOLET/BLACK (-) 200mA AUX 2 OUTPUT H3/4 LIGHT GREEN/ BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT H3/5 YELLOW (+) IGNITION INPUT H3/6 s BROWN (-) 200mA HORN HONK OUTPUT H3/7 GREY (-) HOOD PIN INPUT (N/C OR N/O) Starter Kill Harness, 3- in connector GREEN / WHITE STARTER - COMMON (KEY SIDE) 2 GREEN STARTER - NORMALLY OPEN (MOTOR NISSAN SENTRA MODEL YEAR(S SENTRA 2007-2011 KEY N/A T-HARNESS N/A IMMOBILIZER NISSAN'S TRANSPONDER ANTI-THEFT SYSTEM, See NOTE #1 PART 12 VOLT CONSTANT COLOR GREEN (+) LOCATION @ IGNITION SWITCH, (WHITE, 6-PIN PLUG), PIN 3 DIAGRAM STARTER WHITE (+) @ IGNITION SWITCH, (WHITE, 6-PIN PLUG), PIN 2 STARTER 2 N/A IGNITION 1 YELLOW (+) @ IGNITION SWITCH, (WHITE, 6-PIN PLUG), PIN 1 IGNITION 2 N/A IGNITION 3 N/A ACCESSORY /HEATER RED (+) @ IGNITION SWITCH, (WHITE, BLOWER 1 6-PIN PLUG), PIN 4 ACCESSORY /HEATER BLUE (+) @ IGNITION SWITCH, (WHITE, BLOWER 2 6-PIN PLUG), PIN 5 KEYSENSE N/A PARKING LIGHTS ( - ) N/A PARKING LIGHTS ( + ) RED (+) in DRIVERS KICK PANEL, Harness to REAR of Vehicle POWER LOCK RED (TYPE B) in DRIVERS KICK PANEL or BCM, (WHITE, 15-PIN PLUG), PIN 5, NOTE #2 POWER UNLOCK PINK (TYPE B) in DRIVERS KICK PANEL or BCM, (WHITE, 15-PIN PLUG), PIN 6, NOTE #2 LOCK MOTOR WIRE PURPLE (5-wire type) in DRIVERS KICK PANEL or BCM, (BLACK, 15-PIN PLUG), PIN 10, NOTE #2 DOOR TRIGGER LT. BLUE (-) in DRIVERS KICK PANEL or BCM, (WHITE, 15-PIN PLUG), PIN 7, NOTE #2 DOMELIGHT SUPERVISION RED (-) in DRIVERS A Pillar or BCM, (BLACK, 15-PIN PLUG), PIN 8, NOTE #2. None of the above is relevant. If you intend to use this as an alarm you'd be better off dividing the H1/8 green between the different door triggers and dividing them together, alternatively if there's no delay on your domelight after you close all the doors, OR it turns off immediately on locking, connect H1/8 to RED in the driver door pillar (I think they mean "A" pillar). You will need a relay and a 1N4004 diode for the trunk release motor wire, see this diagram:- 7AF_trunk_release.bmp

Thanks Howie III will connect H1/8 to all four door triggers, will this install allow me to open the driver door with the first push of the disarm button and on the second push opens the rest of the doors or do i need extra relay's?tech2

Extra relays, been a long day it's nearly 10:00p.m. here but I'll do something for you tonight ref. priority unlock.

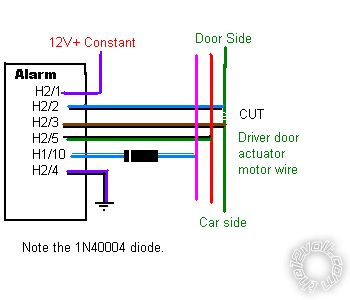

Much easier than I thought, you will only need a 1N4004 diode, all the wires are in the driver kickwell. The green motor wire sits on ground and goes to 12V+ for 0.8 seconds on unlock. sentra_priority_unlock.bmp

When you unlock only the driver's door will unlock, the press and hold aux 1 for 2 seconds (validity) to unlock other doors.

Thanks Again Howie IItech2
