2008 Kia Rio Clifford 20.7x Remote Start Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: April 18, 2014 at 8:18 PM / IP Logged
Installed a Clifford 20.7x in a 2008 Kia Rio, 4 door sedan. Can't be much easier than this one. NO alarm, NO power locks, NO bypass needed.
One starter, One Ignition, Two Accessory, plus the usual connections.

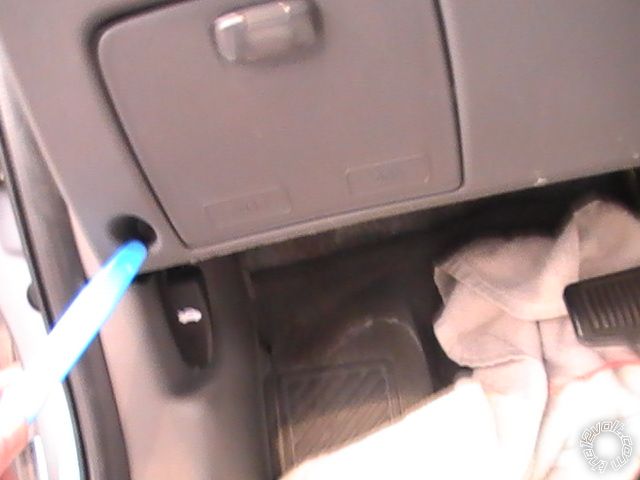

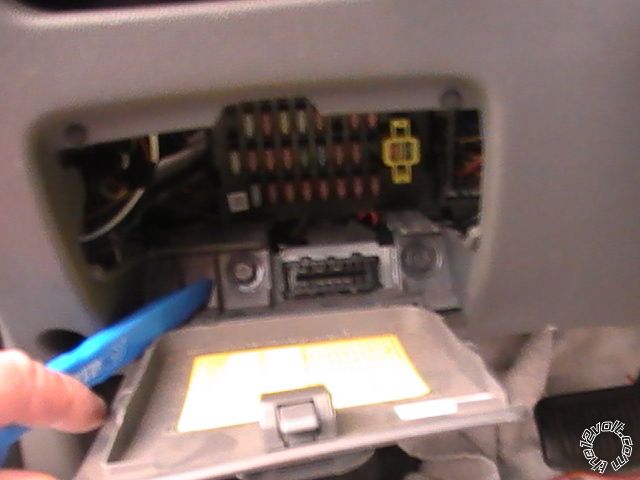

Dash panel, held by two Phillips screws, two 10mm blots behind fuse cover door, and six clips.
Ran the hood pin wire out through the large grommet going to engine compartment. Sorry no picture of that, but you cant miss it.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

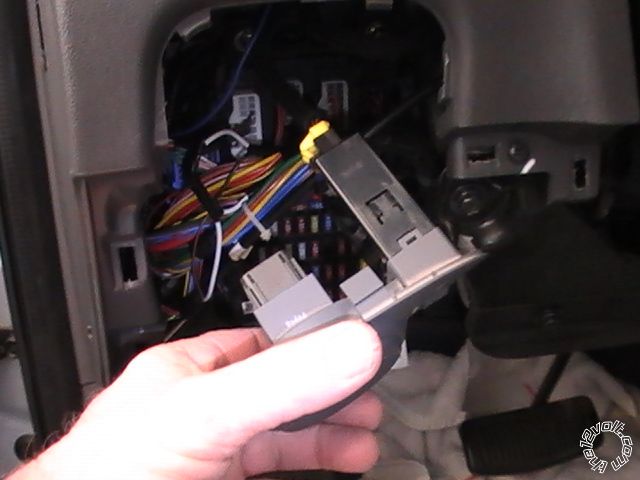

Dimmer Switch. Nothing to connect to here.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

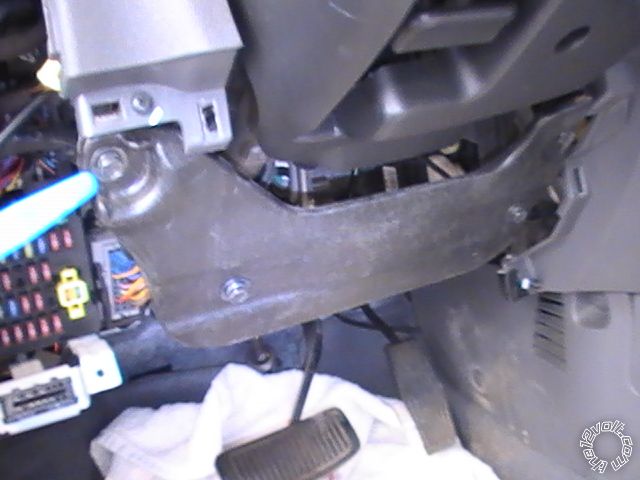

Bracket behind dash panel. Held by 4 10mm bolts.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

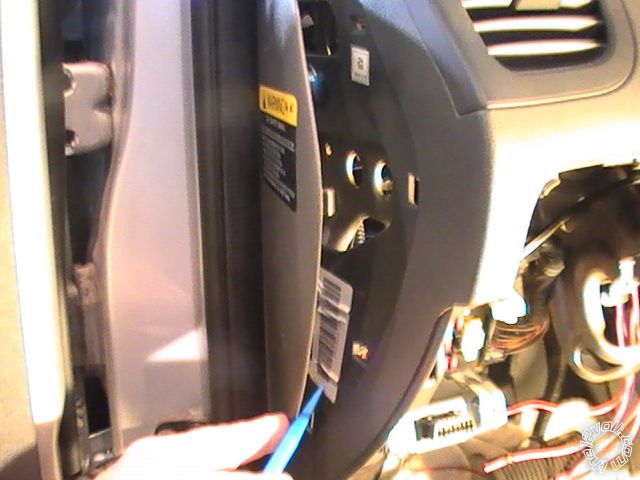

Side panel held on with clips
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

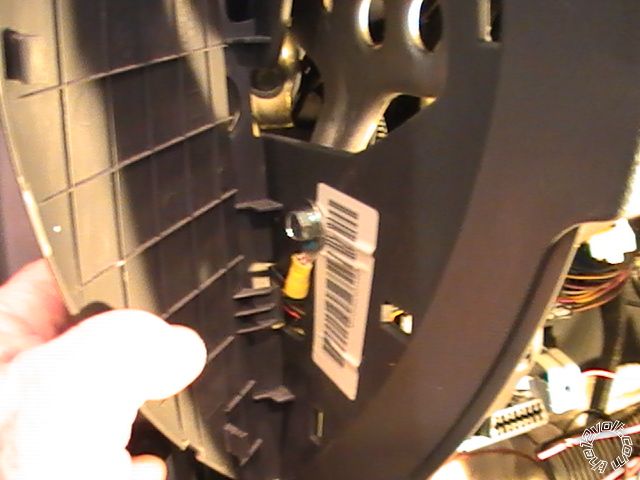

I used this bolt for the ground.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

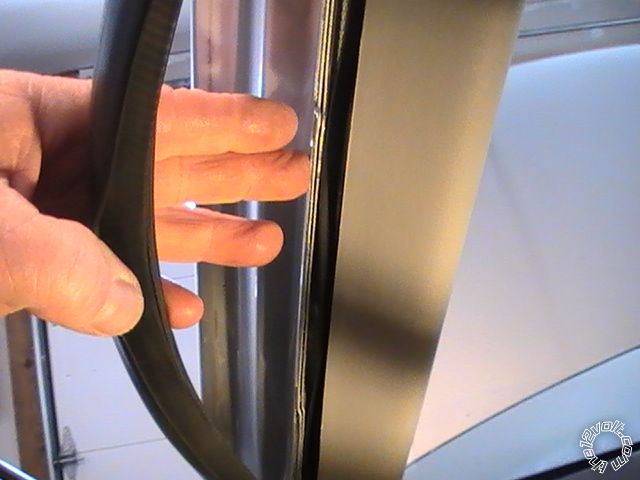

My usual running of the antenna wire behind the A pillar weather seal. Care of the Airbag system in A pillar.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

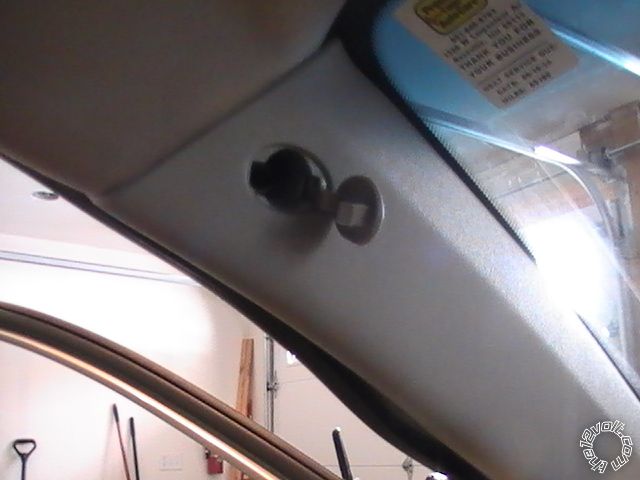

Screw cover at top of A pillar. Phillips screw behind it.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

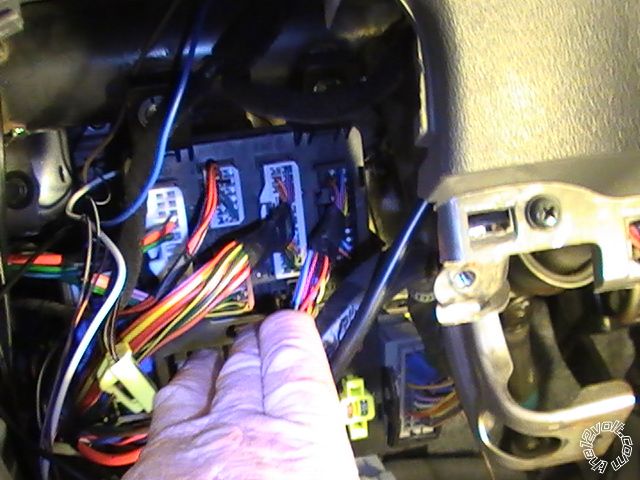

Second connector from right, 18 Pin, Gray, contains parking light wires. One for left and one for right. Also contains the brake wire.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

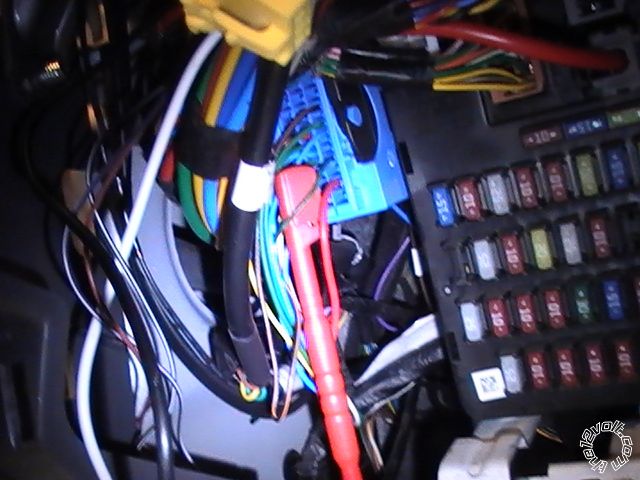

This Blue connector contains the AC Tach signal, Pin 32 as sown across the end of the probe. The horn wire is in the Pin 35 spot, above the AC Tach wire.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

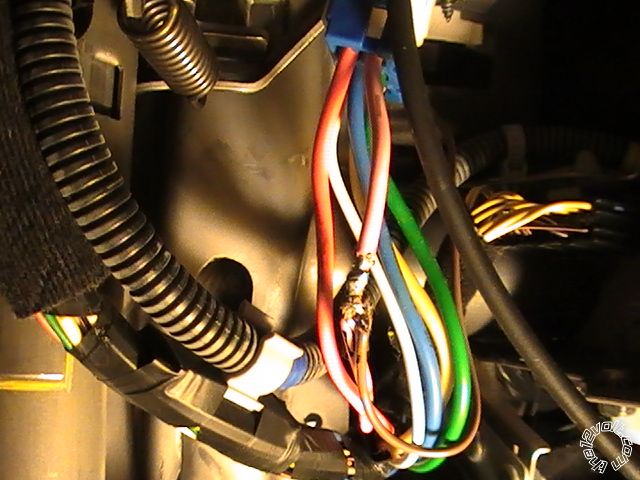

View of Ignition, 12 Volt, Starter, and Two Accessory wires at switch.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.

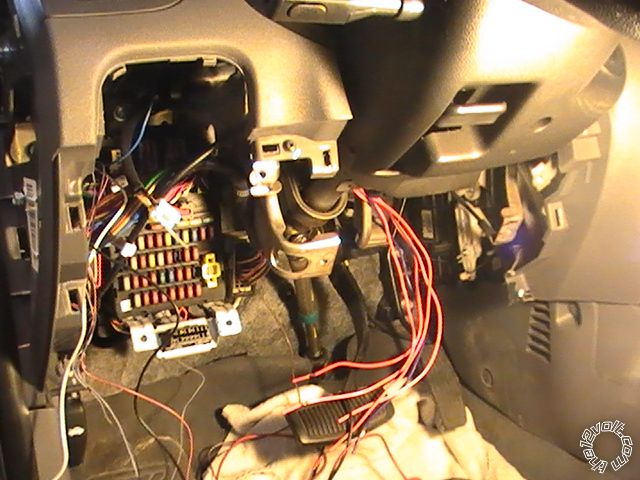

View of under dash with all panels removed. A bit tight to work in.
Scraped a 3 inch cut on my head from one of the lower edges near the center dash area.
2008 Kia Rio Clifford 20.7x Remote Start Pictorial -- posted image.
When all else fails, Read the Instructions
