diamond audio tdx/d9/hex pro

I can normally find information pretty easily, but this is kicking my butt. I was hoping someone here could help me. Does anyone have a pdf or a link for the Diamond t-line enclosure. I used to have it, but don't any longer and Diamond's site sucks now days. I have come across a D9 new in box, and want to resurrect my old setup, but need this box design to do so.

Nevermind. I finally found it with the way back machine.

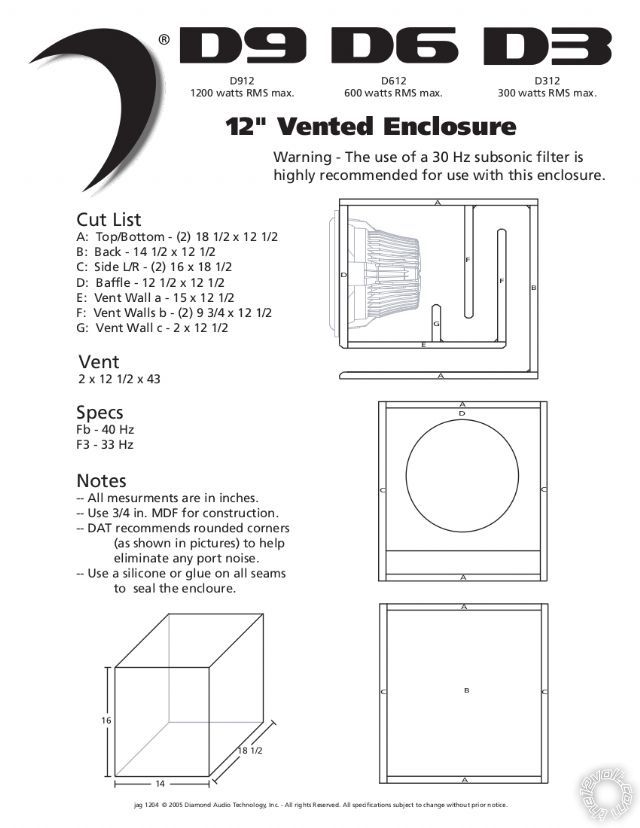

To make things easier for anyone else who may want this design.

looks like a typical ported box to me.... nice sub though i wish i could get my hands on one simply to have an all D9 system, i have a set of D9 components that sound awesome so i can only imagine what the sub must sound like in the right box.

It is. That's just how everyone I have talked to about it referred to it. It is by far still my favorite sub I have owned or worked with. Back when I was competing, I burped a 143.1 with it, while at the same time scoring mid-nineties in SQ. I did it using this box in a Grand Prix 4 door with the back seat up. Very accurate and could handle a ton of power. Only complaint, it has to be clean power, so your amps could get pricey. As a heads up, if you are a diamond dealer, they are clearing inventory right now, so now is a good time to grab one.
