horn output to siren


Post ReplyPost New Topic
< Prev Topic Next Topic >
jdm99prelude
Member - Posts: 9
Member spacespace
Joined: October 23, 2014
Location: Texas, United States
Posted: October 25, 2014 at 7:00 AM / IP Logged

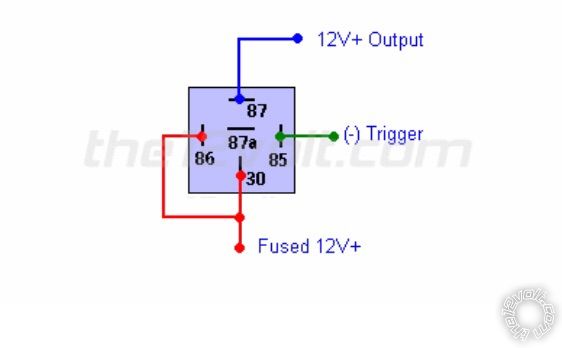

Can i use the horn (-) output with a relay to use a siren instead?horn output to siren -- posted image.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: October 25, 2014 at 4:01 PM / IP Logged
Yes but place a 14004 diode across 85 and 86, band to 86 as a relay squelch, otherwise relay on shutdown will check 200 volts down your horn trigger wire, if transistor or chip driven you've fried it!
catback
Silver - Posts: 703
Silver spacespace
Joined: August 13, 2002
Location: Canada
Posted: October 25, 2014 at 5:23 PM / IP Logged
While that circuit is functional, I am of the opinion what you seek won't work.
Horn outputs are pulsing outputs, siren outputs on the other hand are constant. So while connecting the siren to the horn output will generate sound it won't function in the manner you would expect.
What unit do you have that needs a siren but doesn't have an output for one?
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 25, 2014 at 7:57 PM / IP Logged
I see you have found the relay section on this site. There is a diagram for Pulsed to steady, that in conjunction with the one you posted will give you a more suitable siren output.
jdm99prelude
Member - Posts: 9
Member spacespace
Joined: October 23, 2014
Location: Texas, United States
Posted: October 26, 2014 at 1:40 PM / IP Logged
Thanks for all the reply, but i can change the horn option in programing to siren 20ms... Can i not? Its a viper 4105v...it just dont have a wire for siren and i dont like horn.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: October 26, 2014 at 1:46 PM / IP Logged
It won't sound right.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 26, 2014 at 4:50 PM / IP Logged
I see you have found the relay section on this site. There is a diagram for Pulsed to steady, that in conjunction with the one you posted will give you a more suitable siren output.
jdm99prelude
Member - Posts: 9
Member spacespace
Joined: October 23, 2014
Location: Texas, United States
Posted: October 27, 2014 at 8:59 AM / IP Logged

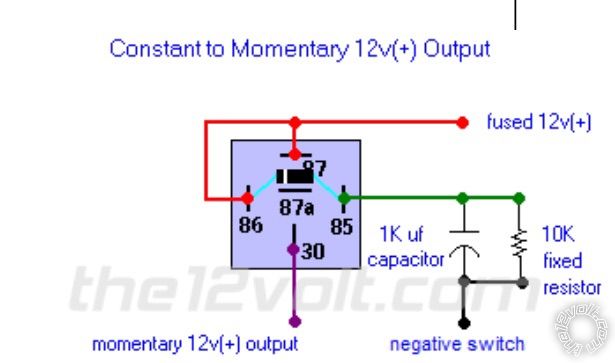

horn output to siren -- posted image. this the one u talking bout?
catback
Silver - Posts: 703
Silver spacespace
Joined: August 13, 2002
Location: Canada
Posted: October 27, 2014 at 9:14 AM / IP Logged
That's not the one, you want the opposite - momentary to constant. Is there a purpose or reason for this exercise?
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: October 27, 2014 at 9:17 AM / IP Logged
No just for the OP to practice cutting and pasting, surely there's a POS siren output on that unit?
