Hi All,

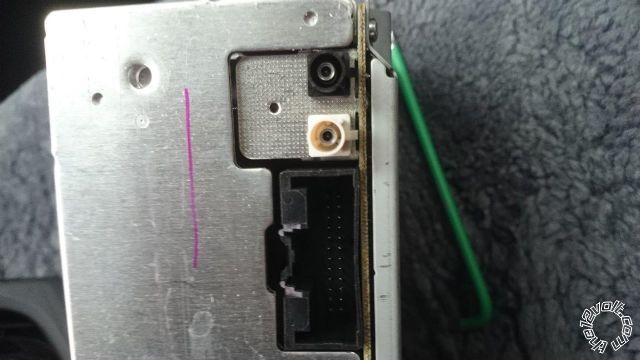

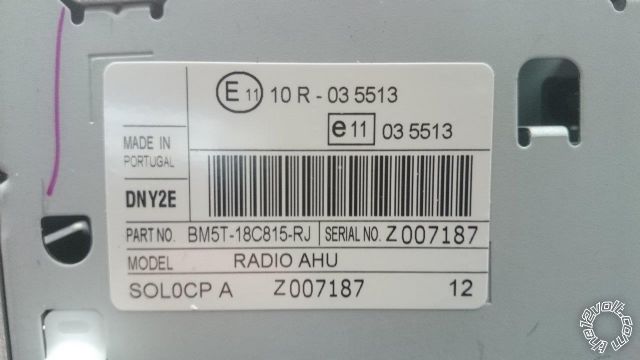

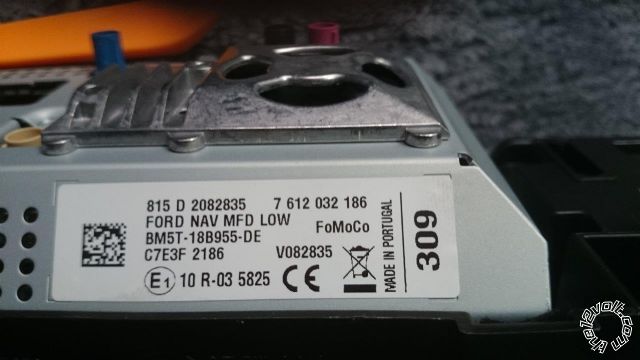

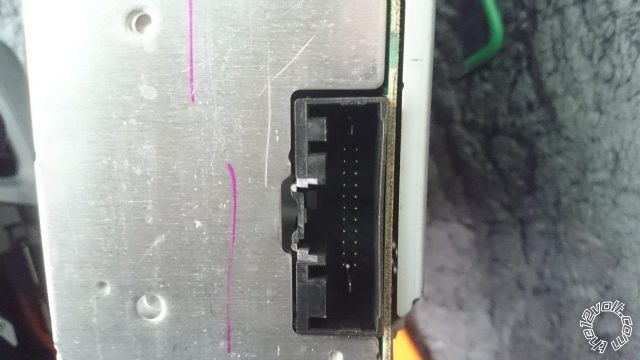

Does anyone know the pin configuration for the sony audio 24 pin and the display 10 pin etc. For below pictured units on my 2012 German build 31/05/2012 Australian compliance July 2012 (Note only the socket in img 55 is used on my model)
Pin Configuration LW Focus -- posted image.
Pin Configuration LW Focus -- posted image.
Pin Configuration LW Focus -- posted image.
Pin Configuration LW Focus -- posted image.
Pin Configuration LW Focus -- posted image.

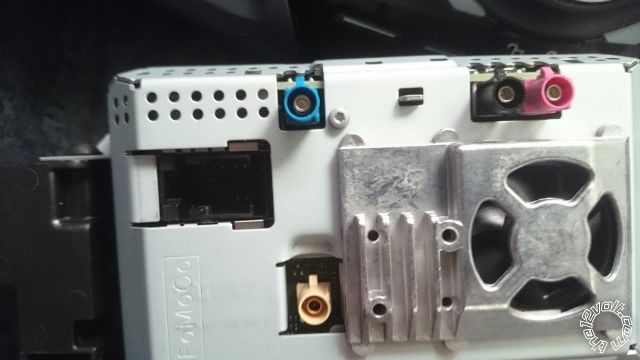

It would be great if some one knows what the three fakra plugs on back of display are for.
Thank you for any help
