2009 mazda6 remote start wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
skeetr
Member - Posts: 2
Member spacespace
Joined: January 20, 2015
Location: Minnesota, United States
Posted: January 22, 2015 at 12:38 PM / IP Logged
I have put together a list of all the wiring I think I know.
I would really appreciate a second look to see if I messed anything up.
I have a couple wires that I don't know where they should be connected.
Thanks in advance for your help!

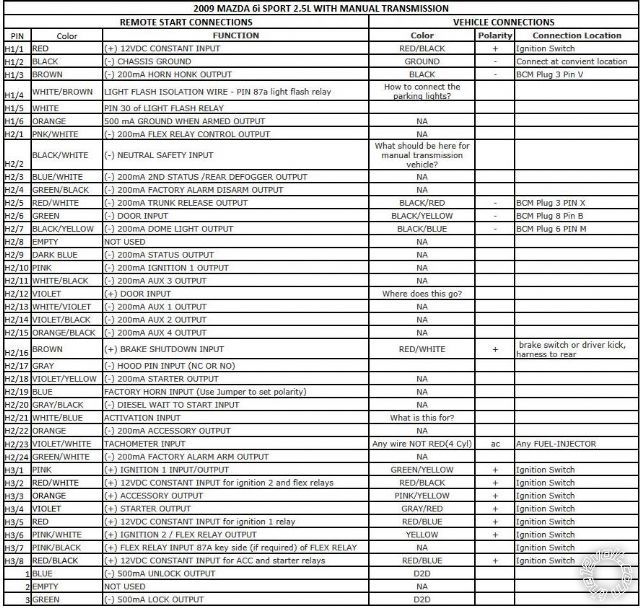

2009 mazda6 remote start wiring -- posted image.
skeetr
Member - Posts: 2
Member spacespace
Joined: January 20, 2015
Location: Minnesota, United States
Posted: January 22, 2015 at 2:58 PM / IP Logged
OK, Figured out this much:
Neutral Safety needs to be ground with E-brake set
Still in search of information on:
How to connect the parking lights?
What is the WHITE/ Blue Activation Input used for and where to connect?
What is the Violet (+)Door Input used for and where to connect?
Is it fine to use the Violet / YELLOW (-) Starter Output for the Clutch Bypass? (Mine should be negative)I will not be using a bypass relay, I will connect at the BLACK / YELLOW wire at the clutch pedal.

Sorry, you can NOT post a reply.
This topic is closed.
