the12volt`s installbay - Mobile Electronics Forums the12volt's install bay / Lights, Neon, LEDs, HIDs

Subject Topic: Flashing LED (Topic Closed Topic Closed)

Post ReplyPost New Topic
the12volt's install bay
Author
Message      << Prev Topic  |  Next Topic >>
techker
Copper
Copper

Joined: April 24, 2002
Location:
Canada
Posts: 71
Posted: December 20, 2003 at 8:17 AM - IP Logged

any body have a diagrame for flashing l.e.d?with or without a 555.
___________________________________
techker
Back to Top Search for other posts by techker
Hi Guest
Not a member?
Register

Already a member?
Sign In
Teken
Gold
Gold

Joined: August 04, 2002
Location:
Aruba
Posts: 1,511
Posted: December 20, 2003 at 12:29 PM - IP Logged

http://www.discovercircuits.com/PDF-FILES/ac14fls.pdf

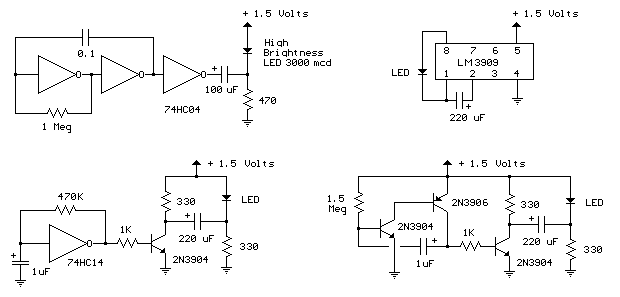

The LED flasher circuits below operate on a single 1.5 volt battery. The circuit on the upper right uses the popular LM3909 LED flasher IC and requires only a timing capacitor and LED.

The top left circuit, designed by Andre De-Guerin illustrates using a 100uF capacitor to double the battery voltage to obtain 3 volts for the LED.

Two sections of a 74HC04 hex inverter are used as a squarewave oscillator that establishes the flash rate while a third section is used as a buffer that charges the capacitor in series with a 470 ohm resistor while the buffer output is at +1.5 volts.

When the buffer output switches to ground (zero volts) the charged capacitor is placed in series with the LED and the battery which supplies enough voltage to illuminate the LED. The LED current is approximately 3 mA, so a high brightness LED is recommended.

In the other two circuits, the same voltage doubling principle is used with the addition of a transistor to allow the capacitor to discharge faster and supply a greater current (about 40 mA peak). A larger capacitor (1000uF) in series with a 33 ohm resistor would increase the flash duration to about 50mS. The discrete 3 transistor circuit at the lower right would need a resistor (about 5K) in series with the 1uF capacitor to widen the pulse width.
Back to Top Search for other posts by Teken
Teken
Gold
Gold

Joined: August 04, 2002
Location:
Aruba
Posts: 1,511
Posted: December 20, 2003 at 12:34 PM - IP Logged

Back to Top Search for other posts by Teken
Teken
Gold
Gold

Joined: August 04, 2002
Location:
Aruba
Posts: 1,511
Posted: December 20, 2003 at 12:36 PM - IP Logged

Back to Top Search for other posts by Teken
techker
Copper
Copper

Joined: April 24, 2002
Location:
Canada
Posts: 71
Posted: December 20, 2003 at 1:29 PM - IP Logged

wow ok!thx is there a easyer way? and is this for 12 volts?
___________________________________
techker
Back to Top Search for other posts by techker
Teken
Gold
Gold

Joined: August 04, 2002
Location:
Aruba
Posts: 1,511
Posted: December 20, 2003 at 2:50 PM - IP Logged

The last two schematics are the easier of the lot to make.

If you do not feel up to the task to fabricate such a circuit, then I would suggest that you drop by any electronic store and purchase a 12 volt flashing LED unit that start from $2.99 to $8.49.

Very simple 2 wire hook up. Would take most people aprox. 5 minutes to hook it all up, and drill a 1/4" hole in the place required.

Regards

EVIL Teken . . .
Back to Top Search for other posts by Teken
xetmes
Silver
Silver

Joined: May 18, 2003
Posts: 586
Posted: December 20, 2003 at 3:31 PM - IP Logged

there is the classic 555 astable as well, but as Teken said its usually just easier to get a flashing LED if possible...
Back to Top Search for other posts by xetmes
