93 mercedes 300 ce conv diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
almeida79
Member - Posts: 47
Member spacespace
Joined: August 11, 2003
Location: Massachusetts, United States
Posted: September 08, 2005 at 5:07 PM / IP Logged
Hi i'm looking for a wiring diagram 1993 mercedes 300ce convertible so i can install a keyless entry system. thanks
Jay
genehewett
Copper - Posts: 151
Copper spacespace
Joined: December 12, 2003
Location: Georgia, United States
Posted: September 14, 2005 at 7:48 PM / IP Logged

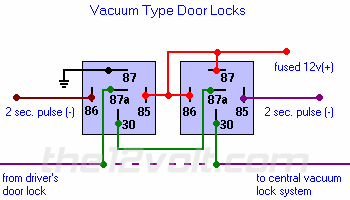

93 mercedes 300 ce conv diagram -- posted image.

12volts red   +  ignition harness -
Starter purple   +   access by pulling
Ignition pink/red   +   instrument cluster
Power Lock blue or green   E  either kick panel
Power Unlock blue or green   E
Notes: Blue wire located in 1/4* blk rubber tube with RED / wht and brown wires coming out of drivers door. Passenger side same except trigger wire is green. Pump located under rear seat on passenger side.
Lock Motor
Unlock Motor
Parking Lights+ gray, gray/white    lt. switch or alarm
Parking Lights-
Hazards
Turn Signal(L)
Turn Signal(R)
Door Trigger brn/gry,brn/gry/blk   -  see notes
Notes: Front doors are brn/gry-at right pin or alarm module located under passenger foot board. Rear doors are brn/gry/blk-at pin or alarm.
Dome Supervision
Trunk/Hatch Release
Power Sliding Door
Factory Alarm Arm yel/grn or yel/blue   -  door harness or alarm
Factory Alarm Disarm GREEN/ YELLOW   -  door harness or alarm
Disarm No Unlock
Horn Trigger BLACK / YELLOW/pink   +  st. column harness
