the12volt`s installbay - Mobile Electronics Forums the12volt's install bay / Lights, Neon, LEDs, HIDs

Subject Topic: Fog Light buzzer (Topic Closed Topic Closed)

Post ReplyPost New Topic
the12volt's install bay
Author
Message      << Prev Topic  |  Next Topic >>
LqDFx
Copper
Copper

Joined: July 10, 2004
Location:
Indiana,
United States
Posts: 69
Posted: January 21, 2006 at 4:29 AM - IP Logged

I am going to add aftermarket fog lights to my car. I want to find a way to wire in a buzzer so that when the car is off and I leave the fog lights on it buzzs. You know like it does for the stock lights?

I was thinking of something in the way of a relay hooked to the acc wire. When the acc wire has no power but the switch does it opens power to the buzzer. I am however baffeled about the exact wiring that would need to be done?


___________________________________
Sony XAV-A1 HU, RF P4004 AMP, RF P3001 AMP, 2 RF 10" P1S410 Subs, LA S2.35.2 Dash Speakers, LA S2.525.2 Door Speakers, RF FRC3268 Rear Speakers
Back to Top Search for other posts by LqDFx
Hi Guest
Not a member?
Register

Already a member?
Sign In
techguy688
Copper
Copper

Joined: November 07, 2004
Location:
United States
Posts: 58
Posted: January 21, 2006 at 9:24 AM - IP Logged

why not wire the 86 post(+ coil)of your relay to your fog light on/off switch, then to your ignition wire. this way the lights can only turn on when your ignition is in the on position, or when the vehicle is running and the fog light switch is on.. When you turn the ignition off it will drop power to the fog light circuit, turning the lights off when you park the car. I would rather have that than the annoying ding ding ding sound..
___________________________________
Just because you've done something for a long time doesn't mean you're any good at it.
Cable Ties Rock!
Back to Top Search for other posts by techguy688
firstrax
Copper
Copper

Joined: January 18, 2006
Posts: 118
Posted: January 21, 2006 at 10:23 AM - IP Logged

Simple, easy and fun.

Back to Top Search for other posts by firstrax
LqDFx
Copper
Copper

Joined: July 10, 2004
Location:
Indiana,
United States
Posts: 69
Posted: January 21, 2006 at 10:02 PM - IP Logged

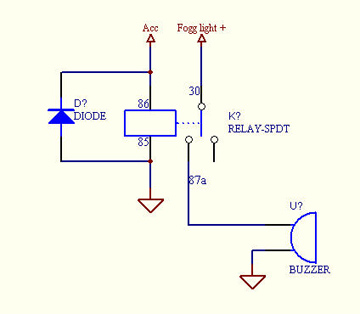

I could then in theroy use the acc on the stereo to trigger the coil in the relay then? I would use the switch (+) to pin 30 to provide power to the relay and when the car is off the N/C circuit would then have power when the fog lights are on and the buzzer would chime, right? I would still need to wire the fog lights to the relay under the hood to provide power to them so the switch would just Y off for power to both relays.

If I am right, you helped comfirm what I was thinking when I was brain storming on my diagram. Now I just have to find the buzzer!


___________________________________
Sony XAV-A1 HU, RF P4004 AMP, RF P3001 AMP, 2 RF 10" P1S410 Subs, LA S2.35.2 Dash Speakers, LA S2.525.2 Door Speakers, RF FRC3268 Rear Speakers
Back to Top Search for other posts by LqDFx
pbrr
Member
Member

Joined: May 21, 2004
Location:
United States
Posts: 5
Posted: February 18, 2006 at 6:18 PM - IP Logged

Boy, I'm with you Techguy688 (2 postas above), but that is what makes life interesting...different approaches to things. But read Techguy's post just once more. :)
___________________________________
pbr
Back to Top Search for other posts by pbrr
