radio works, cd don’t


Post ReplyPost New Topic
< Prev Topic Next Topic >
oldhippie1951
Member - Posts: 6
Member spacespace
Joined: December 13, 2010
Location: South Carolina, United States
Posted: December 13, 2010 at 11:03 AM / IP Logged
93' Ford Explorer XLT 4 door automatic
I had an AIWA stereo in the Explorer. It's getting old, CD skips. Bought a SONY CDX-GT55UIW. I was told that since I had a 3rd party unit already installed rather than the Ford factory, I could use the existing wire harness and would not have to buy another one.
New Sony radio works fine. CD works but no audio, you can see the track's and time count. A call to Sony said something about the antenna power wire but it went over my head. They directed me to the following web site:
SONY eSupport
Anyway, there is no power antenna on the Explorer.

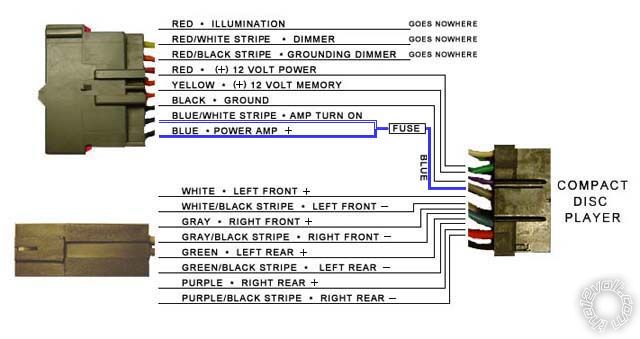

Following is my wiring harness diagram that worked fine with the AIWA. Can someone tell me what I need to change to get the CD to play in addition to the radio on the Sony?
radio works, cd don’t -- posted image.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: December 13, 2010 at 12:39 PM / IP Logged
You used the radio's blue wire, disconnect and insulate it, and connect the radio's Blue/White wire to the same vehicle wire you just took the blue off of.
oldhippie1951
Member - Posts: 6
Member spacespace
Joined: December 13, 2010
Location: South Carolina, United States
Posted: December 13, 2010 at 1:10 PM / IP Logged
i am an idiot wrote:
You used the radio's blue wire, disconnect and insulate it, and connect the radio's Blue/White wire to the same vehicle wire you just took the blue off of.
Say that one more time, real slow please. I'm pretty dense.
Thanks.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: December 13, 2010 at 2:47 PM / IP Logged

On your radio, is there a wire that is blue in color?

oldhippie1951
Member - Posts: 6
Member spacespace
Joined: December 13, 2010
Location: South Carolina, United States
Posted: December 13, 2010 at 3:59 PM / IP Logged
i am an idiot wrote:

On your radio, is there a wire that is blue in color?

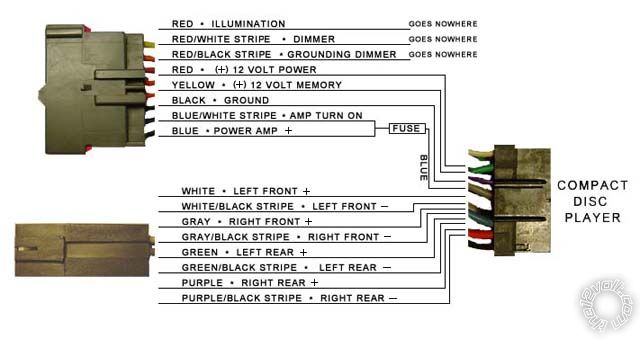

Yes, it goes to a fuse, then splits to a blue wire labeled POWER AMP + and blue with white stripe labeled AMP TURN ON
radio works, cd don’t -- posted image.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: December 13, 2010 at 9:27 PM / IP Logged

Does your radio have a wire that is Blue/White?

oldhippie1951
Member - Posts: 6
Member spacespace
Joined: December 13, 2010
Location: South Carolina, United States
Posted: December 14, 2010 at 6:53 AM / IP Logged
i am an idiot wrote:

Does your radio have a wire that is Blue/White?

Not on the radio plug but on the wire harness plug there is a BLACK/ White (shown as blue/white on my drawing) and a solid blue, butt connected together to the fuse holder, then goes to a blue wire on the disc player plug.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: December 14, 2010 at 1:29 PM / IP Logged
On the RADIO, there is a Blue/White wire, find it.   Or is there an empty slot next to the Blue wire?
oldhippie1951
Member - Posts: 6
Member spacespace
Joined: December 13, 2010
Location: South Carolina, United States
Posted: December 14, 2010 at 1:58 PM / IP Logged
i am an idiot wrote:
On the RADIO, there is a Blue/White wire, find it.     Or is there an empty slot next to the Blue wire?
No Blue/White wire on the RADIO plug. Yes, "empty slot" next to the Blue wire on the RADIO plug.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: December 14, 2010 at 3:46 PM / IP Logged
If the missing slot is between the blue wire and the grey wire, this means that you do not have an amplifier turn on wire on your radio harness.  Your only option is going to be to connect the fuse thing that ys off into 2 wires to the red wire of the radio.  This will power up the factory amp anytime the ignition switch is in the on or the acc position.    Or you could attempt to move the blue wire into the missing slot.
