viper 5906 + dball on mit outlander sports


Post ReplyPost New Topic
< Prev Topic Next Topic >
sckw
Member - Posts: 15
Member spacespace
Joined: February 04, 2015
Location: Malaysia
Posted: February 04, 2015 at 9:20 AM / IP Logged Link to Post Post Reply Quote sckw
Any one know how to install this two unit into my car? help pls?
sckw
Member - Posts: 15
Member spacespace
Joined: February 04, 2015
Location: Malaysia
Posted: February 04, 2015 at 9:26 AM / IP Logged Link to Post Post Reply Quote sckw

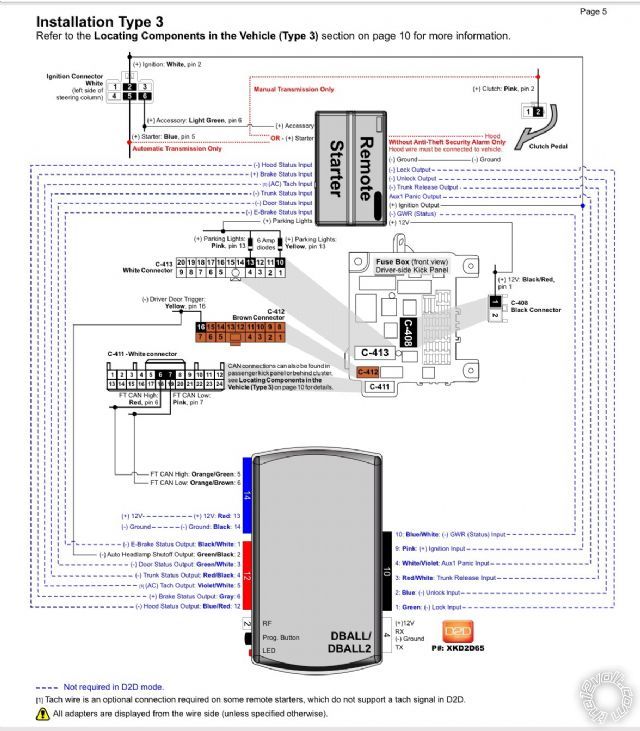

viper 5906 + dball on mit outlander sports -- posted image.
I found this from xpresskit.com but which is the (-)GWR Status wire on my 5906 viper alarm?
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: February 04, 2015 at 9:50 AM / IP Logged Link to Post Post Reply Quote tedmond
If using d2d no need for that wire, but if you plan to hardwire, the wire is BLUE (-) Status output on the viper
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
sckw
Member - Posts: 15
Member spacespace
Joined: February 04, 2015
Location: Malaysia
Posted: February 05, 2015 at 4:27 AM / IP Logged Link to Post Post Reply Quote sckw
tedmond wrote:
If using d2d no need for that wire, but if you plan to hardwire, the wire is BLUE (-) Status output on the viper
Hello, if i plug in the 4 pin d2d port with my viper alarm and the dball module so i dun need to link all the blue dash line? so just wired up all the black line that shown in the diagram ? correct me if im wrong. thank you
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: February 05, 2015 at 3:20 PM / IP Logged Link to Post Post Reply Quote tedmond
all blue dotted lines are not required when in d2d. just wire anything you see listed as solid
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
sckw
Member - Posts: 15
Member spacespace
Joined: February 04, 2015
Location: Malaysia
Posted: February 06, 2015 at 3:46 AM / IP Logged Link to Post Post Reply Quote sckw
tedmond wrote:
all blue dotted lines are not required when in d2d. just wire anything you see listed as solid
okay thanks mate :)
sckw
Member - Posts: 15
Member spacespace
Joined: February 04, 2015
Location: Malaysia
Posted: February 08, 2015 at 9:18 AM / IP Logged Link to Post Post Reply Quote sckw
tedmond wrote:
all blue dotted lines are not required when in d2d. just wire anything you see listed as solid
Hi mate, do i need to used any relay to install the remote start function for my vehicle?
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: February 08, 2015 at 8:03 PM / IP Logged Link to Post Post Reply Quote tedmond
when i did a 2011 fast key, only one relay was needed to disable the proximity sensor. If you only have a regular key, no relays are needed
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
sckw
Member - Posts: 15
Member spacespace
Joined: February 04, 2015
Location: Malaysia
Posted: February 09, 2015 at 2:05 AM / IP Logged Link to Post Post Reply Quote sckw
tedmond wrote:
when i did a 2011 fast key, only one relay was needed to disable the proximity sensor. If you only have a regular key, no relays are needed
my outlander sports are 2014 model with keyless operation... so do i still need a relay?
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: February 09, 2015 at 8:09 AM / IP Logged Link to Post Post Reply Quote tedmond
push to start - follow correct pts guide
regular key - no
Fast Key(proximity key) - yes
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
