Driveway gate wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
ricsol
Member - Posts: 2
Member spacespace
Joined: March 19, 2015
Location: Ontario, Canada
Posted: March 19, 2015 at 9:16 AM / IP Logged Link to Post Post Reply Quote ricsol
Hello, new to the forum, but have used this site for years for its wealth of information. I'm trying to wire a 12vdc gate for my driveway. Entering the driveway I have a reversing momentary rocker switch that opens and closes the gate..I also have hooked up a wireless remote to do the same. The remote will work on its own, but when I use the rocker, the power seems to bypass the actuator for the gate. 12vdc at the gate..power feeds remote module, and goes to switch, then out of switch back to gate. Any thoughts? Diode? Relay?
oldspark
Gold - Posts: 4,913
Gold spacespace
Joined: November 03, 2008
Location: Australia
Posted: March 19, 2015 at 12:04 PM / IP Logged Link to Post Post Reply Quote oldspark
Without any circuit to go by, I'd suggest the rocker actuate the same relays that the remote uses. (That might require diodes.)
ricsol
Member - Posts: 2
Member spacespace
Joined: March 19, 2015
Location: Ontario, Canada
Posted: March 19, 2015 at 4:05 PM / IP Logged Link to Post Post Reply Quote ricsol
Unfortunately, the module for the remote is a potted circuit board. Can't get to the relays. I just don't understand why they can't be used hooked up together. One will only be used at once.
oldspark
Gold - Posts: 4,913
Gold spacespace
Joined: November 03, 2008
Location: Australia
Posted: March 19, 2015 at 5:04 PM / IP Logged Link to Post Post Reply Quote oldspark
That's why a circuit diagram is so desirable.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: March 25, 2015 at 7:17 PM / IP Logged Link to Post Post Reply Quote hotwaterwizard
I suggest another switch or relay to deactivate the Toggle when the remote is used.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: March 25, 2015 at 7:50 PM / IP Logged Link to Post Post Reply Quote hotwaterwizard

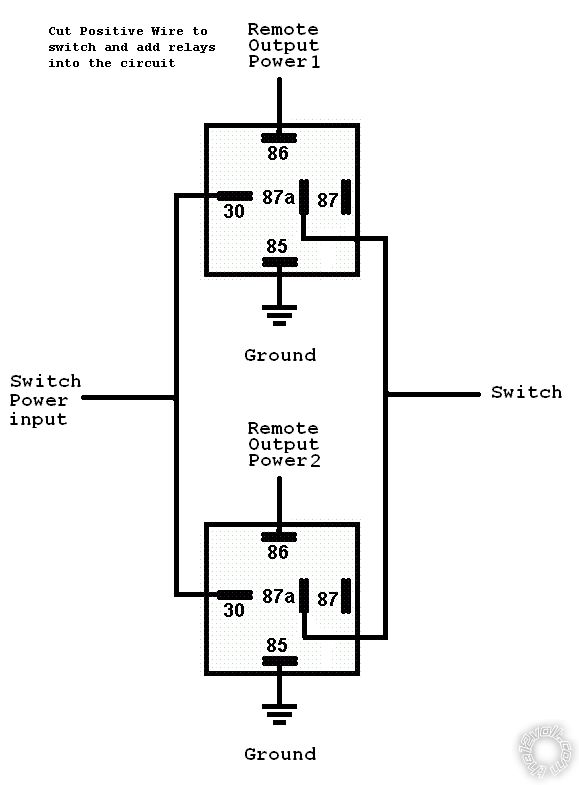

Here is what I came up with. A real digram of your wiring would hel[p alot..

Driveway gate wiring -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
