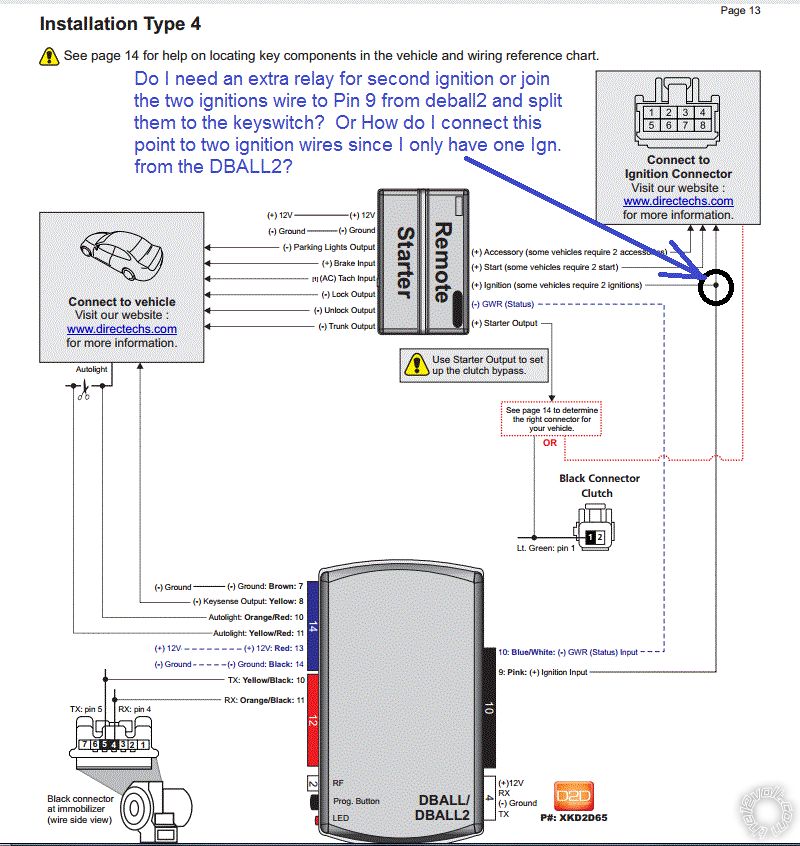

How do I connect this part? Question in the diagram in blue ink. Tundra 2009 standard key and 4706V with Dball2

Remote start for Tundra 2009 -- posted image.

Search for other posts by jacky_needhelp

kreg357

Platinum - Posts: 7,783

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: March 23, 2015 at 7:00 AM / IP Logged

The actual, power supplying, ignition source during a remote start is the R/S brain, not the DB-ALL2. You would use the Vipers

thick Pink/White IGN2 output wire to power the Tundra's IGN2 wire. The DB-ALL2 uses that ignition feed shown as an input only.

So, Viper thick Pink to Tundra IGN1 and DB-ALL2. Viper Pink/White to Tundra IGN2.

Soldering is fun!

jacky_needhelp

Member - Posts: 15

Joined: March 23, 2015

Posted: March 23, 2015 at 7:06 AM / IP Logged

According to what I understand:

Viper thick Pink connecting to DB-Ball 2 and then to the Tundra IGN 1 as shown in the diagram.

The Pink/White go directly to the Ign 2 of the Tundra with no connection to the Dball2

jacky_needhelp

Member - Posts: 15

Joined: March 23, 2015

Posted: March 23, 2015 at 7:11 AM / IP Logged

Confirm please

kreg357

Platinum - Posts: 7,783

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: March 23, 2015 at 7:12 AM / IP Logged

That is correct. The diagram is somewhat generic. Some Toyota's will have two Starter wires and only one Ignition wire, some have two of each, etc.

Soldering is fun!

jacky_needhelp

Member - Posts: 15

Joined: March 23, 2015

Posted: March 23, 2015 at 7:23 AM / IP Logged

Terrific.

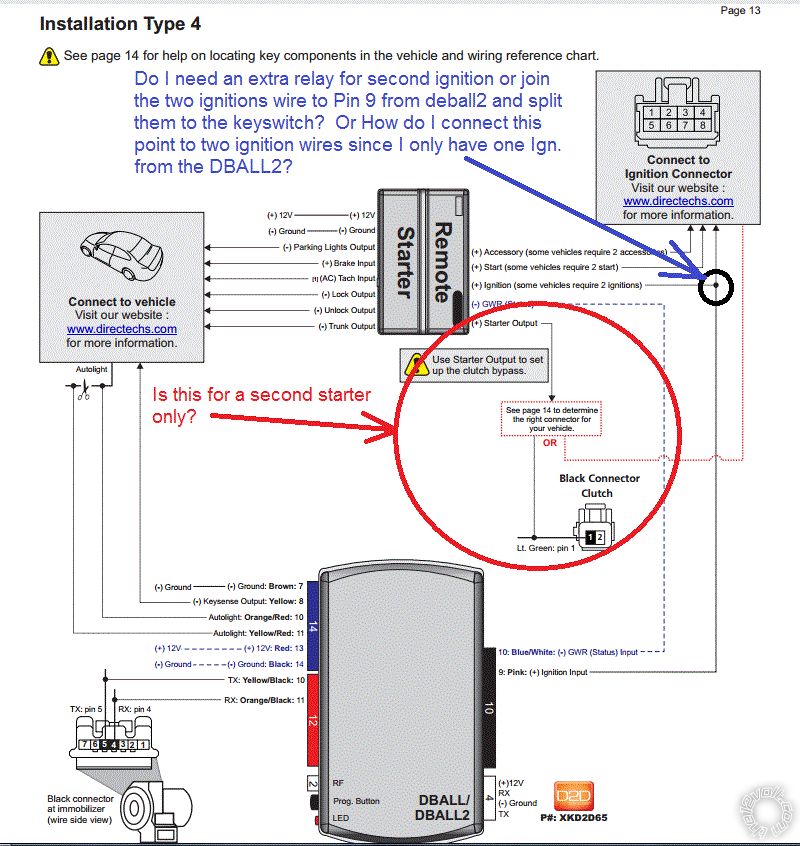

What about his one in the red Ink? I know second starter will need a relay. Is the one that I circled with the red circle consider the second starter connection?

I haven't got the RS unit or the DBALL2 nor looking at the car yet.

jacky_needhelp

Member - Posts: 15

Joined: March 23, 2015

Posted: March 23, 2015 at 7:26 AM / IP Logged

Or Is that for Manual Transmission only?

kreg357

Platinum - Posts: 7,783

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: March 23, 2015 at 7:31 AM / IP Logged

The 2009 Tundra has two Ignition wires, one Starter wire and one Accessory wire. That connection to the clutch interlock switch is only necessary if you have a manual transmission.

Soldering is fun!

jacky_needhelp

Member - Posts: 15

Joined: March 23, 2015

Posted: March 23, 2015 at 7:41 AM / IP Logged

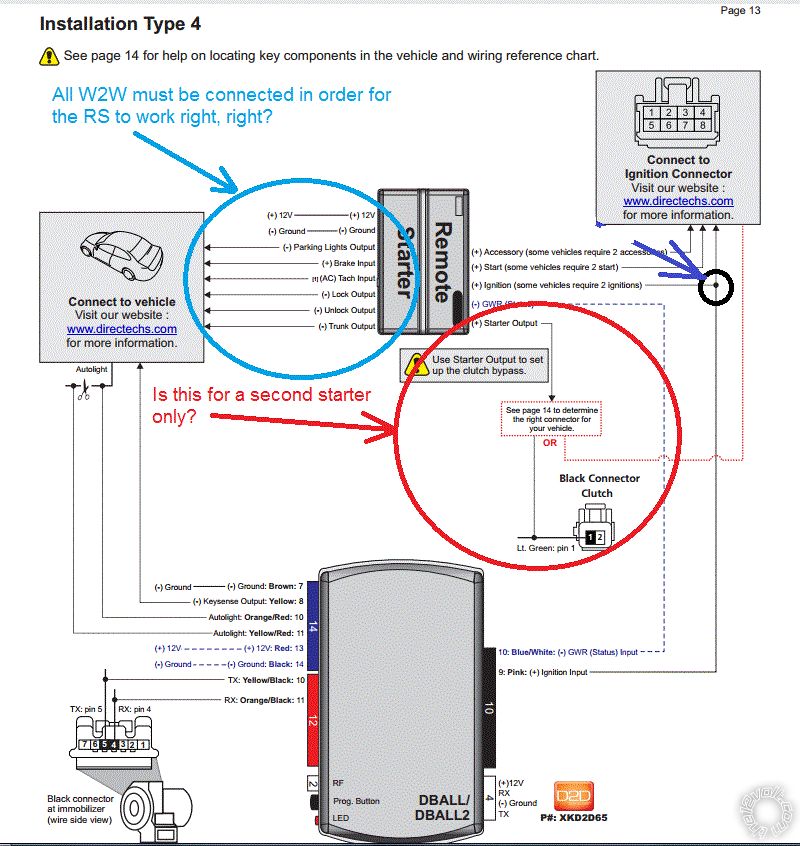

Sorry one more question: In the light blue circle.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: March 23, 2015 at 8:10 AM / IP Logged

Yes. On your diagram the solid wires only when using D2D, all the wires shown solid and dotted when using W2W.
