Hello!

Ive got a aftermarket alarm kit and an aftermarket central door lock kit laying around and i thought i would put it in my car, but i dont really want to have 2 keys i need to press each time to unlock and shut off alarm...

So im guessing theres a way to connect the 2 kits so i can use them with one key, i suck at this so i gotta ask you guys!

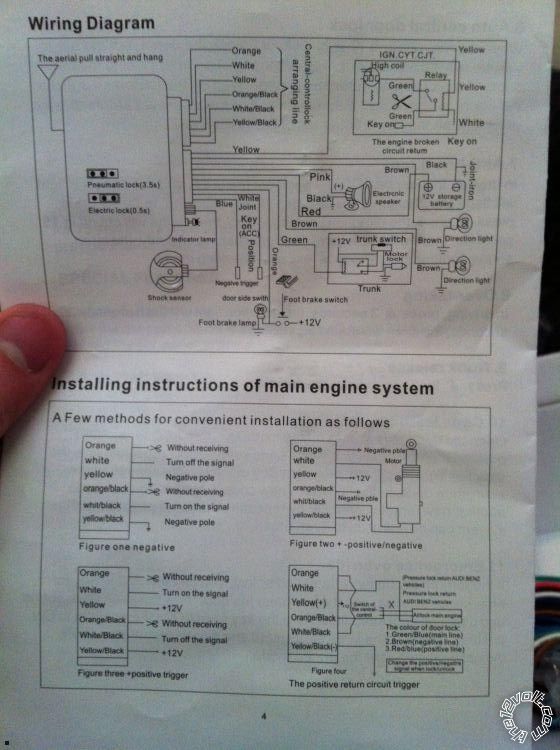

Heres the instructions for the two kits, the central lock kit doesnt say much i guess but thats all that came with it

Connect aftermarket alarm to central door locks -- posted image.

joakimahl93

Member - Posts: 4

Joined: March 25, 2015

Location: Sweden

Posted: March 25, 2015 at 12:36 PM / IP Logged

Im not sure why i cant see the second photo i added but heres the picture web adress! :)

http://www.volkswagengolf.se/album_pic.php?pic_id=31610

tedmond

Gold - Posts: 4,610

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 06, 2007

Location: Ontario, Canada

Posted: March 25, 2015 at 1:02 PM / IP Logged

what vehicle?

Ted

2nd Year Tier 1 Medical School

Still installing as a hobby...pays for groceries

Compustar Expert

smokeman1

Platinum - Posts: 1,588

This member has made a donation to the12volt.com. Click here for more info.

Joined: September 14, 2009

Location: Wisconsin, United States

Posted: March 25, 2015 at 1:09 PM / IP Logged

Does you car already have power locks? or are you adding the actuators?

When all else fails, Read the Instructions

Support the12volt.com Make a Donation

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: March 25, 2015 at 1:22 PM / IP Logged

Re Ted's comment, there are about 12 ways to control central locking. Assuming an existing system, vehicle make, model and year please.

joakimahl93

Member - Posts: 4

Joined: March 25, 2015

Location: Sweden

Posted: March 25, 2015 at 1:25 PM / IP Logged

oh im sorry!

The vehicle is a vw golf mk1 1983

so it does not have alarm or central door lock or anything from the beginning!

smokeman1

Platinum - Posts: 1,588

Joined: September 14, 2009

Location: Wisconsin, United States

Posted: March 25, 2015 at 1:48 PM / IP Logged

It looks like to me, from your alarm

Orange & Orange /Black to ground

Yellow & Yellow/Black to 12 volts constant

White to White on Central Door Lock Kit

WHITE/ Black to Brown on Central Door Lock Kit

Central Door Lock Kit needs 12 volts constant and Ground.

If system locks when it should unlock, reverse the White and WHITE/ Black connections on the White and Brown wires.

How about it Howie or Ted

When all else fails, Read the Instructions

Support the12volt.com Make a Donation

tedmond

Gold - Posts: 4,610

Joined: January 06, 2007

Location: Ontario, Canada

Posted: March 25, 2015 at 3:11 PM / IP Logged

looking at the diagram of the keyless unit, i believe it's:

orange & ORANGE / black - 87a

white & WHITE/ black - 30

yellow & yellow/black - 87

so you would need to ground yellow & yellow/black, snip and do not use ORANGE / orange black. The white and WHITE/ black will go to your actuator kit (brown and white)

Ted

2nd Year Tier 1 Medical School

Still installing as a hobby...pays for groceries

Compustar Expert

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: March 25, 2015 at 3:16 PM / IP Logged

Wired as diagram two or get a complete motor kit from the leading Italians, SAL or MES includes timer relay and driver door lock control, then wire as per diagram 1.

tedmond

Gold - Posts: 4,610

Joined: January 06, 2007

Location: Ontario, Canada

Posted: March 25, 2015 at 3:34 PM / IP Logged

Howie, he does have an actuator kit in post 2. Had to visit the website.

Ted

2nd Year Tier 1 Medical School

Still installing as a hobby...pays for groceries

Compustar Expert
