Viper 5706v Failsafe Starter kill


Post ReplyPost New Topic
< Prev Topic Next Topic >
kreyzie
Member - Posts: 22
Member spacespace
Joined: March 26, 2015
Location: Hong Kong
Posted: April 07, 2015 at 3:58 AM / IP Logged Link to Post Post Reply Quote kreyzie
Im not sure if i need a relay for this to work or it has one built into the viper brain. With the system armed , i can just crank my car and start driving it with the siren triggered... am i missing something ?
kreyzie
Member - Posts: 22
Member spacespace
Joined: March 26, 2015
Location: Hong Kong
Posted: April 07, 2015 at 4:03 AM / IP Logged Link to Post Post Reply Quote kreyzie
my alarm is viper 5706v. remote start with pkall , dei 508d , arm disarm..everything works fine. and yes i did cut off the starter wire and wired it to the individual wire to the brain.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 07, 2015 at 6:22 AM / IP Logged Link to Post Post Reply Quote howie ll
Cut starter wire H3 green to key side, H3 violet (purple) to starter side.
kreyzie
Member - Posts: 22
Member spacespace
Joined: March 26, 2015
Location: Hong Kong
Posted: April 07, 2015 at 9:52 AM / IP Logged Link to Post Post Reply Quote kreyzie
did that already or the remote start wont work and failsafe is not working. im still able to crank my car with alarm armed.
pentavolvo
Copper - Posts: 241
Copper spacespace
Joined: September 30, 2003
Location: United States
Posted: April 11, 2015 at 10:18 AM / IP Logged Link to Post Post Reply Quote pentavolvo
Year make and model of car
kreyzie
Member - Posts: 22
Member spacespace
Joined: March 26, 2015
Location: Hong Kong
Posted: April 17, 2015 at 4:26 AM / IP Logged Link to Post Post Reply Quote kreyzie
Honda Fit 2006 JDM
BTW ive put in 2 relays to make failsafe work. 1 is to kill the starter with GWA and 1 is to kill GWA with GWR when doing remote start.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 19, 2015 at 6:18 AM / IP Logged Link to Post Post Reply Quote howie ll
Disconnect the H3 violet and green from the vehicle, using your DMM test continuity.
Should read less than 1 ohm.
Now turn on the ignition, should read open circuit.
If still continuity then the unit (internal relay) is faulty.
If it does read open circuit, you've made an error.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 19, 2015 at 6:37 AM / IP Logged Link to Post Post Reply Quote howie ll

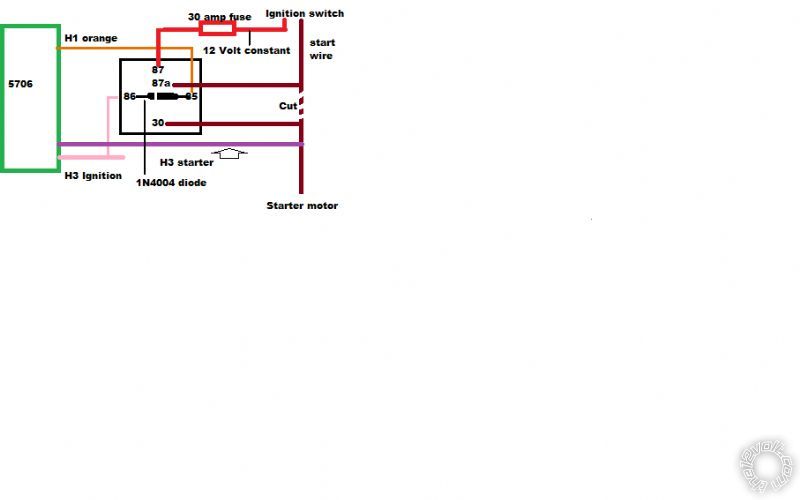

You only need one relay:-
The above is a work around if the internal relay is faulty.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 19, 2015 at 6:39 AM / IP Logged Link to Post Post Reply Quote howie ll
Also make sure orange at H1 DOES go to ground when unit is armed.
kreyzie
Member - Posts: 22
Member spacespace
Joined: March 26, 2015
Location: Hong Kong
Posted: April 22, 2015 at 10:19 PM / IP Logged Link to Post Post Reply Quote kreyzie
i dont really get your relay diagram.. when the relay is trigger (alarm armed) , why is the starter is connected to the ignition/12v constant ?
