gomotomoto

Member - Posts: 2

Joined: November 24, 2015

Location: New Jersey, United States

Posted: November 24, 2015 at 9:11 AM / IP Logged

I purchased a simple remote central lock system and having trouble getting power to the door actuators.

Originally, they were working (actuators are new) and hooked up to an alarm system that has been removed. The door actuators are still in place. All four door actuators seem to be going into a pigtail and I see a blue and a green lead that was cut.

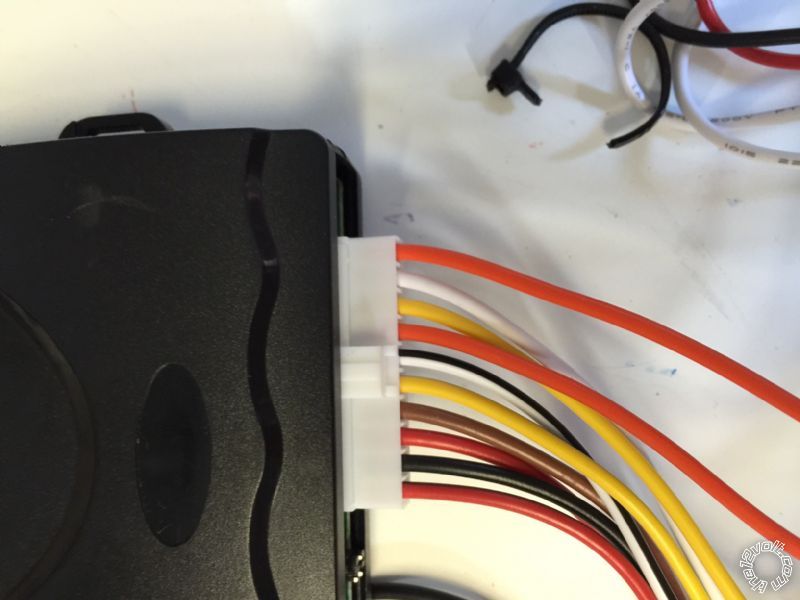

I know the black and red wires go to my battery (and I hear them getting power and responding to the remote) but I can not figure out which wires to use from the harness to power the actuators.

Can anyone lend a hand?

Back to Top

gomotomoto

Member - Posts: 2

Joined: November 24, 2015

Location: New Jersey, United States

Posted: November 24, 2015 at 9:12 AM / IP Logged

this is what I bought:

http://www.amazon.com/gp/product/B006QH9C5A?psc=1&redirect=true&ref_=oh_aui_detailpage_o01_s00

Back to Top

smokeman1

Platinum - Posts: 1,588

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: September 14, 2009

Location: Wisconsin, United States

Posted: November 24, 2015 at 3:14 PM / IP Logged

Try putting the White to the Blue lead, WHITE/ Black to the Green lead.

Yellow and Yellow/Black to chassis ground

When all else fails, Read the Instructions
