I have a 97 Subaru Forester T/tb Japanese (ej20 turbo engine)
Iam looking for:
a) RPM (tacho) signal wire
and
b) Ignition (12V) signal wire
Engine compartment wires, ECU pins,
and any wiring diagrams will be very helpful.
thanks
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: February 13, 2016 at 11:07 AM / IP Logged Link to Post Post Reply Quote geepherder
for 1998:
https://www.the12volt.com/installbay/alarmdetail/1970.html
http://readyremote.com/main.asp?action=select&yr=2411&product=Remote%20Start&make=Subaru&model=Forester#
My ex once told me I have a perfect face for radio.
chris130
Member - Posts: 6
Member spacespace
Joined: February 13, 2016
Location: Cyprus
Posted: February 13, 2016 at 12:04 PM / IP Logged Link to Post Post Reply Quote chris130

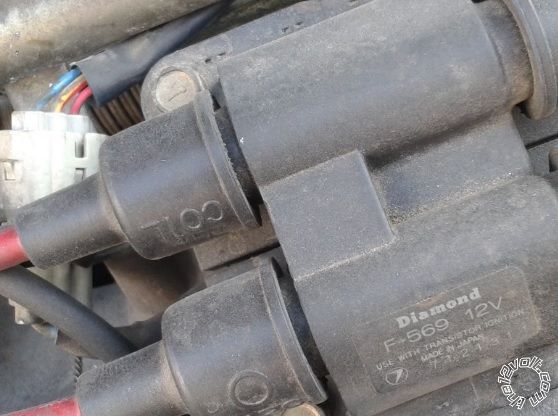

my forester's coil pack has only 3 wires. Any idea which one to use for tacho signal? attached photoAutogas 97 Forester -- posted image.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: February 14, 2016 at 12:10 AM / IP Logged Link to Post Post Reply Quote geepherder
You'll need to probe and see. Set your multimeter do AC voltage, black lead to ground, red lead to suspect wire. Start the engine. Your voltage will vary with engine speed.
My ex once told me I have a perfect face for radio.
chris130
Member - Posts: 6
Member spacespace
Joined: February 13, 2016
Location: Cyprus
Posted: February 14, 2016 at 5:37 AM / IP Logged Link to Post Post Reply Quote chris130
Measured with multimeter
1) RED / green wire - It seems that we found rpm signal
0.5 VAC to 2.0 VAC (idle - accelaration).
Is it an acceptable range or it doesnt matter?
2) light blue wire
Gives 12VDC when the switch turn to ignition position.
3) yellow/red wire should be the ground
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: February 14, 2016 at 9:01 PM / IP Logged Link to Post Post Reply Quote geepherder
That'll work. Hook it up and reward yourself with a beverage.
My ex once told me I have a perfect face for radio.
chris130
Member - Posts: 6
Member spacespace
Joined: February 13, 2016
Location: Cyprus
Posted: February 20, 2016 at 2:08 PM / IP Logged Link to Post Post Reply Quote chris130
Hello
thank you so much for your help
I have another question in case you know.

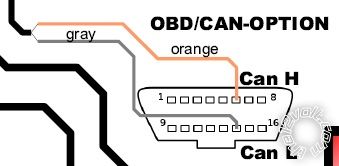

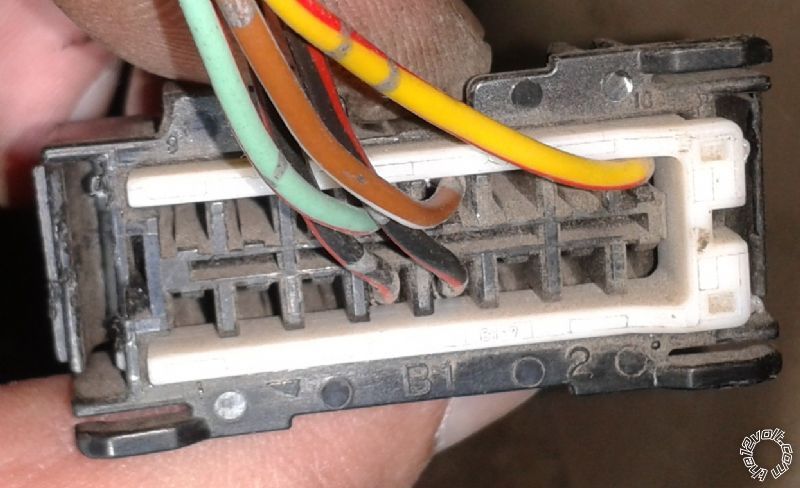

Im trying to connect GAS ECU wires (optional) to OBD/CAN (6 & 14 pin).
Are there any different kinds of OBD II ? i dont have any wires on 6 & 14 pin of the OBD plug.
thanks
Autogas 97 Forester -- posted image.
Autogas 97 Forester -- posted image.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: February 21, 2016 at 7:42 AM / IP Logged Link to Post Post Reply Quote geepherder
Yes there are different protocols for OBD II, but your vehicle predates the CAN bus systems. I wouldn't your factory pinout though.
