Single wire door locks on Mazda 626


Post ReplyPost New Topic
< Prev Topic Next Topic >
mcnugget
Member - Posts: 17
Member spacespace
Joined: March 25, 2016
Location: Minnesota, United States
Posted: March 30, 2016 at 8:44 PM / IP Logged Link to Post Post Reply Quote mcnugget
I have a 1994 Mazda 626 ES V6 without keyless entry. It has 3 power door locks and the driver's door is operated by the key. The key switch has one wire that is always 12+, one wire that is always ground and one wire that is +12v lock, ground unlock and infinite resistance at rest.
I already added a 4th door lock actuator and wires it in so it fires with the rest of them. How do I get my Viper 5900 lock/unlock hooked up to this? If I give the third wire +12v the doors lock, if I give it ground, they unlock. There is a (+)Lock/(-)Unlock wire on the alarm but it doesn't work. I'm guessing it needs more current so I need a relay. I just don't know how to wire a relay for that.
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: March 31, 2016 at 1:06 AM / IP Logged Link to Post Post Reply Quote kreg357

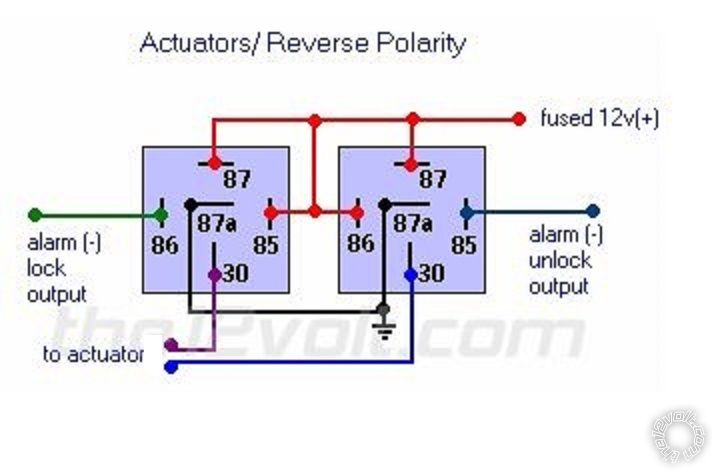

Actually, you will need two relays.  Use the Vipers lock and unlock output.  Place a 1N4001 diode in each output wire, band

towards the Viper and connect these outputs to the wires shown in the diagram below.

Single wire door locks on Mazda 626 -- posted image.

Soldering is fun!
mcnugget
Member - Posts: 17
Member spacespace
Joined: March 25, 2016
Location: Minnesota, United States
Posted: March 31, 2016 at 4:10 PM / IP Logged Link to Post Post Reply Quote mcnugget
Thanks. I found a 5 pack of relays with pigtail sockets for $12.50 on amazon so I'll wire this up as soon as they come.
mcnugget
Member - Posts: 17
Member spacespace
Joined: March 25, 2016
Location: Minnesota, United States
Posted: April 05, 2016 at 8:55 PM / IP Logged Link to Post Post Reply Quote mcnugget
kreg357 wrote:

Actually, you will need two relays.  Use the Vipers lock and unlock output.  Place a 1N4001 diode in each output wire, band

towards the Viper and connect these outputs to the wires shown in the diagram below.

<IMG src="https://www.the12volt.com/installbay/uploads/275_locks.jpg">

The diodes go in the Viper lock/unlock wires or the purple and blue 'to actuator' lock/unlock wires?
Then the purple and blue 'to actuator' wires both go to my single wire from the door lock switch?
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: April 06, 2016 at 3:58 AM / IP Logged Link to Post Post Reply Quote kreg357

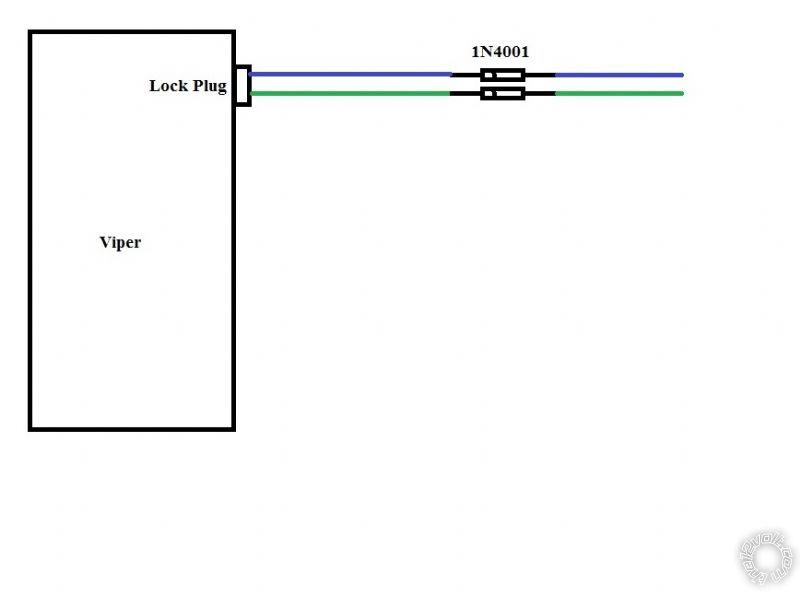

The diodes are added into the Blue and Green (-) door locks output wires from the Viper.  See diagram below :

Single wire door locks on Mazda 626 -- posted image.

Not sure how you have the added Drivers' door lock solenoid wired up but, see diagram below :

Single wire door locks on Mazda 626 -- posted image.

Soldering is fun!
mcnugget
Member - Posts: 17
Member spacespace
Joined: March 25, 2016
Location: Minnesota, United States
Posted: April 06, 2016 at 7:53 AM / IP Logged Link to Post Post Reply Quote mcnugget
Thanks Kreg. I guess I was approaching this the hard way. Your diagram just drives my added door lock actuator and then the factory power locks do the rest, no changes needed. Got it.
mcnugget
Member - Posts: 17
Member spacespace
Joined: March 25, 2016
Location: Minnesota, United States
Posted: June 05, 2016 at 6:35 PM / IP Logged Link to Post Post Reply Quote mcnugget
Thanks, that works perfectly. I know it took me a long time to install, but the car is already 22 years old so no rush!
