ixvolt

Member - Posts: 3

Joined: April 13, 2016

Posted: April 13, 2016 at 8:14 AM / IP Logged

I received this as a gift and I would like to just install the remote start only feature for this unit! It would be installed in an 05 Silverado for which I have the wiring diagram. I would appreciate any information I can get with regards to which wiring needs to be installed for the remote start only to function! I am not interested in the keyless entry or C3 teleport features as I would use the factory keyless and the phone feature of my in dash GPS unit. I know that all the wires for the 6 pin connector most likely have to be connected but would like to know which wires for the 5 pin and 14 pin absolutely need to be connected and if there is a need for any relays? Autopage specifies this unit as a "Professional Install". However, if I know which wires are only required and the vehicle locations for terminations for the remote start feature only, I can do this.

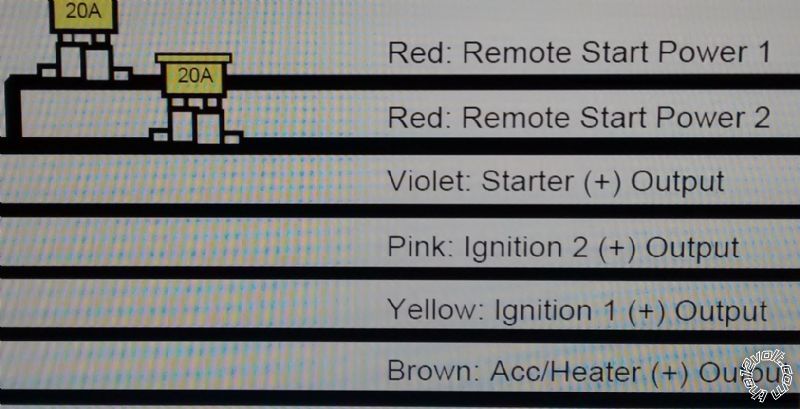

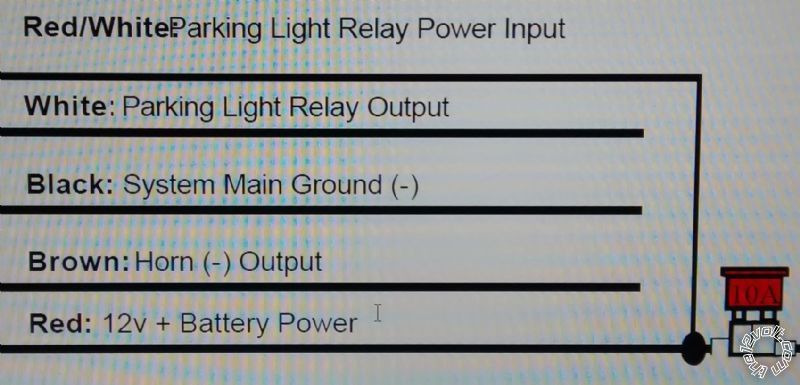

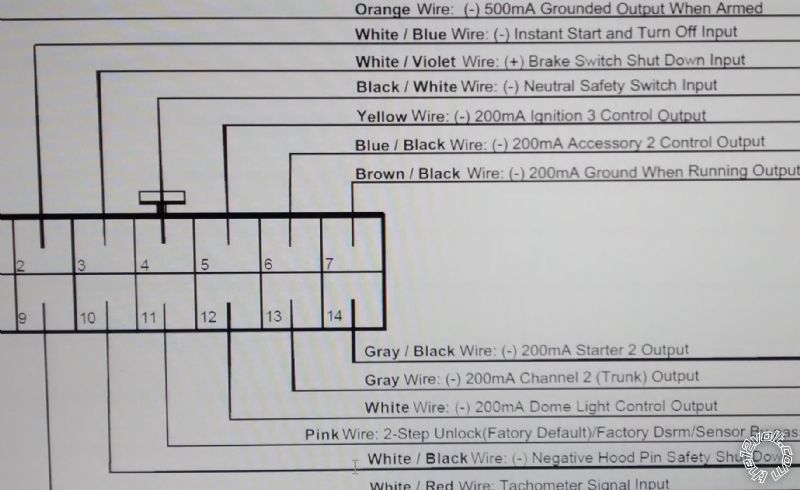

I have attached pictures of the of the 5 pin, 6 pin and 14 pin harnesses from the Quick Start Installation Guide for the unit.

Thanks in advance for your help.
