2016 Ford Escape door trigger n.c

Home / the12volt's Install Bay / Car Security and Convenience / 2016 Ford Escape door trigger n.c

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

desh187

Copper - Posts: 310

This member has made a donation to the12volt.com. Click here for more info.

Joined: September 13, 2002

Location: Canada

Posted: April 23, 2016 at 11:00 AM / IP Logged

Installed an Omega Proline keyless upgrade alarm and used domelight wire but alarm gives false triggers even with a relay.

Now i got all the individual door pin wires which are n.c and requires two 1amp diodes and a 10k resistor in between getting 12 volts.

I installed the above but opening any door doesnt set off alarm.Now my question is,do i need to cut each door pin wire to attach diodes or just solder them on as instructions dont mention cutting and thats what i did.

Thanks for any feedback

Back to Top

kreg357

Platinum - Posts: 7,783

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: April 24, 2016 at 7:02 AM / IP Logged

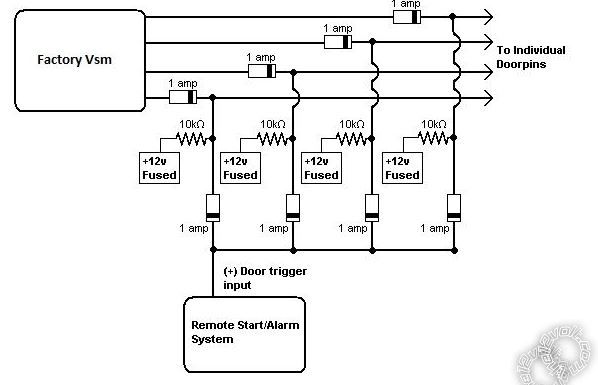

Here is a diagram for the necessary circuit for the NC Door Pins.

2016 Ford Escape door trigger n.c -- posted image.

You must cut the factory door pin wires and insert diodes as shown, ensuring correct diode band direction.

Soldering is fun!
