relay type?


Post ReplyPost New Topic
< Prev Topic Next Topic >
tonypd
Member - Posts: 2
Member spacespace
Joined: June 21, 2016
Location: United Kingdom
Posted: June 21, 2016 at 11:30 AM / IP Logged Link to Post Post Reply Quote tonypd

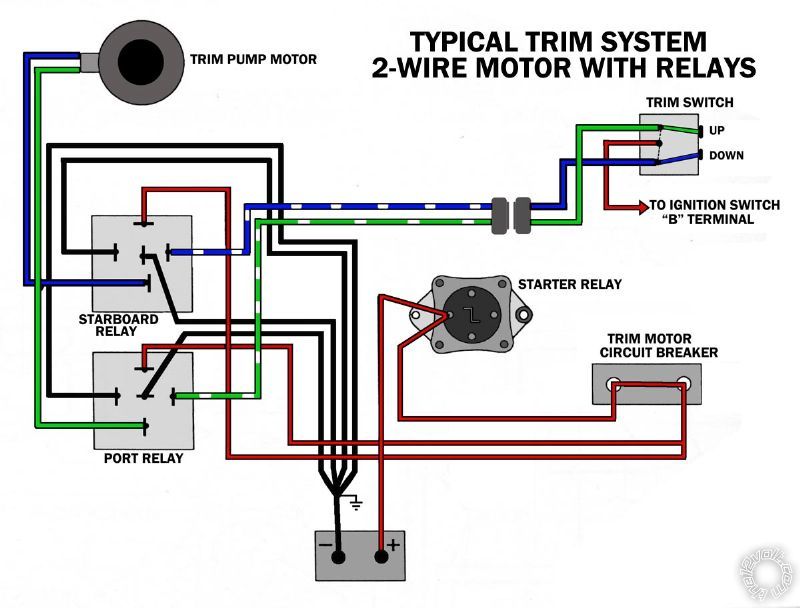

Hoping someone can help me identify which type of relay I need to make the attached wiring diagram work.
it's to operate a power trim motor on a boat, and it needs to reverse polarity on the motor to trim up/down. I can follow the diagram, but i need to identify which type of relay is needed???relay type? -- posted image.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: June 21, 2016 at 12:36 PM / IP Logged Link to Post Post Reply Quote geepherder
Those are standard 12v relays (SPDT- single pole double throw). You should be able to get them at a stereo shop, or even an auto parts store. The terminals are actually oriented as in the diagram you posted. Make sure they have all 5 terminals, as some are missing the middle terminal.
My ex once told me I have a perfect face for radio.
tonypd
Member - Posts: 2
Member spacespace
Joined: June 21, 2016
Location: United Kingdom
Posted: June 21, 2016 at 12:41 PM / IP Logged Link to Post Post Reply Quote tonypd
Thanks for that..
The drawing shows them as 2 different relays, but I suspect that's a mistake.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: June 21, 2016 at 8:55 PM / IP Logged Link to Post Post Reply Quote geepherder
Haha, I thought something didn't look right, and I didn't know what it was until you said that. The bottom relay has the terminals configured as they should be- with the middle terminal horizontal.
My ex once told me I have a perfect face for radio.
