2008 Ford Focus Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
bsnow737
Member - Posts: 5
Member spacespace
Joined: June 26, 2016
Location: Maine, United States
Posted: June 26, 2016 at 6:41 PM / IP Logged
Lost power to the radio out of the blue. The display reads "Ford Focus", and I can't get it to do anything. Checked all the fuses and found fuse 39 blown and replaced it. No change. (And it didn't blow again.) Tore the dash apart to test for power at the radio plugs and found i have no ignition feed, only 1 hot feed(WHITE/ red , I think it was). Unplugged it and disconnected the battery overnight hoping for it to reset. No soup.
I'm hoping someone can tell me which wire should be ignition power. Looked on the Vehicle Wiring page but it wasn't clear to me...
It's an SE with stock radio/cd.
Thanks.
bsnow737
Member - Posts: 5
Member spacespace
Joined: June 26, 2016
Location: Maine, United States
Posted: June 26, 2016 at 8:07 PM / IP Logged
Does anyome have a schematic that includes the audio system?
tonanzith
Gold - Posts: 593
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: June 26, 2016 at 10:38 PM / IP Logged
2008 Ford Focus     DirectWire Vehicle Information
Audio
Item     Wire Color     Polarity     Wire Location
Radio 12V     WHITE/ red     +     radio, gray 24 pin plug, pin 1
Radio Ground     BLACK/ blue     -     radio, gray 24 pin plug, pin 13
Radio Ignition     (MS CAN)
Radio Illumination     (MS CAN)
Factory Amp Turn-on     PURPLE / red (subwoofer amp)     +     radio, gray 8 pin plug, pin 4
Power Antenna     black     +     radio, gray 24 pin plug, pin 5
Left Front Speaker (+/-)     white - WHITE/ brown     +,-     radio, gray 24 pin plug, pins 8 - 21
Right Front Speaker (+/-)     WHITE/ purple - WHITE/ orange     +,-     radio, gray 24 pin plug, pins 11 - 12
Left Rear Speaker (+/-)     WHITE/ green - BROWN / yellow     +,-     radio, gray 24 pin plug, pins 9 - 22
Right Rear Speaker (+/-)     BROWN / white - BROWN / blue     +,-     radio, gray 24 pin plug, pins 10 - 23
Center Channel (+/-)     N/A
Subwoofer (+/-)     PURPLE / green - GREEN / WHITE     +,-     radio, gray 8 pin plug, pins 1 - 2
Aux. Audio Input Left (+/-)     blue - YELLOW /GREEN (without SYNC)     +,-     radio, gray 16 pin plug, pins 7 - 8
Aux. Audio Input Right (+/-)     blue/green - WHITE/ green (without SYNC)     +,-     radio, gray 16 pin plug, pins 6 - 14
RSE Video (+/-)     N/A
RSE Audio Left (+/-)     blue - gray/orange (SYNC audio)     +,-     radio, gray 16 pin plug, pins 1 - 2
RSE Audio Right (+/-)     PURPLE / green - BROWN / white (SYNC audio)     +,-     radio, gray 16 pin plug, pins 9 - 10
Satellite Radio 12 Volts     blue/red     +     Sat Radio in trunk L side, black 12 pin plg, pin 9
Satellite Radio Ground     BLACK/ white     -     Sat Radio in trunk L side, black 12 pin plg, pin 3
Satellite Radio Ignition     (MS CAN)
Satellite Radio Antenna     (coaxial cable)
Satellite Audio Left (+/-)     GREEN/ orange - blue/brown     +,-     Satellite Radio, black 12 pin plug, pins 5 - 11
Satellite Audio Right (+/-)     PURPLE / brown - yellow/blue     +,-     Satellite Radio, black 12 pin plug, pins 6 - 12
Gary Sather
tonanzith
Gold - Posts: 593
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: June 26, 2016 at 10:41 PM / IP Logged

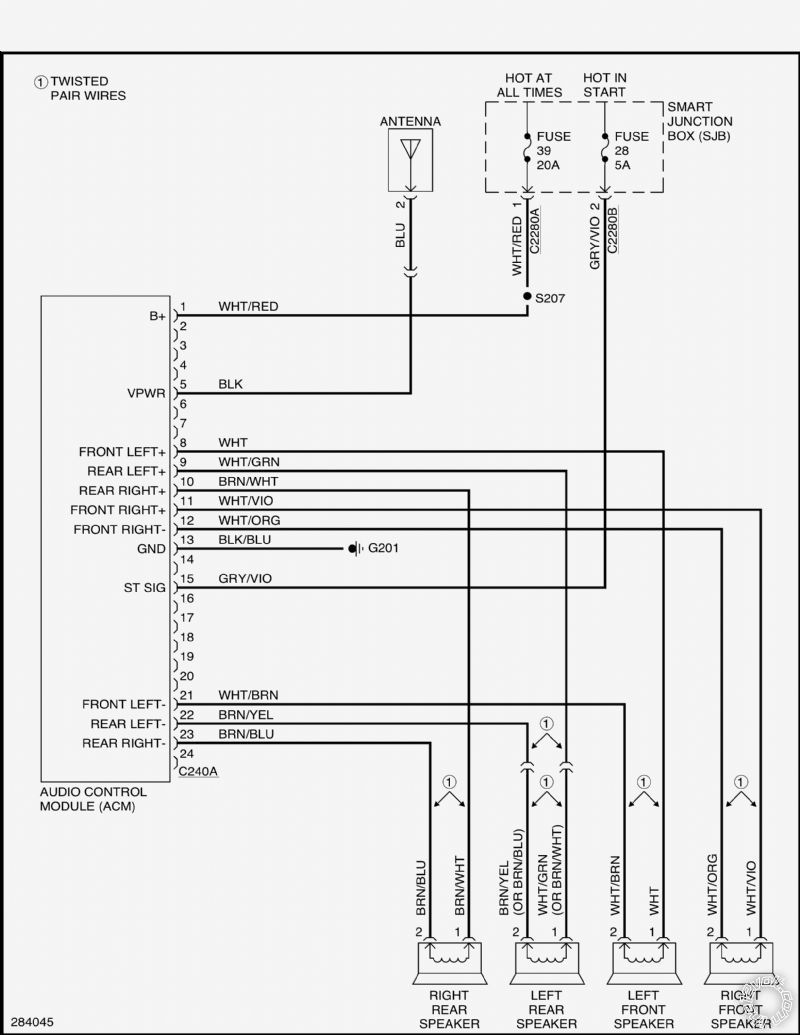

2008 Ford Focus Stereo Wiring -- posted image.
Base radio.
Gary Sather
bsnow737
Member - Posts: 5
Member spacespace
Joined: June 26, 2016
Location: Maine, United States
Posted: June 27, 2016 at 5:15 PM / IP Logged
Perfect! Thanks so much.
Soooo, pardon my ignorance, but wouldn't pin15 be ignition (gray/violet)? Why doesn't it say that on the vehicle wiring page?
On further investigation, the fact that the ignition feed is part of the MS CAN system leads me to believe I'm not going to be able to fix this or 'hotwire' it like stereos of yesteryear...
Any idea about why I'm not getting power? Is there some common failure I can't find on the web?
bsnow737
Member - Posts: 5
Member spacespace
Joined: June 26, 2016
Location: Maine, United States
Posted: June 27, 2016 at 5:23 PM / IP Logged
I checked fuse28 which in the owners manual is labeled "Radio (start)" and found it's only powered during cranking. So maybe the wiring is all ok and my stereo is just smoked?
Maybe they don't have a continuous ignition feed anymore?
Thanks for any (more) help!
bsnow737
Member - Posts: 5
Member spacespace
Joined: June 26, 2016
Location: Maine, United States
Posted: July 03, 2016 at 5:27 AM / IP Logged
Update: My wife went to start it and the battery was nearly flat dead. I put the charger on it, started it up and the radio turned right on! WTH?! Like I said, I disconnected the battery before(overnight) in hopes of a rest and it don't work then. Oh well she has tunes now. Thanks
