2 Relays/2switches/1 output

Home / the12volt's Install Bay / Relays / 2 Relays/2switches/1 output

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

pulsarman605

Member - Posts: 6

Joined: May 17, 2016

Location: Australia

Posted: June 30, 2016 at 3:35 PM / IP Logged

Sorry guys, I know this may be a silly question. I am installed a lightbar. I have two sitch inputs, the High beam and a physical switch. Can someone tell me if the diagram I have is right??

Cheers

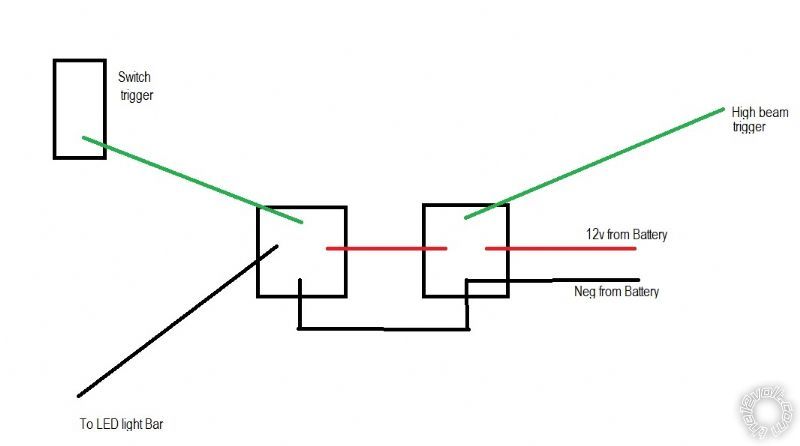

2 Relays/2switches/1 output -- posted image.

Back to Top

i am an idiot

Platinum - Posts: 13,667

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: June 30, 2016 at 9:43 PM / IP Logged

Assuming you are using 30 and 87 of each relay and you only want the light bar on when both criteria are met, High beam on and switch on, then yes your diagram is correct.

Back to Top

tonanzith

Gold - Posts: 593

Joined: July 18, 2008

Location: Washington, United States

Posted: June 30, 2016 at 11:11 PM / IP Logged

Gary Sather

Back to Top

pulsarman605

Member - Posts: 6

Joined: May 17, 2016

Location: Australia

Posted: June 30, 2016 at 11:26 PM / IP Logged

Yep that is correct "I am an idiot". I want High beam on and Switch on to activate the light.

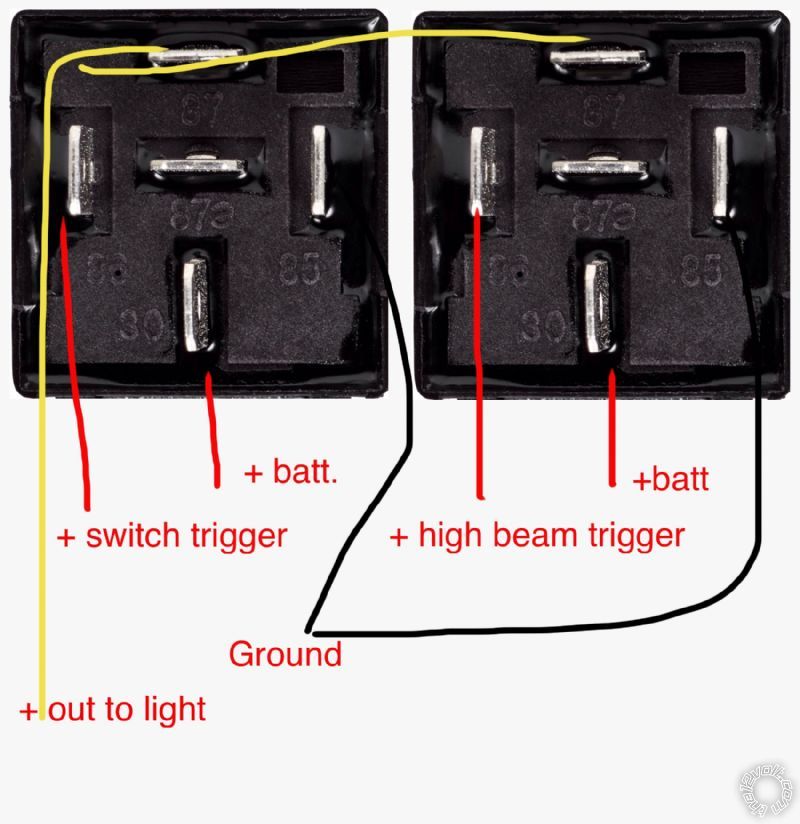

Have added the numbers now.... so this should work? 2 Relays/2switches/1 output -- posted image.

Back to Top

pulsarman605

Member - Posts: 6

Joined: May 17, 2016

Location: Australia

Posted: June 30, 2016 at 11:27 PM / IP Logged

tonanzith. Pretty sure your way the switch trigger will turn the lights on without the other trigger. I need but relay to be activated for the light to work. So highbeam on and switch on.

Thanks though

Back to Top

tonanzith

Gold - Posts: 593

Joined: July 18, 2008

Location: Washington, United States

Posted: June 30, 2016 at 11:39 PM / IP Logged

No. See my above post for wiring relays. This will achieve turning on led when high beams are on or when you turn on the switch.

Gary Sather

Back to Top

tonanzith

Gold - Posts: 593

Joined: July 18, 2008

Location: Washington, United States

Posted: June 30, 2016 at 11:41 PM / IP Logged

Ok. So you want the led to only turn on if BOTH the high beam and switch are on at the same time? If so I musunderstood.

Gary Sather

Back to Top

tonanzith

Gold - Posts: 593

Joined: July 18, 2008

Location: Washington, United States

Posted: June 30, 2016 at 11:42 PM / IP Logged

If that's the case then yes your relay diagram will work. Sorry for misunderstanding.

Gary Sather
