Old Viper 460xv Brown Wire, DEI 516U Voice Module


Post ReplyPost New Topic
< Prev Topic Next Topic >
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: August 25, 2016 at 6:10 PM / IP Logged
The red and black power the siren and charge the battery. The orange wire is acting like the brown siren wire on a unit that has it. It's labeled as a TX wire, but will still have polarity when transmitting.
Test the orange wire for positive or negative polarity.
If it tests positive then connect it to the brown on the 516u and disconnect the green from the 516u and it should work as you want it too.
chrisj000
Member - Posts: 38
Member spacespace
Joined: August 24, 2016
Location: United Kingdom
Posted: August 25, 2016 at 6:40 PM / IP Logged
I will try it as soon as i can and post back here how I got on,thanks very much you've been a great help
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: August 25, 2016 at 7:38 PM / IP Logged
No problem.
chrisj000
Member - Posts: 38
Member spacespace
Joined: August 24, 2016
Location: United Kingdom
Posted: August 27, 2016 at 10:58 AM / IP Logged
Ok so I managed to get a few hours to have a proper look today,no luck with the orange wire at the siren so I used a relay to reverse the polarity wired as above with the brown wire - from the alarm and brown from 516u,changed the siren settings to constant and still not working,then I noticed another setting in the manual by pure luck that I changed from horn full alarm to siren pulse 50ms and all works as it should,thanks very much for your time and help
Chris
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: August 27, 2016 at 2:20 PM / IP Logged
Could you list out what worked from relay connections to menu settings for the next person. Thanks
chrisj000
Member - Posts: 38
Member spacespace
Joined: August 24, 2016
Location: United Kingdom
Posted: August 27, 2016 at 3:36 PM / IP Logged
Relay pin connections
85=+
86=+
87= - horn from alarm (brown)
30= + siren from 516u(brown)

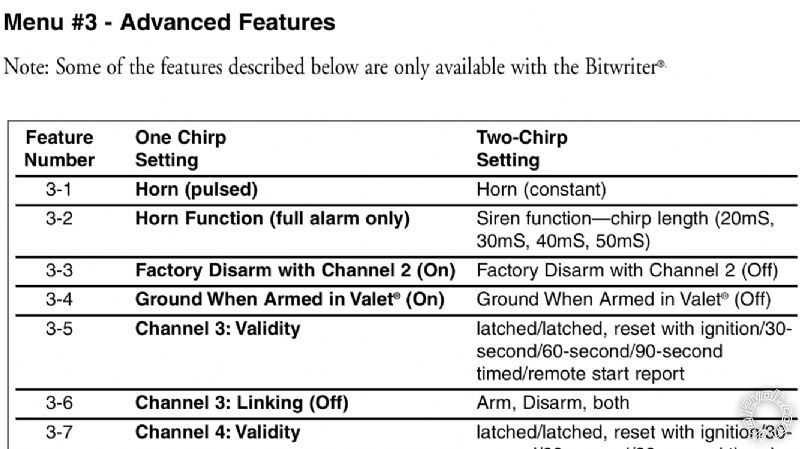

In settings menu 3
Menu option 3.1 set horn to constant
Menu option 3.2 set to siren function 50ms Old Viper 460xv Brown Wire, DEI 516U Voice Module - Page 2 -- posted image.
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: August 27, 2016 at 4:45 PM / IP Logged
How to wire a 516u to a 460xv alarm with the 515ESP siren.
chrisj000 wrote:
Relay pin connections
85=+
86=+
87= - horn from alarm (brown)
30= + siren from 516u(brown)
In settings menu 3
Menu option 3.1 set horn to constant
Menu option 3.2 set to siren function 50ms Old Viper 460xv Brown Wire, DEI 516U Voice Module - Page 2 -- posted image.
Thanks for the info on your success of trial and error to get this setup working correctly!
@chrisj000 Info added at top to make this more searchable.
