Viper 5706V Remote Start, 2007 FJ Cruiser

Hey guys, I have a 2007 FJ Cruiser that had a Viper Tebow start installed when I bought it. I upgraded to a 5706v alarm/remote start. I installed the alarm,which works fine but I can't get the remote start to work. Since it's a 2007 it doesn't have a bypass. The only time I get the remote start to work is if the key is in the on position. It will not work with the key in the ignition without it being in the on position. When I try to remote start, no error is given, it tries to stay 3x and nothing happens. I pulled the fuse on the main harness 12v connection and grounded the door input but that really doesn't seem to do anything. The remotes were still paired. I had a similar issue with the old remote start, but I just disconnected the positive battery terminal, remote started and it worthwhile after that. I did the same with this unit but it's not clearing the memory. The remotes still function. Thanks for any input!

I would guess you aren't powering something up during remote start. Can you list all your connections for us pleaseIf i Can't Install it    I Don't need it   Joe

My money is on a thick 5706 Red, RED / Black or RED / White wire....   Soldering is fun!

As young Kreg plus remember, 2 ignition wires required, connect both.

Here are the connections

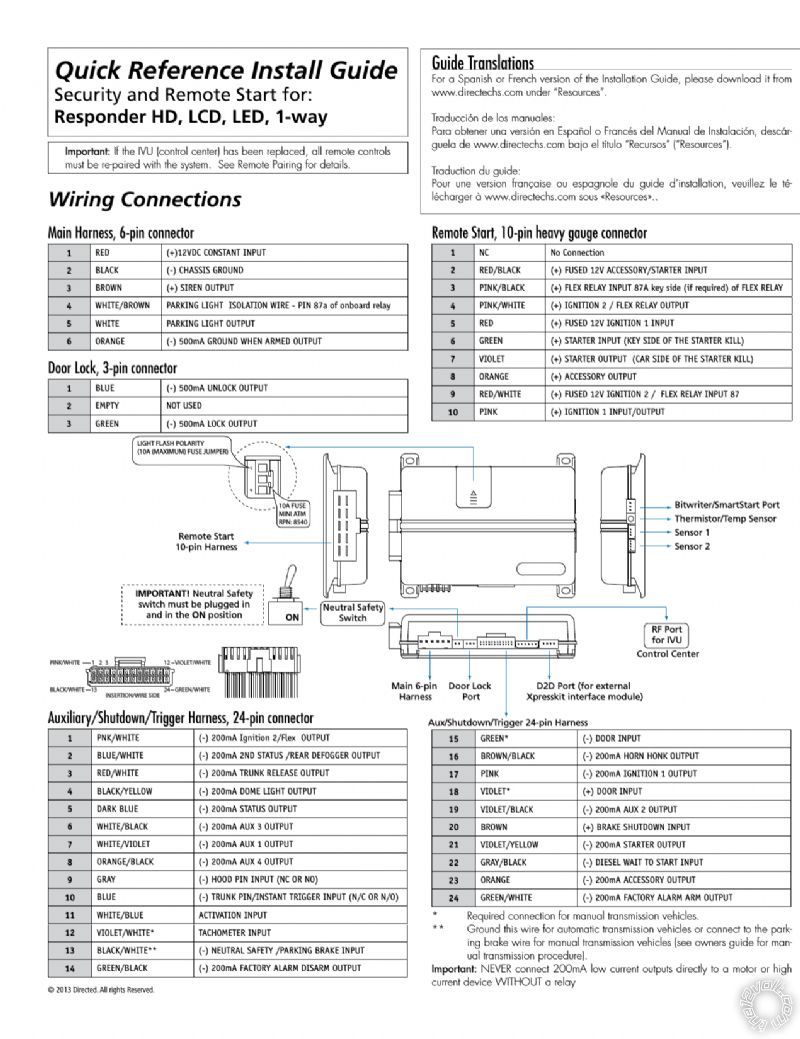

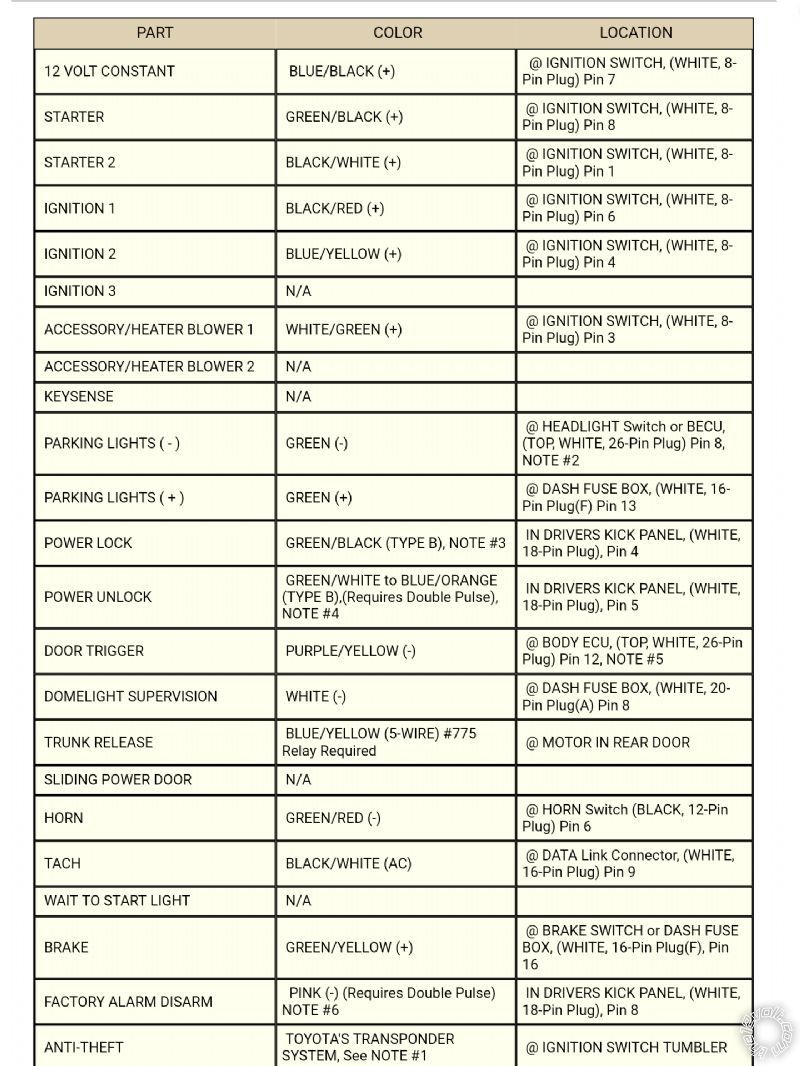

So what is connected where ????? Here is the setup for the ignition wires. Remote Start, 10-pin heavy gauge connector 1 NC No Connection 2 RED / BLACK (+) FUSED 12V ACCESSORY/STARTER INPUT    Blue/Black * 3 PINK/BLACK (+) FLEX RELAY INPUT 87A FLEX RELAY     Not Used 4 PINK/WHITE (+) IGNITION 2 / FLEX RELAY OUTPUT      Blue / YELLOW 5 RED (+) FUSED 12V IGNITION 1 INPUT WHITE/ Blue * 6 GREEN (+) STARTER INPUT (KEY SIDE) GREEN/ Black 7 VIOLET (+) STARTER OUTPUT (CAR SIDE)GREEN/ Black 8 ORANGE (+) ACCESSORY OUTPUT        WHITE/ Green 9 RED / WHITE (+) FUSED 12V IGNITION 2 Blue/Black * 10 PINK (+) IGNITION 1 INPUT/OUTPUT   BLACK/ Red * Blue/Black is rated at 30 Amps. WHITE/ Blue is rated at 50 Amps. Auxiliary/Shutdown/Trigger Harness, 24-pin connector 21 VIOLET / YELLOW (-) 200mA STARTER OUTPUT Pin 85 Extra 30/40 Amp SPDT Relay Extra 30/40 Amp Relay for Starter2 Relay Pin 85 to 4706 VIOLET / YELLOW (-) 200mA STARTER OUTPUT Relay Pins 86 & 87 to +12V constant WHITE/ Blue through 20 Amp fuse Relay Pin 30 to Starter2 BLACK/ White Might want to add a 1N4007 diode across relay Pins 85 to 86 with the diodes' band towards Pin 86. Soldering is fun!

Thanks Kreg, I'll double-check the wiring.

Wiring is good

Should starter 2 run from BLACK/ white to RED / black or a different connection? Right now the relay is to RED / black
