2014 F150 XLT Lock/Unlock Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
tominphoenix
Member - Posts: 2
Member spacespace
Joined: April 10, 2017
Location: Arizona, United States
Posted: April 10, 2017 at 12:17 PM / IP Logged Link to Post Post Reply Quote tominphoenix
Anyone have the wiring diagram that shows where to catch the lock/unlock signals? Installing a Pop and Lock solenoid on my tailgate and can't locate correct wires so it will lock/unlock with the doors and key fob.
tominphoenix
Member - Posts: 2
Member spacespace
Joined: April 10, 2017
Location: Arizona, United States
Posted: April 10, 2017 at 12:51 PM / IP Logged Link to Post Post Reply Quote tominphoenix
Sorry. Should have mentioned this is for SuperCab. Wiring for CrewCab may be different since no lck/unlike wires are needed for the rear doors of SCab, wires may not be present in side rails.
orionsax
Member - Posts: 6
Member spacespace
Joined: April 21, 2017
Posted: April 22, 2017 at 12:01 AM / IP Logged Link to Post Post Reply Quote orionsax
I'm guessing you want the 12-volt signal going to the latch? Best bet would be the driver's door latch.

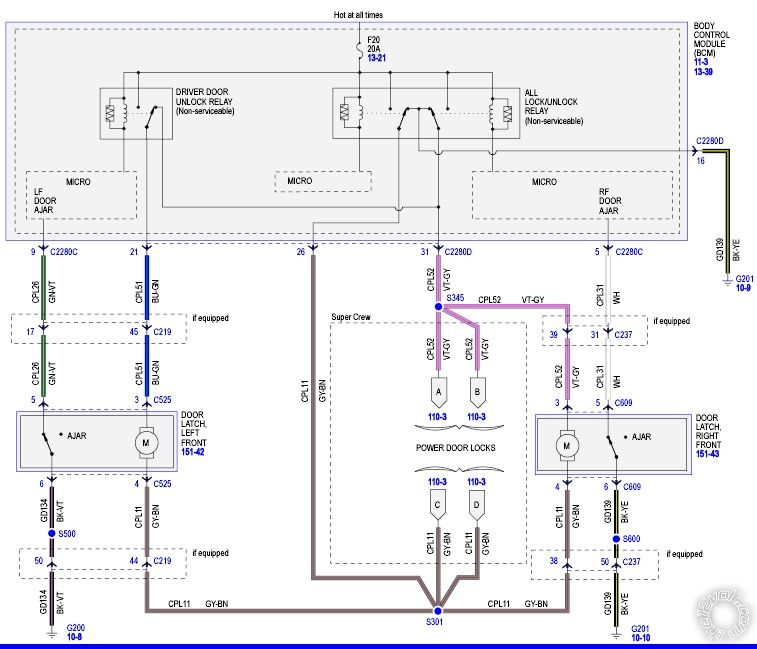

Blue/Green wire at latch has power for unlock, Grey/Brown wire at latch has power for lock.
Here you go:
2014 F150 XLT Lock/Unlock Wiring -- posted image.
