How to make circular rings


Post ReplyPost New Topic
< Prev Topic Next Topic >
Skivah
Member - Posts: 3
Member spacespace
Joined: June 20, 2005
Location: United States
Posted: June 21, 2005 at 12:41 PM / IP Logged

How to make circular rings.  I bought a threaded steel rod, an eye bolt, and four hex nuts at Home Depot for less than ten bucks.  I attached the steel rod and eye bolt to my router, allowing the router to rotate in a circular motion.  The eye bolt is adjustable allowing you to create different size circles.  (See pictures below).

Note: these pictures were taken before I cut the rings.  But you'll get the ideal.

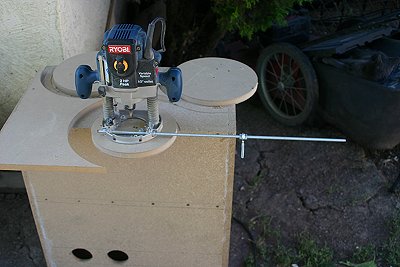

Router assembly with threaded steel rod and eye bolt.

posted_image

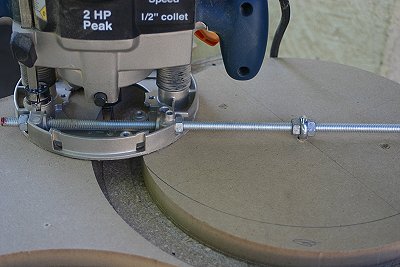

Close-up view of the threaded steel rod attached to the router.  The eye bolt is adjustable to whatever radius you determine.  A hole was drilled and the eye bolt inserted in the center of the circle, allowing the router to rotate in a circular motion.  Tighten the hex nuts with a wrench before cutting your circles.  Any loose connections and your circles will be out-of-round.  Also secure your mdf boad before cutting.  I secured my mdf board by screwing it down to an old speaker box.  Place at least one screw next to the eye bolt and another outside the outer ring of your circle so the mdf board doesn't  move.  And now your ready to start cutting.  Wear safety glasses and a respirator, you'll be creating a lot of dust.

posted_image

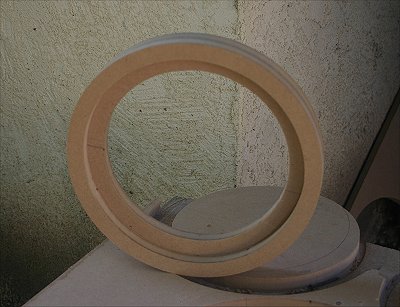

The final result will look great.  I glued these two rings together.  The edges were smooth and the outer edges were a perfect match.

posted_image

Good Luck!

Feel the music!
tim828
Member - Posts: 19
Member spacespace
Joined: May 30, 2005
Location: United States
Posted: June 22, 2005 at 7:01 PM / IP Logged
i just made mine out of a peice of 1/4 inch mdf.  i cut my rings yesterday.  but i like yours much better.
oonikfraleyoo
Gold - Posts: 1,077
Gold spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: January 04, 2005
Location: United States
Posted: June 22, 2005 at 7:11 PM / IP Logged
Thats a pretty good idea that I haven't seen yet.
Nik
Jeeputer Progress
[|||||||||||-] 90%
Check it out.
auex
Platinum - Posts: 5,082
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 23, 2002
Location: Arizona, United States
Posted: June 29, 2005 at 5:31 PM / IP Logged
I haven't seen that one yet. I would however add 1 more bolt on each side of the eyelet just to make sure it locks. Definately looks like it works.
Certified Security Specialist
Always check info with a digital multimeter.
I promise to be good.
Tell Darwin I sent you.
I've been sick lately, sorry I won't be on much.
fox02yz125
Member - Posts: 5
Member spacespace
Joined: June 11, 2005
Location: United States
Posted: July 06, 2005 at 4:05 PM / IP Logged

Hey, quick question-

What kind of router bit did you use to cut all the way through?

Skivah
Member - Posts: 3
Member spacespace
Joined: June 20, 2005
Location: United States
Posted: July 06, 2005 at 8:04 PM / IP Logged

Good question.

I actually had to make two cuts to cut completely through the 3/4" mdf board.  After making the first cut, I had to plunge the router down approximately 1/32" to cut completely through the mdf board.  The second cut passed through the mdf board like butter.

Thank you.

Feel the music!
justateg
Member - Posts: 5
Member spacespace
Joined: October 31, 2004
Location: United Kingdom
Posted: July 06, 2005 at 10:53 PM / IP Logged
Good Idea on the jig,  I used this method and It worked flawless.  If you use a plunge router and A dual fluted straight 1/4 inch bit i was able to cut all the way through in one pass.
DukeDuke
Silver - Posts: 207
Silver spacespace
Joined: November 01, 2003
Location: United States
Posted: July 09, 2005 at 11:09 PM / IP Logged
I use a 1 inch 1/8 straight bit, cuts it great
Duke Duke
DukeDuke
Silver - Posts: 207
Silver spacespace
Joined: November 01, 2003
Location: United States
Posted: July 09, 2005 at 11:18 PM / IP Logged
I made mine out of 1/2 inch MDF, it is just a 12x3 piece and it is mounted on it with a hole in the center, and bolted down to the router, then measure out from the middle of the bit to half of your hole and nail it to your MDF and go with it. I like the idea, but it seems like if you cut a circle and had to go back and cut another it would be a little off, since there isn't a certain hole to put it on. but great idea
Duke Duke
chkur6
Member - Posts: 11
Member spacespace
Joined: March 18, 2005
Posted: July 14, 2005 at 6:52 PM / IP Logged
You could just mark off where you had it set with a sharpie on each side of the nut.
