Topic: 2009 Dodge Ram Alarm Wiring
Posted By: jsanchez71
Subject: 2009 Dodge Ram Alarm Wiring
Date Posted: January 18, 2009 at 12:01 PM
Hi there, does any body have the wiring diagram for this truck, i will be installing a 5900 from viper. Any help will be appreciated.
Replies:
Posted By: robertsc
Date Posted: January 18, 2009 at 12:21 PM
i think everybody is doing the waiting game on this one unless your going to be the one to crack it open
Posted By: 12vstunna
Date Posted: January 18, 2009 at 1:12 PM
ok so i tried to copy and paste and sorry it didnt work but here you go ok 12v-14ga yellow/red under left side of dash in blue(tow package) connector ign-18ga pink/white at ignition switch starter-same wire as ignition 1 horn-no horn wire just use siren lights(-)-18 ga white at light switch-use 3k ohm resistor also 640 ohm resistor on same wire turns on headlight LF Door-18ga.violet (-) in harness coming up from floor under left side of dash RF Door-18 ga.violet/white at same LR Door-18 ga.violet/gray at same RR Door-18 ga. violet / YELLOW at same Interior Lights-18 ga.yellow/white behind light switch at green connector (+) Lock Switch-MPX Unlock Switch-MPX and well thats what i used an no problems till this day ------------- WHO NEEDS M.E.C.P ITS JUST A CERTIFICATE,OH AND I GOT THE SKILL TO PROVE THAT I DONT NEED ONE~XxX12vStunnaXxX~ X-Mobile Solutions
Posted By: jsanchez71
Date Posted: January 20, 2009 at 12:18 AM
Thanks man, will try it over the weekend.
Posted By: jsanchez71
Date Posted: February 09, 2009 at 8:10 PM
Which module do I need for remote start?
Posted By: loneranger
Date Posted: February 09, 2009 at 8:28 PM
DLPK or PKUCH2X(bypass only).
------------- Ideal - cmon dude, add to topics in a useful manner, not stuff that is obvious.
Story - Phzzzt! Hey, what happened?! ... Isn't it obvious?
Moral - Never dismiss the obvious.
Posted By: robertsc
Date Posted: February 10, 2009 at 7:30 PM
so what the skinny on this vehicle people run around saying its the new fob ignition that has no bypass available had a customer tell me he has a regular chrysler key not a fob has anybody done one is it the same as a 2008 and use a pkuch2x
Posted By: jsanchez71
Date Posted: February 11, 2009 at 1:10 PM
IMy supplier told me that those two modules won't work, he got in the phone with the people from directed and according to him, the module for this truck is not ready yet. I'm not sure wich is the FOB key, but as I didn't have the module for the bypass, I installed a Viper 1002 on these trucks, the key that they have it is not as usual keys, when you insert it in the sw, you have to push it in, and if you disconect the harness from the sw, it won't release the key, kinds of get's locked in., all the wiring info from directech document's were accurate, couldn't install the 5900 that the customer wanted. But according to the xpresskit page, that's the one, hope someone helps clarify this.
Posted By: robertsc
Date Posted: February 11, 2009 at 1:24 PM
a non fob key has a metal blade that you insert into the key cylinder a fob key is all plastic the end of the key is about the size or the end of your thumb you insert and turn it it uses the transponder to allow the vehicle start the fob is a generic size and it is not cut like a conventional key if that makes sense https://superiorsportsinvestments.com/2008300c
Posted By: jsanchez71
Date Posted: February 11, 2009 at 1:54 PM
The one's I did, had the metal blade cutted as normal key, with the only difference that right where the metal starts had a plastic square that fits into the key cylinder, that's what it looks different., but if this is a normal key, it should work with any od these modules DLPK or PKUCH2X correct?
Posted By: robertsc
Date Posted: February 11, 2009 at 3:20 PM
thats what im trying to figure out
Posted By: Mike M2
Date Posted: February 12, 2009 at 6:52 AM
Oh man, i just set one of these up for an install Saturday. I figured they were the same truck as last year and was going to use a 556CW. Now i gotta check into it... ------------- Mike M2
Tech Manager
CS Dealer Services
Posted By: robertsc
Date Posted: February 12, 2009 at 7:39 AM
well post the details i won't be looking at mine till next week
Posted By: chriswallace187
Date Posted: February 12, 2009 at 4:58 PM
Just a suggestion, since I haven't done an '09 Ram yet, but is this one by chance a 2500/3500 of the old body style?
------------- C Renner's Auto Electronix
My service is cheap, quick, and good - pick any two
Posted By: jsanchez71
Date Posted: February 13, 2009 at 3:20 PM

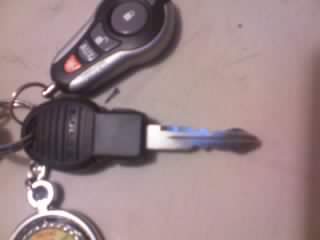

The ones I'm doing are 2500 new body style, and here are some pic's of the key
Posted By: robertsc
Date Posted: February 17, 2009 at 3:08 PM
jsanchez71 wrote:
The ones I'm doing are 2500 new body style, and here are some pic's of the key
well i pulled the dash down for the ram and it does have a fob style box this key seems to be whats used if you get a vehicle with no keyless entry if you look at the shoulder of the key it is the same physical size as the fob style the customer was not interested in allowing me to be adventurous
Posted By: loneranger
Date Posted: February 17, 2009 at 3:40 PM
Lol. Give them some money and send them across the street for lunch, your treat.
------------- Ideal - cmon dude, add to topics in a useful manner, not stuff that is obvious.
Story - Phzzzt! Hey, what happened?! ... Isn't it obvious?
Moral - Never dismiss the obvious.
Posted By: stripehunter
Date Posted: March 10, 2009 at 3:36 PM
I just bought an 09 ram and have been looking for alarm wiring info on it. Here's the deal, FYI, the 2009 RAM 1500 is a totally different truck than the 2008. The 2009 RAM 2500 and 3500 trucks are the same as the 2008 (these two are getting re-designed next year). So it's very important that you specify which 2009 ram you are talking about. The 2500 and 3500 being the same as 2008 models will have the old normal sentry key. The 2009 ram 1500, most of them use a new fob key (without metal 'key' part) with factory remote features built in. But, the base trim in the ram 1500 (ST package) still uses a bladed sentry key, but the rest of the wiring should be the same as the other 2009 1500 rams. Hope that helps clear things up. Also, does anybody know if there's an expresskit for the new ram 1500 yet?
Posted By: jsanchez71
Date Posted: March 12, 2009 at 3:47 PM
So that means that it should work as the 2008? with the 556CW? I really didnt wanted to test on this truck's because they were from a company, but they didn't had keyless entry module, actually they were manual, had to add door lock actuators and electric window conversion kits.
Posted By: crxvtec305
Date Posted: March 13, 2009 at 6:27 PM
loneranger wrote:
DLPK or PKUCH2X(bypass only).
The PKUCH2X bypass will not work with th e smart key. Maybe if you use the starscanner to do it.
Posted By: stripehunter
Date Posted: March 20, 2009 at 6:44 PM
Disclaimer; only posting this info for a do-it-yourselfer who may be looking for this kind of info as I was. Couldn't find it anywhere, so I figured it out on my own. A pro would probably not do it this way.
I put my basic $30 keyless entry kit in the other night. My truck is a 2009 ram 1500 ST (base trim) of the new design (4th generation- as I said the 2500 and 3500 are still 3rd gen and I would think should be the same as the 2008s). It is base trim, but still has power locks and windows. I had acquired a lock diagram from a 2008 1500, mine is similar, but different resistor values. Didn't want to pay for an interface, which may or may not be available. Since it's my own truck, I did some dissecting of switches to figure out how to clone them. Coming from the passenger door switch is a purple wire with green stripe. This is the lock signal wire. grounding this wire through a 330 ohm resistor will lock the doors, grounding it through a 100 ohm resistor will unlock the doors. Coming from the headlight switch is a pure white wire, this is the headlight output. Grounding this wire through a 1.146 kilo ohm resistor will turn the parking lights on. No relays are necessary, since these are all just signal wires with no draw. just use a plain old fashioned negative trigger kit with the correct resistors at the wiretaps.
Posted By: robertsc
Date Posted: March 21, 2009 at 7:37 AM
Looks like the starter post was a hoax.
Posted By: thunda_hawg
Date Posted: March 21, 2009 at 8:30 AM
yes the new chrysler vehicles use a newer generation of sentry keys. the expresskit line has the new chrysler gen II can bus . part # is PKcan or dlpkki ch3 for 09 and up chryslers . it also works stuff like the door locks and sometimes the gas door lid and trunk depending on the vehicle. ive used them on two 09 rams with no problems that i cantell as they are self programming. hope this helps
------------- 89' 240sx
Rockford t8004
boston z6 comp.
eclipse 3432
polk MM 8"
Taylor owes Joe a Sandwich
Posted By: 12vmatt
Date Posted: June 25, 2009 at 1:26 PM
these kits wont work i had one in the shop today unfortunatly the kich3 has the chip piece in it for the 08 that you put in the box but that piece is totally different on the 09 base model they also told me there is no safe way to wire the relay pack up to it without that integation piece the only way i have found how to do it is with a factory rs kit its about 240 from dodge but it will still control the door locks and everything else
Posted By: powervoltz
Date Posted: August 04, 2009 at 11:44 AM
i see this is an old post but just found out that flashlogic has piece to do this truck four to five wire hookup and your done also does the challengers
------------- " I see wire diagrahms "18 yrs+ of installing - not good on the brains LOL
|
