Topic: 2011 camaro alarm
Posted By: itsmars
Subject: 2011 camaro alarm
Date Posted: December 20, 2013 at 5:30 PM
I havent started but i did purchase viper 5704 with dball module i have all needed diagrams and i need help understanding the dball diagram on a few connections
Replies:
Posted By: powerslave
Date Posted: December 20, 2013 at 6:03 PM
Ok, but don't tell us what connections you are referring to...
Posted By: itsmars
Date Posted: December 20, 2013 at 8:00 PM
yea my bad on the dball diagram harness 14 pins 10,11 & 12 is where my confusion is.
Posted By: triniforever
Date Posted: December 20, 2013 at 8:54 PM
I did a 2010 Camaro and it was manual too, but I went with Idatalink and I can tell you to remove that BCM is a real PITA and putting it back in is a nightmare and I believe I went with the 5704 also ,but be patient it will take some doing .
-------------
triniforever
Posted By: itsmars
Date Posted: December 20, 2013 at 9:34 PM
im thinking about going with that 1 myself so did you need any relays or just followed diagrams to the t?
Posted By: triniforever
Date Posted: December 21, 2013 at 7:49 AM
No relays needed for that car ,just follow the install diagram and you should be fine. Have you ever installed an alarm/remote start on a car before ?
-------------
triniforever
Posted By: itsmars
Date Posted: December 21, 2013 at 11:34 AM
No not remote start i did 1 on my 88 monte carlo ..... Damn i miss that car I appreciate the help im just confused on the 3 wire from harness 14 wire 10 ORANGE / Red where i have to cut then do ??
Posted By: itsmars
Date Posted: December 21, 2013 at 1:11 PM
I cant edit my last post but i didnt mean to put 3 wire just wire 10 ORANGE / red from harness 14
Posted By: triniforever
Date Posted: December 21, 2013 at 6:46 PM
For instance on pin #2 that wire has to be cut and the ORANGE / Red wire from the DBALL goes to the cut side away from the BCM and the Yellow/Red wire from the DBALL has to be connected to the plug side of the of the wire from the BCM.
-------------
triniforever
Posted By: itsmars
Date Posted: December 21, 2013 at 7:44 PM
OOOOh OOOk i got you man thanks big time
Posted By: triniforever
Date Posted: December 21, 2013 at 9:26 PM
Also when you see a big black DOT where two wires meet , it means that they must be connected together (it's obvious ) but I thought I'd mention it anyway .
-------------
triniforever
Posted By: itsmars
Date Posted: December 22, 2013 at 11:35 AM
That 1 i knew and again thanks im going to dive in today
Posted By: itsmars
Date Posted: December 22, 2013 at 6:29 PM

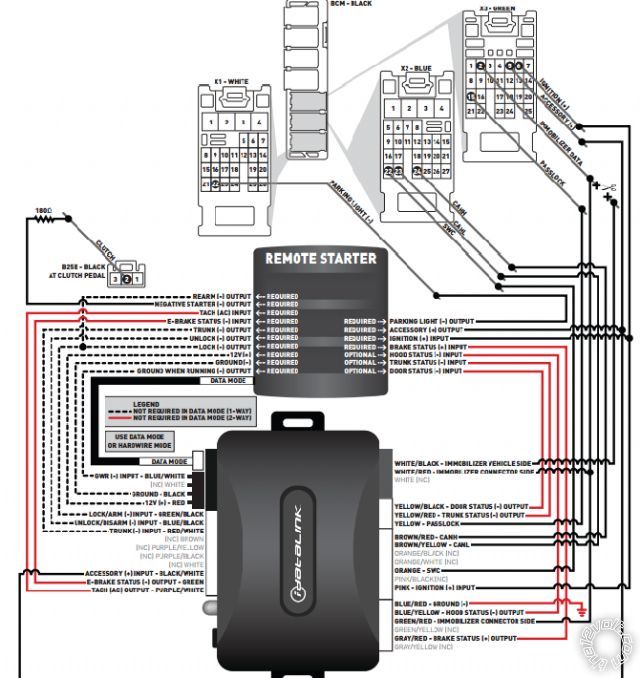

im not going to keep the dball after days of research going with idata so i may have a new ? soon lol thanks all
Posted By: itsmars
Date Posted: January 06, 2014 at 4:07 PM
How do you know if you need relays
Posted By: itsmars
Date Posted: January 07, 2014 at 8:18 AM
My alarm sheet says connect wire a to starter wire of car well my tech car sheet says starter 2 and ignition wire are same so do i just run all 3 together. I have a week to complete before i call it quits so any help is much appreciated
Posted By: itsmars
Date Posted: January 07, 2014 at 9:02 AM
itsmars wrote:
My alarm sheet says connect wire a to starter wire of car well my tech car sheet says starter 2 and ignition wire are same so do i just run all 3 together. I have a week to complete before i call it quits so any help is much appreciated
forgot to add this 2011 camaro Battery RED / WHITE (+) IGNITION SWITCH
Ignition 1 PINK (+) IGNITION SWITCH
Accessory 1 PINK (+) IGNITION SWITCH HARNESS
Accessory 2 BROWN (+) IGNITION SWITCH HARNESS
Starter 2 PINK (+) IGNITION SWITCH HARNESS
Posted By: itsmars
Date Posted: January 07, 2014 at 9:06 AM
itsmars wrote:
itsmars wrote:
My alarm sheet says connect wire a to starter wire of car well my tech car sheet says starter 2 and ignition wire are same so do i just run all 3 together. I have a week to complete before i call it quits so any help is much appreciated
forgot to add this 2011 camaro Battery RED / WHITE (+) IGNITION SWITCH
Ignition 1 PINK (+) IGNITION SWITCH
Accessory 1 PINK (+) IGNITION SWITCH HARNESS
Accessory 2 BROWN (+) IGNITION SWITCH HARNESS
Starter 2 PINK (+) IGNITION SWITCH HARNESS
THROUGH A 9.6K OHM RESISTOR this was the speacial note with starter 2
Posted By: itsmars
Date Posted: January 07, 2014 at 2:24 PM
Can i get any help???
Posted By: bl4ck3d0ut
Date Posted: January 07, 2014 at 2:33 PM
You dont need to hookup the starter wire at all if you going D2D
Posted By: itsmars
Date Posted: January 07, 2014 at 4:45 PM
bl4ck3d0ut wrote:
You dont need to hookup the starter wire at all if you going D2D
Im going straight w2w though
Posted By: bl4ck3d0ut
Date Posted: January 07, 2014 at 6:02 PM
itsmars wrote:
bl4ck3d0ut wrote:
You dont need to hookup the starter wire at all if you going D2D
Im going straight w2w though
What bypass module are you using again?
Posted By: itsmars
Date Posted: January 07, 2014 at 6:12 PM
bl4ck3d0ut wrote:
itsmars wrote:
bl4ck3d0ut wrote:
You dont need to hookup the starter wire at all if you going D2D
Im going straight w2w though
What bypass module are you using again?
Blade al but where im confused is the required starter wire from brain and my car tech sheet says starer wire n/a
Posted By: itsmars
Date Posted: January 07, 2014 at 6:24 PM
Posted By: itsmars
Date Posted: January 07, 2014 at 6:29 PM

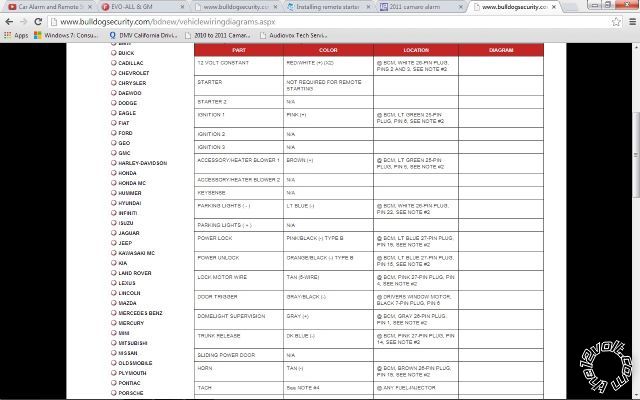

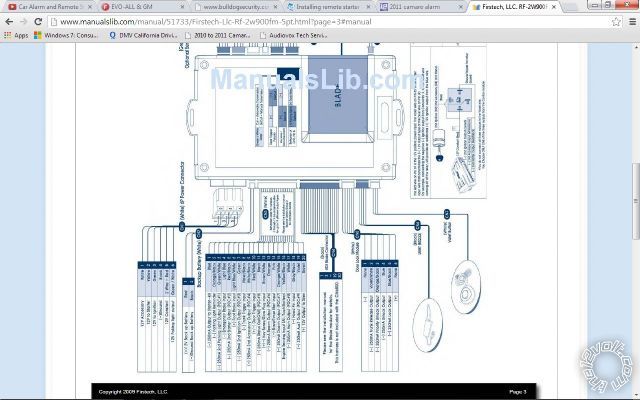

Sorry pics are to small but heres the links and the last 1 was wrong too erghh
https://www.bulldogsecurity.com/bdnew/vehiclewiringdiagrams.aspx
https://www.manualslib.com/manual/51733/Firstech-Llc-Rf-2w900fm-5pt.html?page=3#manual
Posted By: itsmars
Date Posted: January 08, 2014 at 5:44 PM
Ok i found out 95% of my answers by searching around just have 2 ?s do i wire the ignition wires from the brain to the car ignition and from the brain there a starter to output kill is that 1 needed too again thanks to anyone helping me
Posted By: kamaro11
Date Posted: January 09, 2014 at 6:49 PM
Seems we have same taste lol im looking for that help too
|
