Topic: resistor based door triggers
Posted By: freqsounds
Subject: resistor based door triggers
Date Posted: January 12, 2014 at 2:20 PM
Replies:
Posted By: cutter122
Date Posted: January 12, 2014 at 2:30 PM
Posted By: freqsounds
Date Posted: January 12, 2014 at 2:34 PM
Posted By: oldspark
Date Posted: January 12, 2014 at 3:43 PM
Posted By: freqsounds
Date Posted: January 12, 2014 at 4:07 PM
Posted By: KPierson
Date Posted: January 13, 2014 at 12:02 AM
Posted By: oldspark
Date Posted: January 13, 2014 at 6:24 AM
Posted By: freqsounds
Date Posted: January 13, 2014 at 7:45 PM
Posted By: oldspark
Date Posted: January 13, 2014 at 10:11 PM
Actually IMO it's easier to do than understand. Or certainly easier than trying to understand my gibberish above. In some ways it may be easier than that SAAB circuit.
All I reckon you need to understand is...
- a comparator is a device (chip, circuit, (gate??) with 2 inputs and an output.
- the output is ON when the comp's '+' input has a lower voltage than its '-' input.
NOTE - that + & - input has nothing to do with +ve or -ve voltage; it's merely the labels used to designate which input, namely non-inverting (+) or inverting (-). That jargon comes from Op Amps (Operational Amplifiers) on which Comparators are based. (Instead of buying quad OpAmp chips/integrated-circuits) and adding components to make them into Comparators, manufacturers have already done that in chips like the LM339.)
- you connect your tested voltage to one input.
- the other input has the 'reference' voltage - ie, the voltage where you want the output to turn on or off (aka change state).
- the Ref voltage is set using a (resistive) voltage divider (see Wiki).
That's basically it.
The other considerations are whether it's to be on or off when the tested/probed voltage is above or below the Ref voltage [that determines if the Ref is a + input or - input and hence tested input is - or + (ie, inverting or non-inverting) respectively] and misc other things...
The Misc's include supplying power to the Comp circuit (ie, the chip) and whether the output can handle the load.
Also voltage supply & ranges but that's not an issue since the LM339 etc uses a "single supply" (eg, +12V & GND, not +12V, 0V/GND and -12V) and your sampled voltage falls within its 0V to +12V range. (When I say +12V, I really mean whatever voltage the car is - eg, 10V to 14.4V etc.)
Then there are esoteric misc's like spike protection, noise filtering, tested voltage variation (from what the book said) etc. That's also called bluddy OldFart's rambling and is probably not an issue in this case. Or to paraphrase, an LM399 is cheap enough to suck and see and then worry about that esoteric crap if required (or if going into production...).
So yet again I have added extra ramble to a mere 'simple understanding', but maybe it will now be clearer.
BTW - my replies often take several reads - ie, a bit at a time. And my parentheses denote extra or incidental info that may not be needed but may pre-empt future questions or make readers aware of possible issues or alternatives.
Re one Comp per door hence one "quad pack" LM399 for 4 doors - yes, BUT...
It may be possible to do all (or 2) with a single comparator.
EG - from the National LM339 Datasheet page 5 is the following "OR" circuit - ie, output f is OFF if A or B or C are high.
- with thanks to National Semiconductor
Firstly, that circuit is merely an example. You would use different resistor values and have a different Ref voltage.
Secondly, merely to explain how it behaves (without going into the resistive voltage divider Voltages that appear), I've written the following.
NOTE - I thought the circuit was wrong but even I got confused about "ON" versus "high" or "low". Don't worry about such "[Logic" issues - they'll blowmy your brain. Suffice to say it is all easy to change later if you get confused (ie, swap + & - inputs).
If output f is OFF, the 3k resistor to V+ pulls f high (aka Logic 1), ie...
If any of inputs A or B or C go high to V+, then the + input voltage is higher than the Ref - input voltage (+0.075V in that circuit) and hence the output is off (high).
If no inputs are high, then the inverting (-) input's voltage is higher than the non-inverting (+) input thereby turning the output (transistor) on which pulls output f low to GND.
(So yes oldfart, that circuit is correct. Of course it is - it's National!)
The point being that if you only want one output if any door is open (or closed, whatever), then you could use that circuit.
It's the same if you only want to combine 2 doors so you only need one chip (LM339) for the lot.
Or combine more so that you have spare comparators to invert or buffer the output... (that's another story!)
And now your brain should well and truly be fried! As if circuitry isn't bad enough, you have also been introduced to Logic circuits where low & high and 0 & 1 and off or on are totally arbitrary and depend on what you call "active" (eg, high, or 1, or 1 but low, or....
Oh yeah, just as these comparators are almost infinitely configurable, so too there are almost infinite ways to do this.
However IMO it's either something DIY like this, or DIY using a PIC 08M2 etc, or more expensive circuits whether commercial & processor or analog based etc.
PS - IMO there no need to include the previous reply in your reply. Of course that's merely my view (I like to save screen space, bytes, & paper).
If I do, I usually only quote the relevant lines(s) else delete and use dots ... to replace the bulk between the first & last lines.
All I reckon you need to understand is...
- a comparator is a device (chip, circuit, (gate??) with 2 inputs and an output.
- the output is ON when the comp's '+' input has a lower voltage than its '-' input.
NOTE - that + & - input has nothing to do with +ve or -ve voltage; it's merely the labels used to designate which input, namely non-inverting (+) or inverting (-). That jargon comes from Op Amps (Operational Amplifiers) on which Comparators are based. (Instead of buying quad OpAmp chips/integrated-circuits) and adding components to make them into Comparators, manufacturers have already done that in chips like the LM339.)
- you connect your tested voltage to one input.
- the other input has the 'reference' voltage - ie, the voltage where you want the output to turn on or off (aka change state).
- the Ref voltage is set using a (resistive) voltage divider (see Wiki).
That's basically it.
The other considerations are whether it's to be on or off when the tested/probed voltage is above or below the Ref voltage [that determines if the Ref is a + input or - input and hence tested input is - or + (ie, inverting or non-inverting) respectively] and misc other things...
The Misc's include supplying power to the Comp circuit (ie, the chip) and whether the output can handle the load.
Also voltage supply & ranges but that's not an issue since the LM339 etc uses a "single supply" (eg, +12V & GND, not +12V, 0V/GND and -12V) and your sampled voltage falls within its 0V to +12V range. (When I say +12V, I really mean whatever voltage the car is - eg, 10V to 14.4V etc.)
Then there are esoteric misc's like spike protection, noise filtering, tested voltage variation (from what the book said) etc. That's also called bluddy OldFart's rambling and is probably not an issue in this case. Or to paraphrase, an LM399 is cheap enough to suck and see and then worry about that esoteric crap if required (or if going into production...).
So yet again I have added extra ramble to a mere 'simple understanding', but maybe it will now be clearer.
BTW - my replies often take several reads - ie, a bit at a time. And my parentheses denote extra or incidental info that may not be needed but may pre-empt future questions or make readers aware of possible issues or alternatives.
Re one Comp per door hence one "quad pack" LM399 for 4 doors - yes, BUT...
It may be possible to do all (or 2) with a single comparator.
EG - from the National LM339 Datasheet page 5 is the following "OR" circuit - ie, output f is OFF if A or B or C are high.
- with thanks to National Semiconductor
Firstly, that circuit is merely an example. You would use different resistor values and have a different Ref voltage.
Secondly, merely to explain how it behaves (without going into the resistive voltage divider Voltages that appear), I've written the following.
NOTE - I thought the circuit was wrong but even I got confused about "ON" versus "high" or "low". Don't worry about such "[Logic" issues - they'll blow
If output f is OFF, the 3k resistor to V+ pulls f high (aka Logic 1), ie...
If any of inputs A or B or C go high to V+, then the + input voltage is higher than the Ref - input voltage (+0.075V in that circuit) and hence the output is off (high).
If no inputs are high, then the inverting (-) input's voltage is higher than the non-inverting (+) input thereby turning the output (transistor) on which pulls output f low to GND.
(So yes oldfart, that circuit is correct. Of course it is - it's National!)
The point being that if you only want one output if any door is open (or closed, whatever), then you could use that circuit.
It's the same if you only want to combine 2 doors so you only need one chip (LM339) for the lot.
Or combine more so that you have spare comparators to invert or buffer the output... (that's another story!)
And now your brain should well and truly be fried! As if circuitry isn't bad enough, you have also been introduced to Logic circuits where low & high and 0 & 1 and off or on are totally arbitrary and depend on what you call "active" (eg, high, or 1, or 1 but low, or....
Oh yeah, just as these comparators are almost infinitely configurable, so too there are almost infinite ways to do this.
However IMO it's either something DIY like this, or DIY using a PIC 08M2 etc, or more expensive circuits whether commercial & processor or analog based etc.
PS - IMO there no need to include the previous reply in your reply. Of course that's merely my view (I like to save screen space, bytes, & paper).
If I do, I usually only quote the relevant lines(s) else delete and use dots ... to replace the bulk between the first & last lines.
Posted By: KPierson
Date Posted: January 13, 2014 at 10:40 PM
Posted By: freqsounds
Date Posted: January 16, 2014 at 4:28 PM
Posted By: KPierson
Date Posted: January 16, 2014 at 9:13 PM
Posted By: freqsounds
Date Posted: February 03, 2014 at 4:28 PM
Posted By: freqsounds
Date Posted: February 03, 2014 at 8:00 PM
Alright, so I was able to study all this context as I was snowed in all week last week. After 3 trips to the electronics shop, two circuit boards, and two soldering iron tips, I was able to get it working!

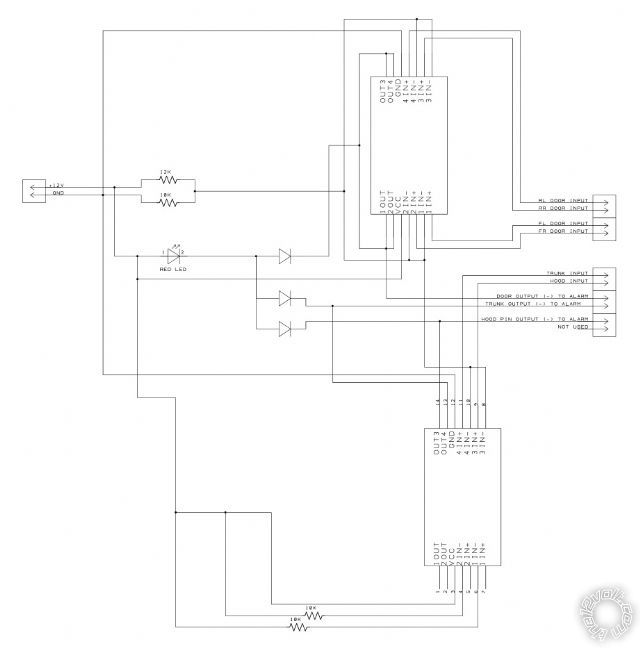

I attached a schematic of what I used. Please keep in mind this is my first schematic, and some info may not be 'standard' or 'correct'.
I had to put the threshold voltage on pin 4, and the input on pin 5. The reason is because if a door is opened, the voltage will drop to 4.1V. If all the other doors were closed, it would keep ground on the outputs. So by flipping the polarity on the LM339's inputs, the outputs will see ground when the voltage drops below the threshold.
In addition, I couldn't diode isolate all 4 doors into one input on the LM339. The reason is because with all doors closed, it would show 7.4V on the input. If a door was opened, that door would drop to 4.1V, but the other 3 doors would remain at 7.4V, and the highest voltage wins. Simply put, the voltage would never fall below the threshold unless all doors were opened at the same time.
In my schematic, I added an LED to the circuit. This will allow me to see at a glance whether the zone is triggered. According to the Service Manual for the Saab, the hood and trunk pins work the same way -- resistance based triggers. So I used a second LM339. As you stated, the unused inputs need to be terminated to eliminate false readings. So because we inverted the polarity of the inputs, I wired up a 10k resistor to the +12V instead of GND (not sure if the resistor was actually required though - it worked with or without).
Alright, back to the LED. With 3 separate triggers in this module, each output was spliced and diode isolated to the LED (if that makes sense). The (+) side of the LED to direct +12V, and the GND to the anodes of the diodes. This way if a zone is triggered, the door, trunk, and hood don't all trigger at once.

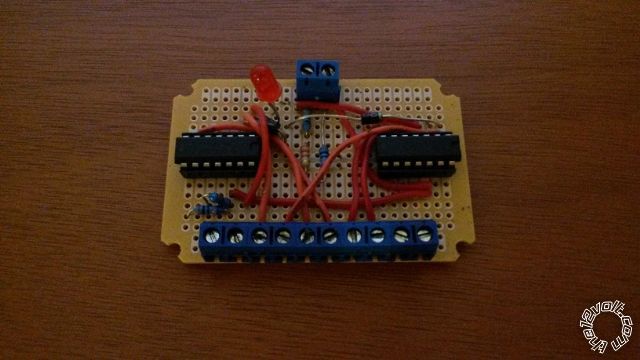

I tested the circuit as I was building it using a battery charger at 2A.
I haven't put it in the car yet, but I'm pretty confident it will work. I tested using a potentiometer on each input of the circuit.
Thanks for everything guys! I'm glad this was able to work out, because this proximity sensor has been going off every night a cat crawls under the car. Neighbors are pretty mad! xD
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
I attached a schematic of what I used. Please keep in mind this is my first schematic, and some info may not be 'standard' or 'correct'.
I had to put the threshold voltage on pin 4, and the input on pin 5. The reason is because if a door is opened, the voltage will drop to 4.1V. If all the other doors were closed, it would keep ground on the outputs. So by flipping the polarity on the LM339's inputs, the outputs will see ground when the voltage drops below the threshold.
In addition, I couldn't diode isolate all 4 doors into one input on the LM339. The reason is because with all doors closed, it would show 7.4V on the input. If a door was opened, that door would drop to 4.1V, but the other 3 doors would remain at 7.4V, and the highest voltage wins. Simply put, the voltage would never fall below the threshold unless all doors were opened at the same time.
In my schematic, I added an LED to the circuit. This will allow me to see at a glance whether the zone is triggered. According to the Service Manual for the Saab, the hood and trunk pins work the same way -- resistance based triggers. So I used a second LM339. As you stated, the unused inputs need to be terminated to eliminate false readings. So because we inverted the polarity of the inputs, I wired up a 10k resistor to the +12V instead of GND (not sure if the resistor was actually required though - it worked with or without).
Alright, back to the LED. With 3 separate triggers in this module, each output was spliced and diode isolated to the LED (if that makes sense). The (+) side of the LED to direct +12V, and the GND to the anodes of the diodes. This way if a zone is triggered, the door, trunk, and hood don't all trigger at once.
I tested the circuit as I was building it using a battery charger at 2A.
I haven't put it in the car yet, but I'm pretty confident it will work. I tested using a potentiometer on each input of the circuit.
Thanks for everything guys! I'm glad this was able to work out, because this proximity sensor has been going off every night a cat crawls under the car. Neighbors are pretty mad! xD
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: freqsounds
Date Posted: February 09, 2014 at 11:52 PM
Hey guys, I think I'm back to the drawing board on this one. I put the circuit in the car and it works great! For the first 10 minutes...
What the service manual doesn't tell you is that the BCM cuts off the voltage on these switches after 10 minutes. When metering, the lines are dead, around .3V until the BCM 'wakes up'
So, other than taking a before-and-after reading on the resistors, is there any way I can just detect the resistance itself where voltage isn't a factor?
I smell a new circuit!
lol
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
What the service manual doesn't tell you is that the BCM cuts off the voltage on these switches after 10 minutes. When metering, the lines are dead, around .3V until the BCM 'wakes up'
So, other than taking a before-and-after reading on the resistors, is there any way I can just detect the resistance itself where voltage isn't a factor?
I smell a new circuit!
lol-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: freqsounds
Date Posted: February 11, 2014 at 2:04 PM
Posted By: oldspark
Date Posted: February 11, 2014 at 5:50 PM
Posted By: freqsounds
Date Posted: February 11, 2014 at 6:26 PM
Posted By: oldspark
Date Posted: February 11, 2014 at 7:18 PM
Posted By: freqsounds
Date Posted: February 11, 2014 at 7:49 PM
oldspark wrote:
Relays for the 339?
My first comment is that - except if ON when 'the power source' is on (ie, IGN on or alternator is charging) - I consider it silly to use something to turn something on when that use more power than the thing being turned on. IE - a relay consumes say 60mA to 250mA whereas the LM339 itself consumes ~2mA, maybe 5mA.
I agree, and I was thinking the relay would only be on for 10 minutes tops, and using ground while armed, it would only power the relay if the car was armed.
Also, thinking about how you can 'pull' a voltage, what if I diode isolate the door triggers and use a resistor to 'pull' +12V when the lines die? This would prevent the LM339 from triggering, right?
I'm just trying to think of some options!
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: oldspark
Date Posted: February 12, 2014 at 2:53 AM
To pull a voltage you first have to convert it into doll form...
Sorry - wrong forum...
I re-read this thread to see if I have understood correctly and noticed your " I couldn't diode isolate all 4 doors into one input on the LM339...". That's where you'd use the circuit I posted on page 1. Each door goes to one resistor (ie, A, B, C, or D).
Assume the Ref signal is set correctly near the 'normal' door outputs - ie, with all doors closed there is a certain voltage at the 339's + input.
When one door opens, it lowers the voltage to the 339's + which is enough to flip the 339's output.
Forget the detail for now - even I don't know if + has to be greater than - for the output to be on, or off... I'd have to research that - ie, re-read what I wrote earlier. The point is the principle. (IMO get the high-level aka concept right, then you merely work out or drill down into the details. That's how I used to do the impossible like electronic Haldas, dim fluorescent lights, impossible software tasks, faster than light travel (anti-grav), etc.)
The concept here is:
- you know diode isolating 4 doors to ONE point means the highest voltage overrides...
- but connecting each door thru a diode to one of the ABCD 100k resistors is NOT the same point...
- and (intuitively?) if all inputs are 7V then 339 + is 7V but if ONE of those drops to 3V then so too will the 339's + input.
I used 7V & 3V to approximate whatever your door voltages are (details... merely details) and to make this next line easier:
If one input goes low, the 339 + will be 6V.
If 2, it's 5V. 3 => 4V.
And if all 4 doors are 3V, then 339 + is 3V.
Anyhow, hence you'd set the Ref voltage (339 -) to 6.5V.
And if I've confused the 339 + & - then swap those inputs in the above. (Mere details - but you said you had to swap... but that might have been based another circuit... Ah, details!)
BTW - diodes would not be required for the page 1 circuit/diagram since the doors are joined via 100k resistors (hence 200k between 2 doors) and that 100k is much bigger than the door's max resistance of 1.8k. (IOW the current thru the 100k's are negligible compared to the 1.8k etc.)
Diodes would be used if the resistances were of similar magnitude, or diodes could be used to ensure isolation. They'd be nice to omit for calculation purposes, but since the REF voltage would be adjustable via a trimpot (variable resistor aka TRIMable POTentiometer), it's no big deal.
And you can usually change 'a high voltage overriding lower' to 'a low voltage overriding higher' by changing diode direction, and maybe pull up-or-down resistors etc. But lets forget such details for now. (Or rather, let ME forget about them!)
Ok, I digressed.
But for the sake of readdressing a missed issue, or pointing out the minor yet major difference between OR-ing aka diode-joining into ONE point as opposed to joining via different inputs, or alternatively joining via resistors to a single point...
But I'll adjourn here and address the lost power problem in my next reply.
Sorry - wrong forum...
I re-read this thread to see if I have understood correctly and noticed your " I couldn't diode isolate all 4 doors into one input on the LM339...". That's where you'd use the circuit I posted on page 1. Each door goes to one resistor (ie, A, B, C, or D).
Assume the Ref signal is set correctly near the 'normal' door outputs - ie, with all doors closed there is a certain voltage at the 339's + input.
When one door opens, it lowers the voltage to the 339's + which is enough to flip the 339's output.
Forget the detail for now - even I don't know if + has to be greater than - for the output to be on, or off... I'd have to research that - ie, re-read what I wrote earlier. The point is the principle. (IMO get the high-level aka concept right, then you merely work out or drill down into the details. That's how I used to do the impossible like electronic Haldas, dim fluorescent lights, impossible software tasks, faster than light travel (anti-grav), etc.)
The concept here is:
- you know diode isolating 4 doors to ONE point means the highest voltage overrides...
- but connecting each door thru a diode to one of the ABCD 100k resistors is NOT the same point...
- and (intuitively?) if all inputs are 7V then 339 + is 7V but if ONE of those drops to 3V then so too will the 339's + input.
I used 7V & 3V to approximate whatever your door voltages are (details... merely details) and to make this next line easier:
If one input goes low, the 339 + will be 6V.
If 2, it's 5V. 3 => 4V.
And if all 4 doors are 3V, then 339 + is 3V.
Anyhow, hence you'd set the Ref voltage (339 -) to 6.5V.
And if I've confused the 339 + & - then swap those inputs in the above. (Mere details - but you said you had to swap... but that might have been based another circuit... Ah, details!)
BTW - diodes would not be required for the page 1 circuit/diagram since the doors are joined via 100k resistors (hence 200k between 2 doors) and that 100k is much bigger than the door's max resistance of 1.8k. (IOW the current thru the 100k's are negligible compared to the 1.8k etc.)
Diodes would be used if the resistances were of similar magnitude, or diodes could be used to ensure isolation. They'd be nice to omit for calculation purposes, but since the REF voltage would be adjustable via a trimpot (variable resistor aka TRIMable POTentiometer), it's no big deal.
And you can usually change 'a high voltage overriding lower' to 'a low voltage overriding higher' by changing diode direction, and maybe pull up-or-down resistors etc. But lets forget such details for now. (Or rather, let ME forget about them!)
Ok, I digressed.
But for the sake of readdressing a missed issue, or pointing out the minor yet major difference between OR-ing aka diode-joining into ONE point as opposed to joining via different inputs, or alternatively joining via resistors to a single point...
But I'll adjourn here and address the lost power problem in my next reply.
Posted By: oldspark
Date Posted: February 12, 2014 at 3:28 AM
So the BCM shuts off the voltage to the doors. Hence you cannot 'sense' using the 339 etc.
I therefore wonder how the vehicle/BCM senses when the door opens, but let's (or let me) not worry about that for now.
[ Apologies. Tho heavy headed this morning, I now seem to be in a non-thinking state of mind - ie, a refusal to think. That may be a reflection of locals and their reaction to recent political actions, fires, and general ongoing moronics. I then tend to go into shutdown mode - I get sick of repeating the same decades old lines to the same old audience. ]
My initial thought - series diode between the BCM and each of the doors to isolate the BCM. You supply power via a diode and resistor to each door to continue using the 339 approach.
Issues:
Will the diode effect the BCM's measurement of the doors?
Ans: Maybe or probably not if the BCM has a typically wide tolerance for the voltages measured, or if Schottky diodes are used (ie, a 0.3V drop instead of 0.6-0.7V)
What resistor do you use?
Ans: I had inconsistencies when calculating the resistance used by the BCM to the doors. But that could be solved with more info - ie, what system voltage was used for the Service Manual's statements? (ie, 'The voltage measured will be approximately 4.1V when the breaker is made, and approximately 7.4V when open...', or BCM circuit, or a proper solution to various simultaneous equations...
Djävla SAABs! (That's Swedish for bluddy SAABs. More accurately doggamned SAABs (or statanic, devilish, etc).)
Of course maybe I could blame GM if they are the true designers of the bluddy SAAB.
Now if it was a SAAB Viggen I'm sure I'd be more enthusiastic. After all and plane that is laughed at by NATO et al but is later copied by many, and can shot down SR-71 Blackbirds, outmaneuver MIGs, etc...
I guess I'm just thinking aloud. (And whinging a-very-loud.)
And giving you some electronics (conceptual) theory for the heck of it.
Can't you just buy and old 3-cylider 2-stroke SAAB?
Till next...
I therefore wonder how the vehicle/BCM senses when the door opens, but let's (or let me) not worry about that for now.
[ Apologies. Tho heavy headed this morning, I now seem to be in a non-thinking state of mind - ie, a refusal to think. That may be a reflection of locals and their reaction to recent political actions, fires, and general ongoing moronics. I then tend to go into shutdown mode - I get sick of repeating the same decades old lines to the same old audience. ]
My initial thought - series diode between the BCM and each of the doors to isolate the BCM. You supply power via a diode and resistor to each door to continue using the 339 approach.
Issues:
Will the diode effect the BCM's measurement of the doors?
Ans: Maybe or probably not if the BCM has a typically wide tolerance for the voltages measured, or if Schottky diodes are used (ie, a 0.3V drop instead of 0.6-0.7V)
What resistor do you use?
Ans: I had inconsistencies when calculating the resistance used by the BCM to the doors. But that could be solved with more info - ie, what system voltage was used for the Service Manual's statements? (ie, 'The voltage measured will be approximately 4.1V when the breaker is made, and approximately 7.4V when open...', or BCM circuit, or a proper solution to various simultaneous equations...
Djävla SAABs! (That's Swedish for bluddy SAABs. More accurately doggamned SAABs (or statanic, devilish, etc).)
Of course maybe I could blame GM if they are the true designers of the bluddy SAAB.
Now if it was a SAAB Viggen I'm sure I'd be more enthusiastic. After all and plane that is laughed at by NATO et al but is later copied by many, and can shot down SR-71 Blackbirds, outmaneuver MIGs, etc...
I guess I'm just thinking aloud. (And whinging a-very-loud.)
And giving you some electronics (conceptual) theory for the heck of it.
Can't you just buy and old 3-cylider 2-stroke SAAB?
Till next...
Posted By: freqsounds
Date Posted: February 12, 2014 at 6:51 AM
Posted By: oldspark
Date Posted: February 12, 2014 at 9:32 AM
To paraphrase:
From BCM thru a diode with line end towards door (ie, 1.8k & 620R to GND.
"Your" resistor from +12V to line-end/door-resistors.
So your resistor needs to be similar to the BCM's internal resistance, AND its +12V is only on when the BCM turns off. (Ah - we need a comparator to sense when the BCM is off...)
And your +12V should be whatever voltage the BCM uses internally (maybe 10.2V?), but that might not matter if the REF voltage can be set to a suitable value.
Have you ever heard of a PICAXE - specifically (say) the 08M2? They are like a self-contained microprocessor circuit but all on one chip.
The 08M2 has 8 pins and has timers, counters, analog to digital converters (ADCs), a DAC (digital to analog coverter), programming space for ~2,000 instructions, etc. About $3. Consumes 14uA (or was it 14nA?) in standby mode, blah blah blah. Programmable via a serial port (legacy PC stuff or via USB-serial converter).
Usually all PICAXE pins - EXCEPT the +V & 0V supply pins and one dedicated input - can be configured as inputs or outputs. Hence the 08M2 can have 5 inputs and 1 output, or 4 inputs & 2 outputs etc.
Minimum config is a 78L05 5V voltage regulator plus 2 programming resistors; then add whatever input and output circuitry is needed.
Programming tools are free and there are heaps of open source projects & programs (see picaxeforum.co.uk).
The problem is the learning curve for programming etc, tho much can often be cut&paste with a few modifications. (Programs are often much the same - it's merely what they input and output that varies. Programs can often be thought of as a collection of building blocks (program segments or modules) that are put together in different orders to achieve a goal).
But I have been surprised how some have adopted the 08M2 (or bigger/more_complex equivalents) to substitute tricky or complex circuitry, and done so with apparent ease. (I've suggested it a few times on mp3car.com and been impressed by its uptake. FYI - I've been meaning to use PICs etc for20 30 years & finally bought a few maybe 5 years ago, but have yet to actually use one!)
I'm thinking that the PIC could be programmed along the lines of "if I see 7V or 4V, then... but if I don't see that...".
If not the expected 7V or 4V, then maybe 'your' external resistor of say 10k** supplies the door voltage (which will then be much smaller than with the BCM - eg, 0.7V & 0.4V).
Sir PIC Esq then works like:
- if 7V or 4V or in between the BCM is on and hence the doors are closed, or one is open etc.
- if 0.7V or 0.4V or between, then the BCM is off (not that I care) and hence doors are closed or one open etc.
The "in between" voltages will be similar to that A, B, C, D input comparator circuit if all combined to one input, tho you could combine 2 into 1 input (hence 2 PIC inputs for 4 doors), or use one PIC input per door. (Tho the latter might require 4 ADCs and I think the 08M2 only has 3, but hey, they're mere details.)
** The 10k or whatever resistor is reasonably larger than the BCM's resistance so it does not effect the BCM/door voltages - and hence no diode/s needed (unless the BCM is so sensitive that that low current could wreck its inputs when it is powered off).
Sir PIC also has the error routines like if 12V or 10.2V then something is wrong and same too for 0V (tho in practice 0V should always be programmed as "less than z Volts" where Z is lower than what we work with (eg, 0.4V) but high enough to allow for noise and wiring resistance etc - eg, Zero Volts is less than 0.2V.
Incidentally, the voltages I mention above are our real world voltages - ie, the actual door voltages.
These will be lower for the PIC because the PIC only handles voltages up to its own voltage supply (ie, 5V with a 7805 regulator, but can be down to ~2V) and we therefore scale down our voltages which will be up to 10.2V or 12V or 12.7V or maybe 14.4V etc.
Scaling down is a techy way of saying a two resistor voltage divider. (IE, it's easy in reality.)
But anything is possible. Maybe Sir 08M2 turns on the door supply if it senses that the BCM is off. (Hence one output for that.)
Maybe it alerts you in case of a fault if the BCM etc does not do that (it should!).
Or add your hood switch; maybe a boot/trunk switch.
The beauty of uPCs and PICs etc is that once you have the interfacing (input & output circuitry) it is simply (LOL?) a matter of programming.
You reprogram changes to voltage set points etc - there is no trim-potting or component changes.
You might start by using 4 PIC inputs but then add stuff that requires more inputs or outputs. You might then combine the 4 inputs - move the other 3 inputs to the one and modify you program. (That assumes each input (door) has its own series resistor, but a design should probably have that for various electrical reasons but especially so that a capacitor can be added to filter out any noise on each input [an RC filter is much easier than software solutions].)
And a PIC can operate with negligible current (uA) so it can be on all the time.
Does any or all of that make sense?
Or do you want to stick with the analog solution for now?
I reckon we might be close to the analog/339 solution, but if it does get too complex...
But it's bed time. My alarm will show no mercy in less then 6 hours...
PS - there are various considerations for the 08M2 like choice of inputs - eg, might be able to have 5 inputs but there are only (maybe?) 3 ADCs), but they all have solutions (like maybe digital inputs but they'd only be good for sensing if eg IGN was on or off, not if 7V or 4V... unless a zenor circuit was used...
...)
Details. Mere details. (Did I mention the learning curve...? )
From BCM thru a diode with line end towards door (ie, 1.8k & 620R to GND.
"Your" resistor from +12V to line-end/door-resistors.
So your resistor needs to be similar to the BCM's internal resistance, AND its +12V is only on when the BCM turns off. (Ah - we need a comparator to sense when the BCM is off...)
And your +12V should be whatever voltage the BCM uses internally (maybe 10.2V?), but that might not matter if the REF voltage can be set to a suitable value.
Have you ever heard of a PICAXE - specifically (say) the 08M2? They are like a self-contained microprocessor circuit but all on one chip.
The 08M2 has 8 pins and has timers, counters, analog to digital converters (ADCs), a DAC (digital to analog coverter), programming space for ~2,000 instructions, etc. About $3. Consumes 14uA (or was it 14nA?) in standby mode, blah blah blah. Programmable via a serial port (legacy PC stuff or via USB-serial converter).
Usually all PICAXE pins - EXCEPT the +V & 0V supply pins and one dedicated input - can be configured as inputs or outputs. Hence the 08M2 can have 5 inputs and 1 output, or 4 inputs & 2 outputs etc.
Minimum config is a 78L05 5V voltage regulator plus 2 programming resistors; then add whatever input and output circuitry is needed.
Programming tools are free and there are heaps of open source projects & programs (see picaxeforum.co.uk).
The problem is the learning curve for programming etc, tho much can often be cut&paste with a few modifications. (Programs are often much the same - it's merely what they input and output that varies. Programs can often be thought of as a collection of building blocks (program segments or modules) that are put together in different orders to achieve a goal).
But I have been surprised how some have adopted the 08M2 (or bigger/more_complex equivalents) to substitute tricky or complex circuitry, and done so with apparent ease. (I've suggested it a few times on mp3car.com and been impressed by its uptake. FYI - I've been meaning to use PICs etc for
I'm thinking that the PIC could be programmed along the lines of "if I see 7V or 4V, then... but if I don't see that...".
If not the expected 7V or 4V, then maybe 'your' external resistor of say 10k** supplies the door voltage (which will then be much smaller than with the BCM - eg, 0.7V & 0.4V).
Sir PIC Esq then works like:
- if 7V or 4V or in between the BCM is on and hence the doors are closed, or one is open etc.
- if 0.7V or 0.4V or between, then the BCM is off (not that I care) and hence doors are closed or one open etc.
The "in between" voltages will be similar to that A, B, C, D input comparator circuit if all combined to one input, tho you could combine 2 into 1 input (hence 2 PIC inputs for 4 doors), or use one PIC input per door. (Tho the latter might require 4 ADCs and I think the 08M2 only has 3, but hey, they're mere details.)
** The 10k or whatever resistor is reasonably larger than the BCM's resistance so it does not effect the BCM/door voltages - and hence no diode/s needed (unless the BCM is so sensitive that that low current could wreck its inputs when it is powered off).
Sir PIC also has the error routines like if 12V or 10.2V then something is wrong and same too for 0V (tho in practice 0V should always be programmed as "less than z Volts" where Z is lower than what we work with (eg, 0.4V) but high enough to allow for noise and wiring resistance etc - eg, Zero Volts is less than 0.2V.
Incidentally, the voltages I mention above are our real world voltages - ie, the actual door voltages.
These will be lower for the PIC because the PIC only handles voltages up to its own voltage supply (ie, 5V with a 7805 regulator, but can be down to ~2V) and we therefore scale down our voltages which will be up to 10.2V or 12V or 12.7V or maybe 14.4V etc.
Scaling down is a techy way of saying a two resistor voltage divider. (IE, it's easy in reality.)
But anything is possible. Maybe Sir 08M2 turns on the door supply if it senses that the BCM is off. (Hence one output for that.)
Maybe it alerts you in case of a fault if the BCM etc does not do that (it should!).
Or add your hood switch; maybe a boot/trunk switch.
The beauty of uPCs and PICs etc is that once you have the interfacing (input & output circuitry) it is simply (LOL?) a matter of programming.
You reprogram changes to voltage set points etc - there is no trim-potting or component changes.
You might start by using 4 PIC inputs but then add stuff that requires more inputs or outputs. You might then combine the 4 inputs - move the other 3 inputs to the one and modify you program. (That assumes each input (door) has its own series resistor, but a design should probably have that for various electrical reasons but especially so that a capacitor can be added to filter out any noise on each input [an RC filter is much easier than software solutions].)
And a PIC can operate with negligible current (uA) so it can be on all the time.
Does any or all of that make sense?
Or do you want to stick with the analog solution for now?
I reckon we might be close to the analog/339 solution, but if it does get too complex...
But it's bed time. My alarm will show no mercy in less then 6 hours...
PS - there are various considerations for the 08M2 like choice of inputs - eg, might be able to have 5 inputs but there are only (maybe?) 3 ADCs), but they all have solutions (like maybe digital inputs but they'd only be good for sensing if eg IGN was on or off, not if 7V or 4V... unless a zenor circuit was used...
...)
Details. Mere details. (Did I mention the learning curve...?
)Posted By: freqsounds
Date Posted: February 12, 2014 at 10:40 AM
It actually makes perfect sense! I'm a web developer by trade, so hopefully it'll be easy enough to learn a new language
I will take a look into the PICAXE this afternoon to see what I'm getting into.
I almost feel like the analog solution is something 'simple'. If we could just 'disregard' any voltage less than 3V or somewhere around there, it'd be perfect! Or, set a 'default voltage' if that's even possible.
So to answer a question about the BCM. The service manual doesn't go into detail about a regulated voltage or anything like that. Metering while the car is off will yield the reference voltages (4.1 - open, 7.4 - closed, ±0.3V depending on the battery charge). I haven't tried metering these with the car running, so I don't know if these values increase as the battery is charging. But the voltage hangs around 14.0V when the engine is running. About 12.5 with the engine off.
This actually caused an issue with the original circuit, and I had to add another 2.2k resistor to lower the threshold more. At 14V, it pushed the threshold voltage too high and set the alarm off every time, thinking that 7.4V was a door opening.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
I will take a look into the PICAXE this afternoon to see what I'm getting into.
I almost feel like the analog solution is something 'simple'. If we could just 'disregard' any voltage less than 3V or somewhere around there, it'd be perfect! Or, set a 'default voltage' if that's even possible.
So to answer a question about the BCM. The service manual doesn't go into detail about a regulated voltage or anything like that. Metering while the car is off will yield the reference voltages (4.1 - open, 7.4 - closed, ±0.3V depending on the battery charge). I haven't tried metering these with the car running, so I don't know if these values increase as the battery is charging. But the voltage hangs around 14.0V when the engine is running. About 12.5 with the engine off.
This actually caused an issue with the original circuit, and I had to add another 2.2k resistor to lower the threshold more. At 14V, it pushed the threshold voltage too high and set the alarm off every time, thinking that 7.4V was a door opening.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: oldspark
Date Posted: February 12, 2014 at 4:02 PM
Ahh - then you know how easy it is to get a program right.
(Man I am using those emoticons in this thread. I rarely use those - probably a legacy of my IT experience. Where was it I said something about shutting off from involvement? Hmmm...)
(Actually I just realised - I usually work high level & drill down..., but for uPCs I preferred assembler. And oddly enough my coding was largely bug free - ie, well past power-up and well into functionality before a problem might show.)
Tho the PIC etc might be the way, I'd still like to 339 it. Probably because you already have the stuff - and have done so excellently well** - and I feel it has such an easy solution.
{ ** not meaning to patronise etc, but you said <whatever> yet have done so much so well. I think we work alike. Everything is the same, just different. However, you actually do & achieve things.
)
The charging voltage issue is solved with a voltage regulator for the 339. And it seems to confirm that the BCM is regulated (if I understood correctly), tho the ±0.3V depending on the battery charge doesn't. (Is the BCM off with the engine running? In simple theory cranking batteries vary from 12.7V to ~12.4V (20% discharged) but in practice from ~13.5V (surface charge) to ~11.5V (dead flat) and lower (under heavy loading - cranking etc).)
I might have another crack at those calculations. (I think I ended up iterating because I kept getting negative (resistance) values - hence something wrong with my calcs.)
Download the 3 intro refs to PICAXEs from picaxe.com, namely PICAXE Manuals.
OMG - they've added a 4th "Using Flowcharts". Who the heck would use them (except post-design for documentation for others)? Tho PICAXES may be different in that the flowcharting tools can translate into programs. Or maybe that can be done now for all languages?? (NB. I'm Oldspark = OldFart.)
Anyhow, work calls....
(Man I am using those emoticons in this thread. I rarely use those - probably a legacy of my IT experience. Where was it I said something about shutting off from involvement? Hmmm...)
(Actually I just realised - I usually work high level & drill down..., but for uPCs I preferred assembler. And oddly enough my coding was largely bug free - ie, well past power-up and well into functionality before a problem might show.)
Tho the PIC etc might be the way, I'd still like to 339 it. Probably because you already have the stuff - and have done so excellently well** - and I feel it has such an easy solution.
{ ** not meaning to patronise etc, but you said <whatever> yet have done so much so well. I think we work alike. Everything is the same, just different. However, you actually do & achieve things.
)
The charging voltage issue is solved with a voltage regulator for the 339. And it seems to confirm that the BCM is regulated (if I understood correctly), tho the ±0.3V depending on the battery charge doesn't. (Is the BCM off with the engine running? In simple theory cranking batteries vary from 12.7V to ~12.4V (20% discharged) but in practice from ~13.5V (surface charge) to ~11.5V (dead flat) and lower (under heavy loading - cranking etc).)
I might have another crack at those calculations. (I think I ended up iterating because I kept getting negative (resistance) values - hence something wrong with my calcs.)
Download the 3 intro refs to PICAXEs from picaxe.com, namely PICAXE Manuals.
OMG - they've added a 4th "Using Flowcharts". Who the heck would use them (except post-design for documentation for others)? Tho PICAXES may be different in that the flowcharting tools can translate into programs. Or maybe that can be done now for all languages?? (NB. I'm Oldspark = OldFart.)
Anyhow, work calls....
Posted By: freqsounds
Date Posted: February 12, 2014 at 4:39 PM
Haha! As long as I know you're not mad at me for trying!
I have that drive where I can't take 'no' for an answer, especially when it's something that I really want to see done. I'm always willing to learn and explore new areas. I'm no expert, I don't have a 'specialty', but I try to get at least a little experience in everything. I appreciate the compliment!
I would like to see the 339 work too, just because it seems so simple, and this 'roadblock' can't be the only thing to hold the project back!
The BCM stays on while the engine is running. I don't know if it temporarily shuts off during starting. I'm not even sure how I'd test that (during starting) other than metering the wires while cranking.
The battery charge I speak of is from having the car 'awake' too long. I think the last time I had 3.9V with a door open from repetitively opening and closing doors. So the car might be regulating the voltage, but I'm not entirely sure, and I'm not sure who might know.
I haven't had a chance to look up the PICAXEs yet. But I will take a look at those links this evening.
I've heard of Flowchart programming -- Microsoft Visio can translate a flowchart into simple code. It can generate database scripts based from a database diagram as well. So it might be something they're introducing so the 12 year old kids have something to do haha!
I have two installs tonight, and hopefully afterward, I can pull the circuit and play around with it. It's snowing here, but I should be able to get out there as long as I have my torpedo heater!
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
I have that drive where I can't take 'no' for an answer, especially when it's something that I really want to see done. I'm always willing to learn and explore new areas. I'm no expert, I don't have a 'specialty', but I try to get at least a little experience in everything. I appreciate the compliment!
I would like to see the 339 work too, just because it seems so simple, and this 'roadblock' can't be the only thing to hold the project back!
The BCM stays on while the engine is running. I don't know if it temporarily shuts off during starting. I'm not even sure how I'd test that (during starting) other than metering the wires while cranking.
The battery charge I speak of is from having the car 'awake' too long. I think the last time I had 3.9V with a door open from repetitively opening and closing doors. So the car might be regulating the voltage, but I'm not entirely sure, and I'm not sure who might know.
I haven't had a chance to look up the PICAXEs yet. But I will take a look at those links this evening.
I've heard of Flowchart programming -- Microsoft Visio can translate a flowchart into simple code. It can generate database scripts based from a database diagram as well. So it might be something they're introducing so the 12 year old kids have something to do haha!
I have two installs tonight, and hopefully afterward, I can pull the circuit and play around with it. It's snowing here, but I should be able to get out there as long as I have my torpedo heater!
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: freqsounds
Date Posted: February 12, 2014 at 8:03 PM
Posted By: freqsounds
Date Posted: February 12, 2014 at 8:05 PM
Posted By: oldspark
Date Posted: February 18, 2014 at 2:25 PM
Posted By: freqsounds
Date Posted: February 18, 2014 at 8:17 PM
You're back! Thought you forgot about this simple yet impossible rig.
That does make sense, and I was going to ask you about the door inputs as well -- the 7.4V will fry a PICAXE from what I read.
So if we staged down the voltage, would the variation between the voltages be too close to detect? What I mean is, lets say a door closed is 4 volts, and an open door is 3 (after staging down). Is it sensitive enough to detect the difference? I had this problem with the LM339 after using a resistor to pull down a (+) voltage.
By the way, I took my chances and tried the circuit with what I discussed in my last post, and it failed. The circuit didn't work at all whether the door was open or closed.
I've been doing quite a bit of other research, too. The car uses the CAN Bus, and the GMLAN. As a programmer, my thoughts are that statuses are the same across the board. A left front door open in a Saab is the same data sent over the CAN as a Chevrolet with its left front door open.... right?? My theory is if I use an ADS-ALCA, I can try to read from the CAN or GMLAN with a GM firmware. It's a shot in the dark, but what are your thoughts on trying this?
I noticed something the other day. Courtesy lighting. On the bottom of the door. It only comes on when the door is open, and it comes on every time. BUT, I have to get through a molex connector to get to it, which means adding pins to the existing connector. Finding these connectors is about as easy as building a circuit to monitor the door triggers! lol, but the connectors are $40 for a 10 piece set, so I have to be sure it'll work before I spend the money!
These lights are powered by the door latch. A wire runs from the door latch to a courtesy light in the bottom of the door. When the door is opened, the light comes on. All I would have to do is monitor the wire -- I think. With the BCM turning off, it might have the same effect as the trigger wires that go to the BCM. I can meter the wires when the BCM shuts off to check for this.
So, if this fixes my door and trunk issues, the last thing I would need a solution for is the hood pin. It's set up the same way, only there isn't a light under the hood. With the hood open, the pin rests at GND. Once the hood is closed, it gets a short burst of +12V, then goes back to GND. This car has me completely baffled, and I'm surprised the damn thing even works.
Regardless, I am enjoying every second of figuring this out. Once the procedure is done, I will be the first to have successfully install an alarm/remote start in this particular model. After being tortured on SaabCentral, I'll finally have a pile of crap to rub in their faces! Saab enthusiasts are a unique, insulting, and bitter community, especially if you're a noob.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
That does make sense, and I was going to ask you about the door inputs as well -- the 7.4V will fry a PICAXE from what I read.
So if we staged down the voltage, would the variation between the voltages be too close to detect? What I mean is, lets say a door closed is 4 volts, and an open door is 3 (after staging down). Is it sensitive enough to detect the difference? I had this problem with the LM339 after using a resistor to pull down a (+) voltage.
By the way, I took my chances and tried the circuit with what I discussed in my last post, and it failed. The circuit didn't work at all whether the door was open or closed.
I've been doing quite a bit of other research, too. The car uses the CAN Bus, and the GMLAN. As a programmer, my thoughts are that statuses are the same across the board. A left front door open in a Saab is the same data sent over the CAN as a Chevrolet with its left front door open.... right?? My theory is if I use an ADS-ALCA, I can try to read from the CAN or GMLAN with a GM firmware. It's a shot in the dark, but what are your thoughts on trying this?
I noticed something the other day. Courtesy lighting. On the bottom of the door. It only comes on when the door is open, and it comes on every time. BUT, I have to get through a molex connector to get to it, which means adding pins to the existing connector. Finding these connectors is about as easy as building a circuit to monitor the door triggers! lol, but the connectors are $40 for a 10 piece set, so I have to be sure it'll work before I spend the money!
These lights are powered by the door latch. A wire runs from the door latch to a courtesy light in the bottom of the door. When the door is opened, the light comes on. All I would have to do is monitor the wire -- I think. With the BCM turning off, it might have the same effect as the trigger wires that go to the BCM. I can meter the wires when the BCM shuts off to check for this.
So, if this fixes my door and trunk issues, the last thing I would need a solution for is the hood pin. It's set up the same way, only there isn't a light under the hood. With the hood open, the pin rests at GND. Once the hood is closed, it gets a short burst of +12V, then goes back to GND. This car has me completely baffled, and I'm surprised the damn thing even works.
Regardless, I am enjoying every second of figuring this out. Once the procedure is done, I will be the first to have successfully install an alarm/remote start in this particular model. After being tortured on SaabCentral, I'll finally have a pile of crap to rub in their faces! Saab enthusiasts are a unique, insulting, and bitter community, especially if you're a noob.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: freqsounds
Date Posted: February 18, 2014 at 8:38 PM
Posted By: oldspark
Date Posted: February 18, 2014 at 10:58 PM
Posted By: KPierson
Date Posted: February 19, 2014 at 10:35 AM
Posted By: oldspark
Date Posted: February 19, 2014 at 3:32 PM
Posted By: KPierson
Date Posted: February 19, 2014 at 7:43 PM
Posted By: oldspark
Date Posted: February 20, 2014 at 4:36 AM
Posted By: KPierson
Date Posted: February 20, 2014 at 3:42 PM
Posted By: oldspark
Date Posted: February 20, 2014 at 6:39 PM
Posted By: freqsounds
Date Posted: February 24, 2014 at 8:56 AM
You guys lost me again, haha!
Would it be feasible at this point to just us a 12V micro SPST relay to kick the circuit on when the BCM is awake? I can use the GWA wire to allow the circuit to only turn on when the system is armed.
This could be easier than inventing a new wheel. Although I'd like to get the circuit working, I might do it this way temporarily until we can figure it out.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Would it be feasible at this point to just us a 12V micro SPST relay to kick the circuit on when the BCM is awake? I can use the GWA wire to allow the circuit to only turn on when the system is armed.
This could be easier than inventing a new wheel.
Although I'd like to get the circuit working, I might do it this way temporarily until we can figure it out.-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: oldspark
Date Posted: February 24, 2014 at 2:59 PM
Posted By: freqsounds
Date Posted: February 24, 2014 at 3:19 PM
I do need to sense the voltage, but only if the BCM is awake. When a door opens or the factory remote sends a command, the BCM wakes up. This would turn the circuit back on. I would just need to find a +12V source that the BCM shuts off when it goes night-night.
Ahh, gotcha! I never truly understood the Zener diodes. I had to use one for the ignition module because one of the relays needed a 1 second delay before being energized. I was lost with that part of the circuit, but followed the schematic to the exact specs.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Ahh, gotcha! I never truly understood the Zener diodes. I had to use one for the ignition module because one of the relays needed a 1 second delay before being energized. I was lost with that part of the circuit, but followed the schematic to the exact specs.
-------------
No question is stupid or not worth asking. You were once a noob, right? :)
Posted By: freqsounds
Date Posted: April 16, 2014 at 9:10 PM
