Topic: Late Model Ford Horn Connection
Posted By: the vuking
Subject: Late Model Ford Horn Connection
Date Posted: January 26, 2019 at 5:01 PM
Hi there guys just a quick question to see how you pro installers are hooking up the factory horn on 2017 ford vehicles to a - 200mA horn honk ouput on a clifford alarm ?
Replies:
Posted By: kreg357
Date Posted: January 26, 2019 at 6:13 PM
Not sure exactly which Ford vehicle you need to know about but typically a direct connection to the correct (-) Horn wire will do it.

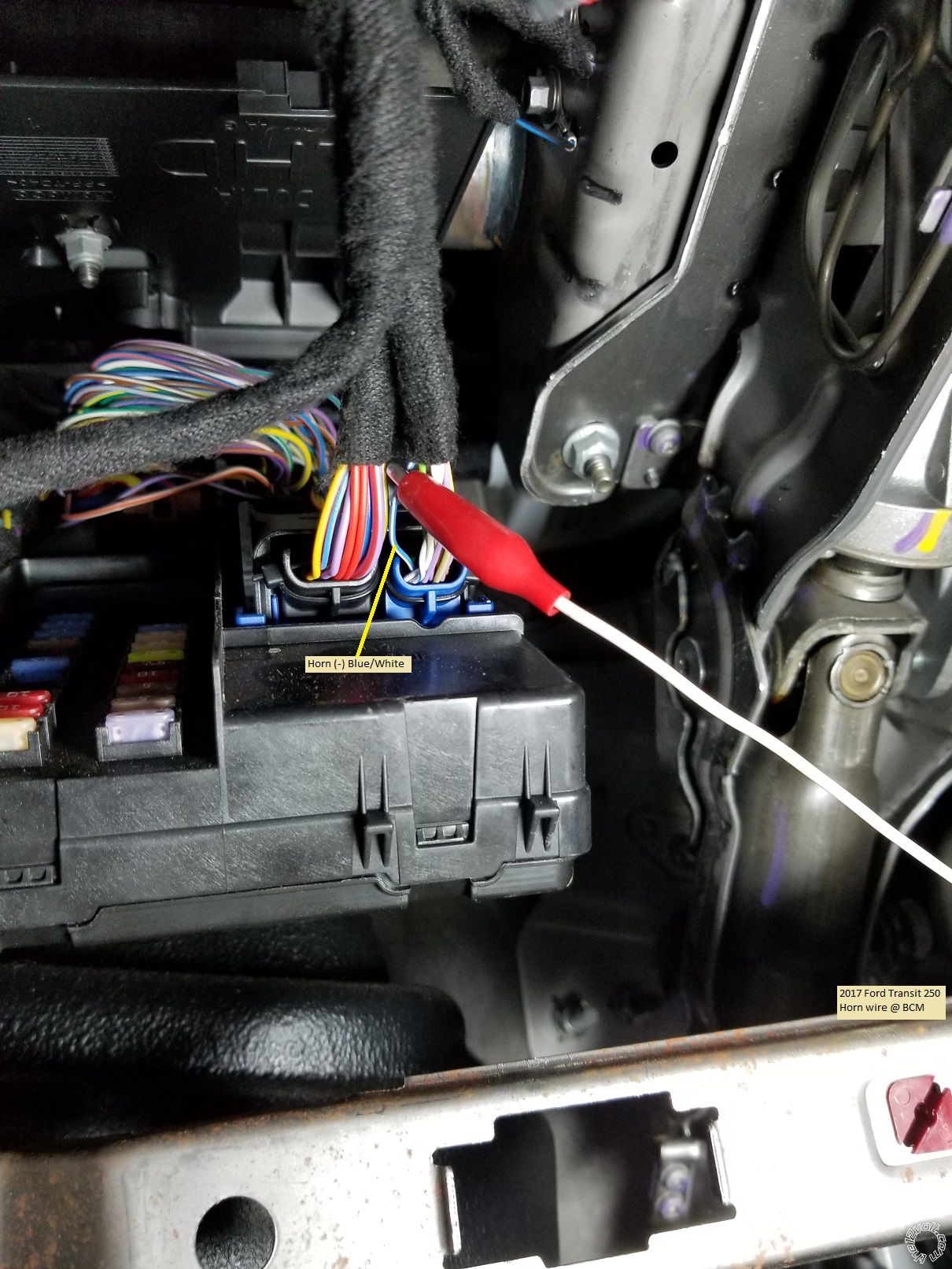

Here is a recent 2017 Ford Transit 250 horn wire connection used with an Avital system :
------------- Soldering is fun!
Posted By: the vuking
Date Posted: January 27, 2019 at 3:40 AM
Thanks Kreg this is also a Transit Van I see that the plug at the BCM in he picture above is a blue one I also have just the one blue plug at the BCM is this how I identify the plug needed ?
Posted By: kreg357
Date Posted: January 27, 2019 at 4:23 AM
Think I would go by BCM configuration. This was a full size Transit not the smaller Transit Connect. Which type Transit do you have? What year? There might even be differences between U.S. and Euro spec vehicles.
------------- Soldering is fun!
Posted By: the vuking
Date Posted: January 27, 2019 at 5:13 AM

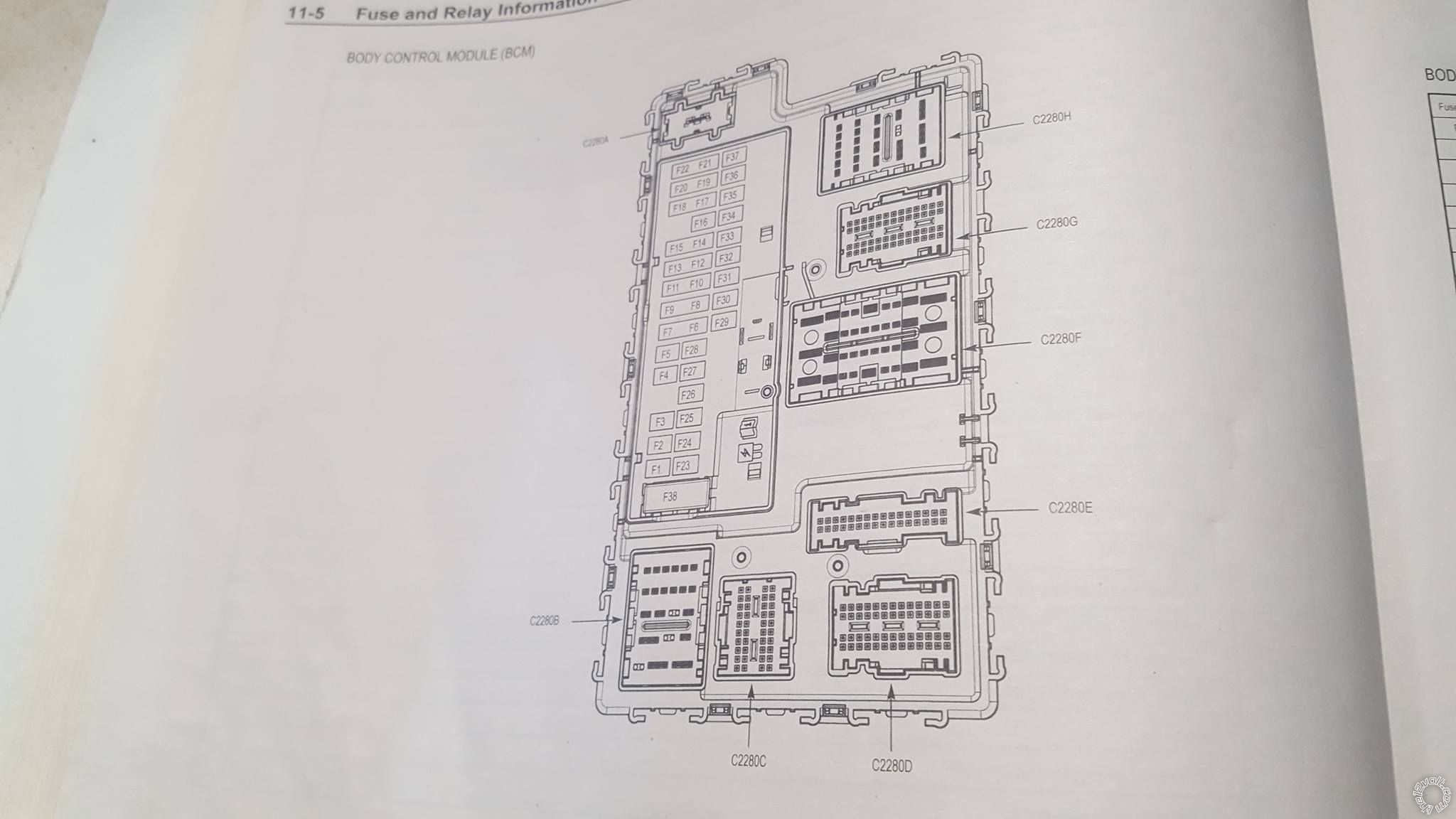

Here is the lay out of my BCM and the plug I believe it is is the one that is numbered C2280D bottom right
Posted By: kreg357
Date Posted: January 27, 2019 at 8:29 AM
I see that the color of the horn wire changes with the model and year on the various Tansit Van's in Europe. Looks like you will need to test for the horn wire using a DigitalMultiMeter. Might even find it in the steering column at the wheel plug.
------------- Soldering is fun!
Posted By: the vuking
Date Posted: January 27, 2019 at 3:00 PM
kreg357 wrote:
I see that the color of the horn wire changes with the model and year on the various Tansit Van's in Europe. Looks like you will need to test for the horn wire using a DigitalMultiMeter. Might even find it in the steering column at the wheel plug.
I will take a look in the morning thanks for your help Kreg
Posted By: the vuking
Date Posted: January 28, 2019 at 5:52 PM
Well I have had another poke about and established that there is a yellow 8 pin connector on the steering column that when unpluged the horn does not work so I would say that this is the plug that should have the wire that goes to the BCM however I could not find a wire that went to ground when the horn was pressed can anyone shed some light on this ? Thanks
Posted By: the vuking
Date Posted: January 28, 2019 at 7:03 PM
thanks for your reply it looks like the link for me is the middle one as I see that blue wire is connected to the BCM plug that is numbered C2280D which is what I have posted earlier in this thread. But I do have one more question and that is what is the clockspring which show connections 4/5 9/10 ?
Posted By: kreg357
Date Posted: January 28, 2019 at 7:35 PM
The clckspring is the steering wheel connector I was referring to as the wheel plug.
Please be cautious when probing wires and disconnecting plugs at the steering wheel, especially Yellow ones. The air bag circuits are there and you can deploy the airbag that way. Ford has a bad habit of including the Horn wire in the same connector as the air bag.
How are you checking "went to ground" with the DMM. Describe the setup.
------------- Soldering is fun!
Posted By: the vuking
Date Posted: January 28, 2019 at 11:56 PM
kreg357 wrote:
The clckspring is the steering wheel connector I was referring to as the wheel plug.
Please be cautious when probing wires and disconnecting plugs at the steering wheel, especially Yellow ones. The air bag circuits are there and you can deploy the airbag that way. Ford has a bad habit of including the Horn wire in the same connector as the air bag.
How are you checking "went to ground" with the DMM. Describe the setup.
I put one leg of the DMM to a 12v Posative then with the other lead I backprobe the yellow connector whilst pressing the horn looking for ground Kreg
Posted By: kreg357
Date Posted: January 29, 2019 at 2:55 AM
Sound right. The DMM will show 0 volts and then go to +12V when the horn button is depressed.
------------- Soldering is fun!
Posted By: mustyk@att.net
Date Posted: February 03, 2019 at 8:20 AM
Just a note: I have installed hundreds of these vehicles since 2015. The (-) horn wire color hasn't changed since then . It is and always has been blue/white. Note there is as many as 3 blue/white wires in that Blue 60 pin conn. Always use pin #17.
------------- thetopinstaller
Posted By: the vuking
Date Posted: February 06, 2019 at 4:41 PM
mustyk@att.net wrote:
Just a note: I have installed hundreds of these vehicles since 2015. The (-) horn wire color hasn't changed since then . It is and always has been blue/white. Note there is as many as 3 blue/white wires in that Blue 60 pin conn. Always use pin #17.
Thanks for your reply what you mention is the connection at the BCM which on my vehicle is quith hard to get to and thats with a good bit of the dash removed. would you happern to know the connection at the steering column ?
Posted By: mustyk@att.net
Date Posted: February 08, 2019 at 8:41 AM
Yes, it is true you have a little more work to access the BCM. But it CAN be done in about 3 minutes. Remove the panel under the steering column ( {9} 7mm screws to be exact) Unplug the power mirror switch, unplug the headlamp switch, and then you have full access to all the BCM connectors. Horn switch wire at the column is still blue/white wire coming from the "Clockspring". The clockspring is situated directly behind the steering wheel.
------------- thetopinstaller
Posted By: the vuking
Date Posted: February 10, 2019 at 5:38 PM
mustyk@att.net wrote:
Yes, it is true you have a little more work to access the BCM. But it CAN be done in about 3 minutes. Remove the panel under the steering column ( {9} 7mm screws to be exact) Unplug the power mirror switch, unplug the headlamp switch, and then you have full access to all the BCM connectors. Horn switch wire at the column is still blue/white wire coming from the "Clockspring". The clockspring is situated directly behind the steering wheel.
Thanks for the reply I got it figured out found the blue/white at the column. This is a Transit Custom which you guys in the US dont get and buy looking at the pictures Kreg has uploaded in his transit R/S istall it looks a lot less hassle to connect wire to the BCM than on my van. would love to see a detailed install gudie for a full alarm install by you mustyk as I'm sure a lot of the connection would relate to the uk transit custom and be a great help to transit ownwers as I see these transits are becomming very popular in the States.;
|
