class d amp wattage x2 subs

Home / the12volt's Install Bay / Car Audio / class d amp wattage x2 subs (

Topic Closed)

Welcome Guest :)

Members

< Prev Topic Next Topic >

awhit

Member - Posts: 10

Joined: May 26, 2008

Location: Pennsylvania, United States

Posted: May 26, 2008 at 7:52 PM / IP Logged

Iight well im looking at the Kole Audio KX1-4000D amp and im wondering how much watts it will put out hooked up to two dual 2 ohm subwoofers. The amp puts out 2200 RMS at 1 Ohm. So im not sure what it will put out. Does anybody have an educated guess at what it will put out. Thanks

i am an idiot

Platinum - Posts: 13,667

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: May 26, 2008 at 8:18 PM / IP Logged

Do you know how much power it puts out into a 2 Ohm load?

awhit

Member - Posts: 10

Joined: May 26, 2008

Location: Pennsylvania, United States

Posted: May 26, 2008 at 8:26 PM / IP Logged

Yea the amp puts out 1700 watts at a 2 ohm load.

i am an idiot

Platinum - Posts: 13,667

Joined: September 21, 2006

Location: Louisiana, United States

Posted: May 26, 2008 at 8:43 PM / IP Logged

That is what it is going to put out to those particular speakers.

wvsquirrel

Gold - Posts: 1,237

This member has made a donation to the12volt.com. Click here for more info.

Joined: July 27, 2002

Location: Florida, United States

Posted: May 26, 2008 at 8:43 PM / IP Logged

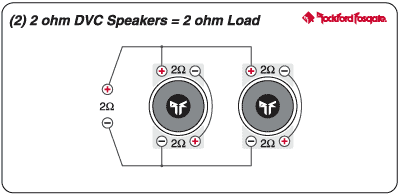

(2) 2ohm DVC's can be wired into either a 0.5ohm or 2ohm configuration. If you wired them into a 2ohm load then the amp would produce 850 watts per sub (1700 watts total).

class d amp wattage x2 subs - Last Post -- posted image.

Do you already have the (2) 2ohm DVC subs? If not then you could get (2) 4ohm DVC subs instead and wire them into a 1ohm load with that amp. That would get you apx. 1100 watts per sub.

Squirrel

"No more Cpt. Kirk chit chat"

If its too loud, then you're too old

Donate to the12volt.com

stevdart

Platinum - Posts: 5,816

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

Joined: January 24, 2004

Location: Pennsylvania, United States

Posted: May 26, 2008 at 9:11 PM / IP Logged

1700 is a lot of watts for $250. class d amp wattage x2 subs - Last Post -- posted image.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.

haemphyst

Platinum - Posts: 5,054

This member has been recognized as an authority in Electrical Theory. Click here for more info.

Joined: January 19, 2003

Location: Michigan, Bouvet Island

Posted: May 26, 2008 at 9:16 PM / IP Logged

stevdart wrote:

1700 is a lot of watts for $250. class d amp wattage x2 subs - Last Post -- posted image.

Which is a REALLY nice way of saying "it probably ain't"... No way is that amp 1700 watts, man.

It all reminds me of something that Molière once said to Guy de Maupassant at a café in Vienna: "That's nice. You should write it down."

awhit

Member - Posts: 10

Joined: May 26, 2008

Location: Pennsylvania, United States

Posted: May 27, 2008 at 10:04 AM / IP Logged

Yea i understand that the amp may not actually put out that many watts but i was just wondering how much it could put out for 2 subs if that wattage was true. I believe i am just going to stick with the Orion HCCA-D2400 amp and the Orion HCCA 15.2 .

boogeyman

Silver - Posts: 359

Joined: October 18, 2007

Location: Tennessee, United States

Posted: May 27, 2008 at 12:07 PM / IP Logged

Add up the fuses, multiply that total by the voltage at the amp terminals, and then multiply that total by .80 and that will be the MOST the amp can produce
