1993 Acura Vigor, Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
youwontlastlong
Member - Posts: 1
Member spacespace
Joined: March 26, 2021
Location: British Columbia, Canada
Posted: March 26, 2021 at 8:21 PM / IP Logged Link to Post Post Reply Quote youwontlastlong
Hi Admin,
I couldn't find a better place to write this so I will write here,
Over at: https://www.the12volt.com/installbay/stereodetail/203.html, it says the Constant 12V wiring is Blue/White but its actually White/Green.
Exerpts from Vigor Service Manual 1993:

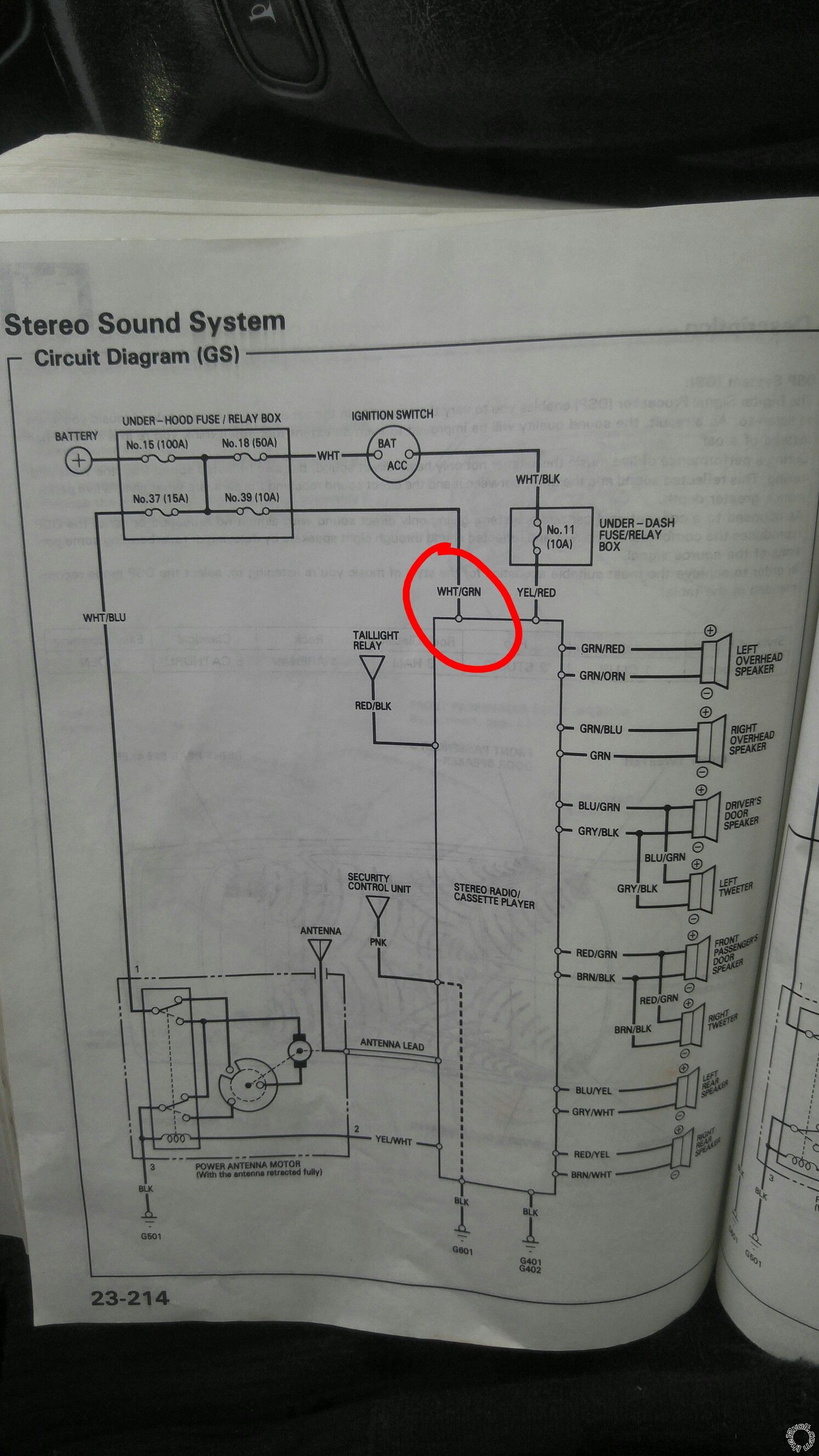

1993 Acura Vigor, Stereo Wiring -- posted image.

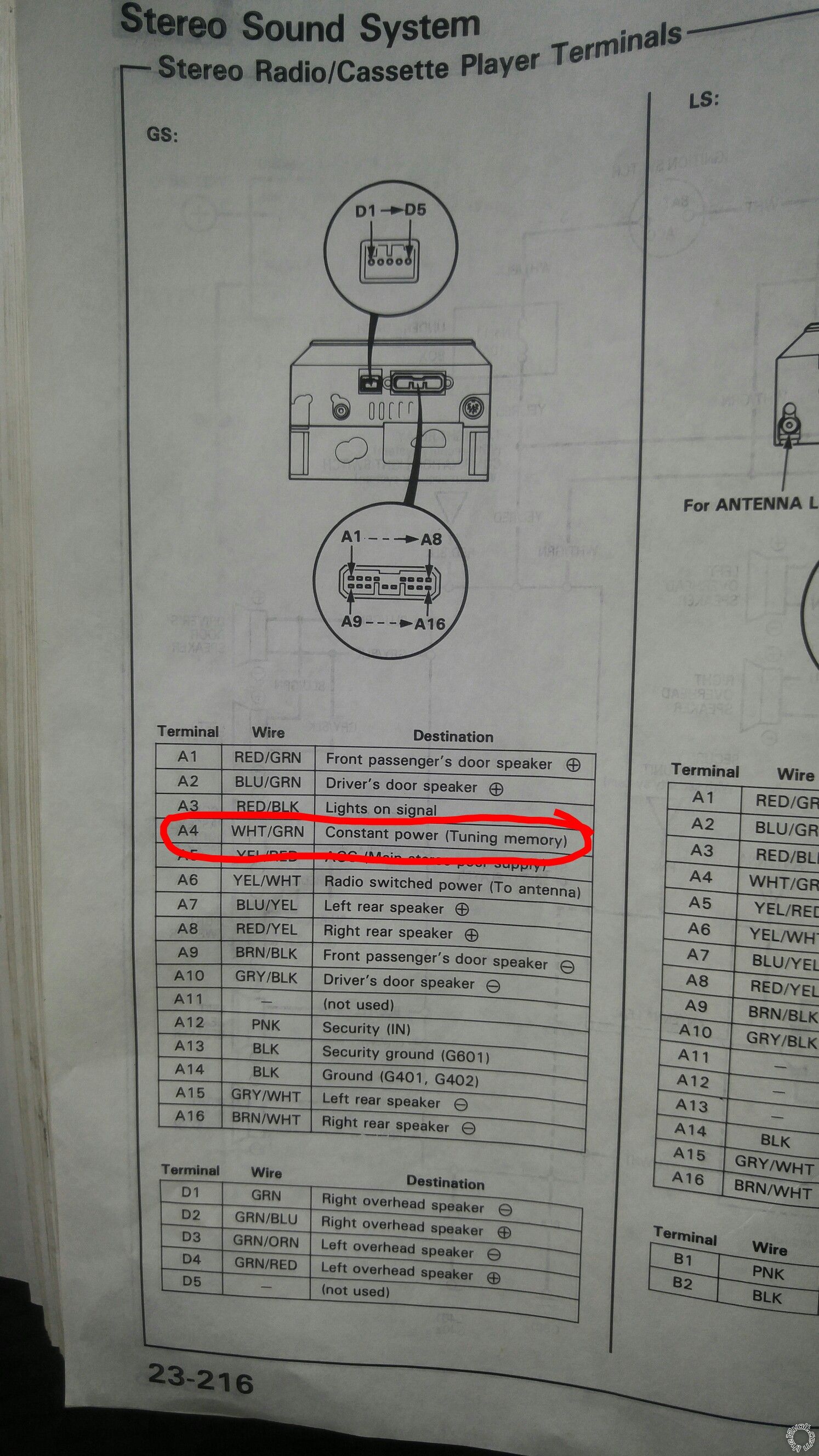

1993 Acura Vigor, Stereo Wiring -- posted image.
I hope this helps.
Best,
- Elijah
