Tame Iti
Member - Posts: 9
Member spacespace
Joined: May 06, 2002
Location: New Zealand
Posted: June 17, 2005 at 2:10 AM / IP Logged
Thanks for all the replies ,They have been more than helpfull ,However our supplier of DEI does not cary this module ,so it looks like I have to make my own ,like the one Hotwaterwizzard posted .Thanks again for all the help ,and if any one else has any other ways to do this ,please keep them comming .timed relay - Page 2 -- posted image.
crzyc68
Member - Posts: 9
Member spacespace
Joined: March 30, 2005
Location: United States
Posted: June 22, 2005 at 11:24 AM / IP Logged
Will either of these relays work for a horn in my car?  Right now I have a horn hooked up to a toggle switch.  It plays for about 6-7 seconds.  I would like to be able to push a button and the horn would play through its sequence and shut off.  With the toggle I have to turn it on, let the horn go through its sequence and then turn it off.  I have a General Lee with the Dixie Horn.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: June 22, 2005 at 10:43 PM / IP Logged

crzy68

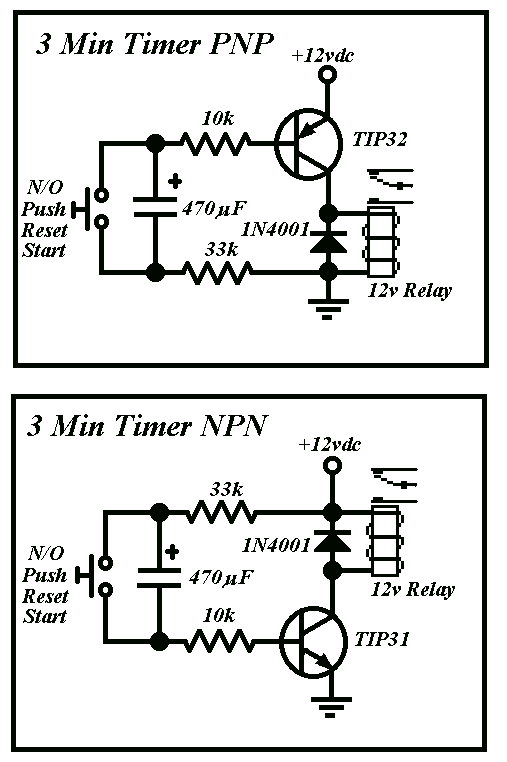

No you need delayed off like one of these,

Change the Capacitor to 100 uF

timed relay - Page 2 -- posted image..

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
crzyc68
Member - Posts: 9
Member spacespace
Joined: March 30, 2005
Location: United States
Posted: June 23, 2005 at 12:21 PM / IP Logged
Is there a part number for what you diagramed out or is it something that I would have to make?  I am not that familiar with the symbols on the diagram, but I do have a friend that is an electrician.  Would he be able to decipher it for me?  Sorry, I am still learning this stuff.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: June 23, 2005 at 10:09 PM / IP Logged
timed relay - Page 2 -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: June 25, 2005 at 7:49 PM / IP Logged

I just finnished making the circuit I discribed above.

Seams I made a mistake. The values as they are on 12v turn off the relay in about 30 seconds not 3 min as it states. here is a new Diagram with my test results Included.

timed relay - Page 2 -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
