Topic: angel eye wiring

Posted By: j68rh
Subject: angel eye wiring
Date Posted: September 28, 2005 at 9:07 PM

I am going to be purchasing a set of angel eye driving lights and I what to hook them up so when the parking lights are on the angel ring comes and also when the head lights are on the angel rings are one, But when I flip the switch in the car to turn on the driving light themselves i want the angel eyes to shut off.  I know relays are involved I just cant figure out how to wire them up for it to happen.  The car I am doing this on is a 2004 nissan xterra and a 2005 nissan altima.  any help would be great thanks



Replies:

Posted By: j68rh
Date Posted: September 30, 2005 at 10:08 AM
is there anyone out there have any idea how to wire these relays so i can get the result i am lookin for




Posted By: carguy411
Date Posted: September 30, 2005 at 12:01 PM
y u want them to shut off you relly cant tell that much they are on when the driving lights are actually on




Posted By: j68rh
Date Posted: October 01, 2005 at 7:25 AM
Because I want it like that thats all




Posted By: j68rh
Date Posted: October 01, 2005 at 8:45 AM
any one know how to wire the relays to do that??




Posted By: crzycreations
Date Posted: October 08, 2005 at 10:58 PM

https://www.the12volt.com/relays/relays.asp



-------------
-Don't buy it, Build it-




Posted By: crzycreations
Date Posted: October 08, 2005 at 11:02 PM
actually i don't think that'll show you how. I know there is a way you could do it using transistors.

-------------
-Don't buy it, Build it-




Posted By: mickey1031
Date Posted: October 18, 2005 at 3:23 PM

i have another question for you on this. I have a 2003 Monte Carlo SS .

I would liek to add Angel eyes on my car. Would like to se teh angel eyes to be the DLRs instead of my hig beams. Is this somethign that could be done? I hae no clue if it is a seperate circut or even if it is seperate wireing going to the high beams to run them at a lower watage.

I hate the DLR's living in Germany i get every one and thier brother flashing thier lights at me all the time.

If i could change them like i want to they would blend in some and also would be more pleaseing to myself.

Thanks for any help you can give to me on this.



-------------
just a man trying to make a nice toy car out of a monte carlo SS




Posted By: cowboy21
Date Posted: October 31, 2005 at 4:03 AM

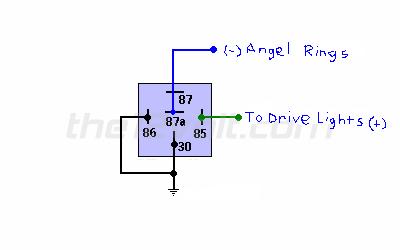

here is a ruff guess at how to wire it up

posted_image





Posted By: cowboy21
Date Posted: October 31, 2005 at 4:05 AM
that should turn them off




Posted By: mickey1031
Date Posted: October 31, 2005 at 5:07 AM

Cowboy21,

If your talking about shutting off the DLR's this will not work, you have to bypas that relay and then you also have to cut the wire in teh BCM under the dash to stop the signal . other wise year your correct it will shut the DLR circut off but will throw a code to the computer saying your high beam is out and then it will just turn on the regular head light circut to compinsaate for the loss.

I have poured over the diograms for hours to figure it out and to see if there was a easy fix to it. but they made this one something tuffer then just pulling the fuse i wish this was a option or soemthing that had a by pass like some of the trucks have.



-------------
just a man trying to make a nice toy car out of a monte carlo SS




Posted By: cowboy21
Date Posted: October 31, 2005 at 5:23 AM
by DLR's do u mean the driving lights or angel rings? because he stated when the driving lights were on he wanted the angel rings off, not the other way round, i don't see how this would cause a problem.




Posted By: cowboy21
Date Posted: October 31, 2005 at 5:44 AM

say the angel rings are turned on by a 12+ then have thier own ground connect the relay so the ground has to go through the relay so when there is no power going through the coil the ground is connected, and when there is power going through the coil the ground gets disconnected, and just use the power from the driving lights to pass through the coil and wahla no ground to the angel rings, therefore turning off when the driving lights are on.

posted_image





Posted By: mickey1031
Date Posted: October 31, 2005 at 5:52 AM

DLR's = Day Light Running Lights.

As far as doing it the way you sujested here im not sure on that i would have to look at it again to find out if it would work but sounds like it should .

My thing is i want to make the angel eyes replace the DLR function in my car. Then i would not care if they are on all the time as i would not have everyone flashing thier lights at me to turn mine off .



-------------
just a man trying to make a nice toy car out of a monte carlo SS




Posted By: cowboy21
Date Posted: October 31, 2005 at 2:23 PM
ahhhh u want it in reverse, well, ummmm u do have a point with the daytime lights, do the come on automaticly?




Posted By: mickey1031
Date Posted: November 01, 2005 at 1:21 AM

yeah they come on any time the car is turned on or in gear. Chevy really out did them selves on this one. they have it going threw the computer so it will know if the light is out or not, by doing this it makes it really hard  to shut them off with out destroying the circut or wires etc.. I am hoping that if i can figure it out i will make the angel eyes become the DLR.  then leave the other lights work like a normal system with the auto on.

at dusk they come on to low beam.

durring the day

they come on sense to much ambieant light and then shut off but turn on the DLR. (high beam at a lower watage)

So I would like to get it to turn on the angel eyes instead of the DLR's when it would normally turn on the DLR . and still beabel to have the high beams on the car when i need them at night. I am not real sure if i can do this with out having a issue of the eye's becomeing the high beam and canceling out the high beams all to geather. I know they have a seperate cicut for the DLR just not sure if there are seperate wires for them goign to the head lights them selves. Somethign that runs at a lower voltage. 0r if it is the computer regulating this.



-------------
just a man trying to make a nice toy car out of a monte carlo SS




Posted By: cowboy21
Date Posted: November 01, 2005 at 2:39 AM

ok it does sound a little tricky, but let me understand a few more things...

do u want the DLR to work at all anymore, or just completely replace them?

have you got or made the angel rings yet?

i have heard of a componsater the bassicly draws a specified amount ot watts to run lower wattage lights, mainly used on motorbikes to replace indicators, look into them maybe and just wire the rings into the DLR circut





Posted By: KarTuneMan
Date Posted: November 01, 2005 at 3:21 AM
One thing.....does anyone but you 2 guys care...sorry!

-------------




Posted By: cowboy21
Date Posted: November 01, 2005 at 4:42 AM

of course they do or there wouldn't be so many visits :)





Posted By: mickey1031
Date Posted: November 01, 2005 at 5:26 AM

do you have anythign else to do but post somthing like that on a fourm?

even if it were just two folks that wanted to know this  this would be the place to ask the questions about it if im not correct. So if your not wanting to know then dont read it.

I will check in to that cowboy i havent atcually seen that type of thing but i will see what i can find.. It dose make sens.

As far as the DLR. I want to replace them completly  with the angel eyes. No i havent made the rings yet i wanted to make sure i could do it. But i can also buy just the rings for like 30.00 euro. so i could get them with in 7 days etheir way/



-------------
just a man trying to make a nice toy car out of a monte carlo SS




Posted By: cowboy21
Date Posted: November 01, 2005 at 2:30 PM
alright, good luck with it, if i speak to my mate soon i'll ask him about them and let ya know posted_image

-------------
modest yet effective... ECLIPSE 12", Venom 8"x2, Focal 5 1/2" comp.,Response amps x2 (580WRMS total @ 4Ohms), Pioneer TFT + DVD, good for 148.7dB




Posted By: blazoner
Date Posted: November 22, 2005 at 11:31 PM

to keep the DRL circuit from bypassing that whole circuit, you'll have to wire in a resistor.  (much like you do when you replace your turn-signal lights with LED's)

personally, i think it'd just be too much trouble for me to figure out the whole thing, but good luck!

(it'd be a different story if i had fixed headlights myself... )

:)



-------------
