Topic: specsheet for a simple ported 15 box
Posted By: -94-accordh22
Subject: specsheet for a simple ported 15 box
Date Posted: September 28, 2005 at 9:38 PM
hi guys. could i possibly have the dimension or blueprint for just a standard ported dual 15 box?
thank you
Replies:
Posted By: dwarren
Date Posted: September 28, 2005 at 9:45 PM
What's the internal volume and port size need to be??? This is the only way to build a proper box. I would highly advise against just putting a sub in a box without knowing what the sub's requirements are. This info needs to be retrieved from the sub mfr. then given your space constrictions, you may build a proper box around that. -------------
Posted By: -94-accordh22
Date Posted: September 28, 2005 at 10:26 PM

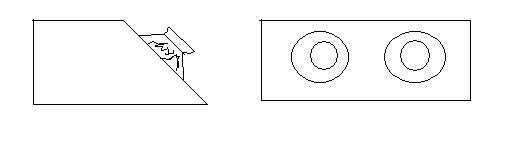

i will get those spex in a sec but this is kinda the box i want to try out so that i will be able to show off the back of the subs when the trunk is open
Posted By: -94-accordh22
Date Posted: September 28, 2005 at 10:39 PM
im not sure which one to look at. the book that came with subs has the following:
PORTED
air space cu. ft. 1.7
port size (inches) 3x7
total Vol. cu.ft 2
every bass performer ported
air space cu.ft. 2.65
Port Size 4x7.5
total Vol cu.ft. 3
Ultimate SPL bass box ported
air space cu. ft. 3.55
port size (2)4x11.25
total Vol 4
Posted By: dwarren
Date Posted: September 28, 2005 at 11:08 PM
Well which one of those boxes do you want to use? I would go with the every bass performer. I can't recall how well an inverted setup works with a ported box but if does work, you must consider two things, one you no longer have to compensate for the displacement of the driver, and you must wire the subs out of phase. -------------
Posted By: -94-accordh22
Date Posted: September 28, 2005 at 11:20 PM
ok but what does the last to things you said mean.
compensate for displacement of driver and wire out of phase.
i dont need to worry about how big box is inside???
Posted By: dwarren
Date Posted: September 28, 2005 at 11:26 PM
When a box is built to specifications, usually the displacement or the volume that the woofer (basket and magnet assembly) is accounted for, so for your sitaution you don't need to compensate for it. i don't know whether or not the specs listed include the displacement but I doubt it, so build it to those exact numbers. Since the woofers are facing the opposite direction in the box you must wire them so that they "push" the right way, which will be opposite the normal way when inverting speakers. You may learn more about inverting subs her on this forum by doing a search, there are many topics on this subject. "inverting subs" -------------
Posted By: -94-accordh22
Date Posted: September 28, 2005 at 11:28 PM
thanks alot man
so i should still build the everyday bass box (wedge style)
to those exact specs and just wire them to push or w.e the forums i will read say?
Posted By: stevdart
Date Posted: September 29, 2005 at 7:41 AM
When all subs are inverted, the polarity is reversed by switching the leads at the amplifier...or use the 180 switch on the amp. Wire the sub coils themselves normally as shown in your wiring diagram. Much less chance of confusion and mistakes. Only when you have a combination of normal mount and inverted would you need to reverse wiring on the inverted subs. ------------- Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
Posted By: oxygen65
Date Posted: September 29, 2005 at 2:56 PM
so were do you intend on the ports being on this box? and what are the port lengths and stuff like that
Posted By: -94-accordh22
Date Posted: September 29, 2005 at 10:04 PM
well thats what im trying to figure out so that i can get the dimensions to my woodshop teacher.
so pretty much wire the 2 sub up normal (1 ohm) and just switch the neg and pos AT the amp???
Posted By: -94-accordh22
Date Posted: September 29, 2005 at 10:17 PM
nobody would just be able to give me a blueprint for a ported dual 15inch sub box with the front at an angle
no bigger than
35" W X 16 1/2" H X 18" D
the subs are audiobahn aw1571se
|
