Topic: Does Illuminate wire exist? 04 Silverado
Posted By: decipha11
Subject: Does Illuminate wire exist? 04 Silverado
Date Posted: November 14, 2006 at 6:48 PM
I recently installed a pioneer deck that is equipped with a ORANGE / White ILLUM wire. Does this wire exist on my factory harness or is there a relay somewhere i can connect to interact with my dimmer switch?
Replies:
Posted By: NowYaKnow
Date Posted: November 14, 2006 at 9:45 PM
Not required, but if you want to connect that to the brown positive park light wire in the vehicle. Should be in the drivers kick panel.
Mike
Posted By: decipha11
Date Posted: November 14, 2006 at 11:30 PM
Will wiring it to this wire allow me to control the brightness using the dimmer?
Posted By: geepherder
Date Posted: November 15, 2006 at 5:14 AM
No, the illumination wire will cause the deck's display to dim a predetermined amount when the parking lights are lit. If your deck does not have a dimmer wire, this is the best you can do short of dissassembling the unit and voiding the warranty, etc.
-------------
My ex once told me I have a perfect face for radio.
Posted By: decipha11
Date Posted: November 15, 2006 at 12:57 PM
Does anyone have a diagram of where the brown parking wire exists?
Posted By: KarTuneMan
Date Posted: November 15, 2006 at 4:46 PM
Parking Lights+ brown + driver kick panel
-------------
Posted By: decipha11
Date Posted: November 15, 2006 at 5:59 PM
Would that be Instrument Panel, Center Panel, or Underhood?
Posted By: KarTuneMan
Date Posted: November 15, 2006 at 6:14 PM
down next to your left ankle.
-------------
Posted By: cntrylvr79
Date Posted: November 15, 2006 at 7:49 PM
Behind that plastic piece by the hood release.
-------------
Cause I'm So white and nerdy...
First Class Certi-fried installer
Posted By: decipha11
Date Posted: November 27, 2006 at 5:53 PM
I removed the plastic cover and found the panel but which wire am i looking for? Does anyone have a diagram?
Posted By: decipha11
Date Posted: November 27, 2006 at 6:16 PM

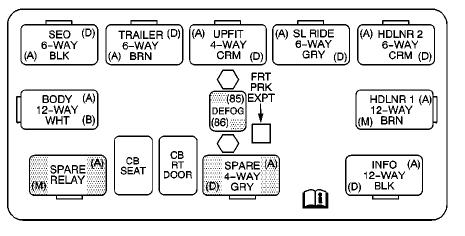

ok, this is what i found..... where is the brown wire i need located?
Posted By: cntrylvr79
Date Posted: November 27, 2006 at 7:07 PM
diagram is useless. The brown wire is in the driver's kickpanel as was stated previously.
-------------
Cause I'm So white and nerdy...
First Class Certi-fried installer
|
