Topic: need 2010 ford focus remote start wiring
Posted By: turbobuick1
Subject: need 2010 ford focus remote start wiring
Date Posted: January 16, 2010 at 12:47 PM
Hi guys, I have a 2010 Ford Focus SE and I need a wiring diagram in order to install a remote start. Appreciate any help I can get, thanks a lot!
Replies:
Posted By: chev104275
Date Posted: January 16, 2010 at 3:31 PM
2010 FORD FOCUS 4DR SEDAN
Security
WIRE COLOR POLARITY LOCATION
Battery BLUE/RED (20 AMP) (+) IGNITION SWITCH
CAN ALSO GRAB POWER AT LARGE GAUGE WHITE/ RED WIRE AT THE SJB
Ignition 1 BROWN / YELLOW (+) IGNITION SWITCH
Starter 1 BLUE/WHITE (+) IGNITION SWITCH
All Door Trigger GRAY/VIOLET (+) DRIVERS KICK PANEL
ALSO FOUND AT SJB, PIN 9 OF 14-PIN GRAY PLUG
Domelight Super USE ALL DOOR TRIGGER
LF Latch GREEN/ VIOLET *SEE NOTES
THIS WIRE WILL REST AT GROUND, THEN GOES TO AN OPEN CIRCUIT UPON ENTRY
RF Latch WHITE *SEE NOTES
THIS WIRE WILL REST AT GROUND, THEN GOES TO AN OPEN CIRCUIT UPON ENTRY
LR Latch GREEN *SEE NOTES
THIS WIRE WILL REST AT GROUND, THEN GOES TO AN OPEN CIRCUIT UPON ENTRY
RR Latch YELLOW *SEE NOTES
THIS WIRE WILL REST AT GROUND, THEN GOES TO AN OPEN CIRCUIT UPON ENTRY
Trunk Trigger GRAY/ORANGE *SEE NOTES
THIS WIRE WILL REST AT GROUND, THEN GOES TO AN OPEN CIRCUIT UPON ENTRY
Hood Trigger BLUE/ORANGE *SEE NOTES
THIS WIRE WILL REST AT GROUND, THEN GOES TO AN OPEN CIRCUIT UPON ENTRY
Alarm Disarm OEM REMOTE ONLY, SEE TECH TIP
Parking Lights VIOLET/WHITE (+) DRIVERS KICK PANEL
Remote Start
WIRE COLOR POLARITY LOCATION
Battery BLUE/RED (20 AMP) (+) IGNITION SWITCH
CAN ALSO GRAB POWER AT LARGE GAUGE WHITE/ RED WIRE AT THE SJB
Ignition 1 BROWN / YELLOW (+) IGNITION SWITCH
Accessory 1 VIOLET/GREEN (+) IGNITION SWITCH
Starter 1 BLUE/WHITE (+) IGNITION SWITCH
Anti-Theft Type PATS IMMOBILIZER SYSTEM
Key Sense BLUE/GRAY (+) IGNITION SWITCH
Tachometer UNCOMMON COLOR AT FUEL INJECTORS
Speed Sense BROWN / GREEN (AC) AT PCM, PIN 4 OF BOTTOM PLUG
MAY ALSO BE PIN 2
Parking Lights VIOLET/WHITE (+) DRIVERS KICK PANEL
Reverse Lights GREEN/ BROWN (+) DRIVERS SILL PLATE HARNESS
Rear Defrost WHITE/ ORANGE
THIS IS A LATCHING CIRCUIT
Heated Driver Seat YELLOW/BLUE (-) AT HEATER CONTROL MODULE IN DASH, PIN 1 OF BLACK 26-PIN PLUG
THIS IS A LATCHING CIRCUIT
Heated Passngr Seat GRAY/BLUE (-) AT HEATER CONTROL MODULE IN DASH, PIN 5 OF BLACK 26-PIN PLUG
THIS IS A LATCHING CIRCUIT
Modules
WIRE LOCATION
Module 1 SJB (SMART JUNCTION BLOCK) - MOUNTED UNDER DASHBOARD ON DRIVERS SIDE
Doorlocks/Windows
WIRE COLOR POLARITY LOCATION
Power Unlock YELLOW/VIOLET (-) DRIVERS KICK PANEL
ALSO FOUND AT SJB, PIN 4 OF 26-PIN GRAY PLUG
PowerLock BLUE/GREEN (-) DRIVERS KICK PANEL
ALSO FOUND AT SJB, PIN 17 OF 26-PIN GRAY PLUG
Driver Mtr Unlock BLUE/GREEN (REV) DRIVERS KICK PANEL
ALSO FOUND AT SJB, PIN 28 OF 32-PIN BLACK PLUG
Driver Mtr Lock GRAY/BROWN (REV) DRIVERS KICK PANEL
ALSO FOUND AT SJB, PIN 6 OF 32-PIN BLACK PLUG
Pas Mtr Unlock VIOLET/GRAY (REV) PASSENGERS KICK PANEL
ALSO FOUND AT SJB, PIN 27 OF 32-PIN BLACK PLUG
Convenience
WIRE COLOR POLARITY LOCATION
Headlights-Lo YELLOW/BLUE (-) HEADLIGHT SWITCH
ALSO FOUND AT SJB, PIN 30 OF 52-PIN BLACK PLUG
All Hazrd Lights BROWN / YELLOW (-) AT SWITCH
ALSO FOUND AT SJB, PIN 48 OF 52-PIN BLACK PLUG
LF Hazrd Bulb BLUE/GREEN (+) SJB, PIN 21 OF 26-PIN BLACK PLUG
RF Hazrd Bulb YELLOW/VIOLET (+) SJB, PIN 23 OF 26-PIN BLACK PLUG
LR Hazrd Bulb GRAY/BROWN (+) SJB, PIN 25 OF 32-PIN BLACK PLUG
RR Hazrd Bulb VIOLET/ORANGE (+) SJB, PIN 26 OF 32-PIN BLACK PLUG
Trnk Release BROWN (-) AT SWITCH
ALSO FOUND AT SJB, PIN 28 OF 26-PIN GRAY PLUG
-------------
If i Can't Install it I Don't need it Joe
Posted By: turbobuick1
Date Posted: January 17, 2010 at 10:17 AM
Thanks for the help, but for the tachometer wire under the remote start section above, what does "uncommon wire" at fuel injectors mean? Is this a typo? Does it mean the common positive wire for the fuel injectors? Or is there a better place to source the needed tachometer feed for the remote start? On the wiring diagram that came with my Compustar system, it says for that lead "Engine Sensing Input (Alt./Tach/Battery)" I'm installing a Compustar FT-6200S Controller or "Brain".
Posted By: tedmond
Date Posted: January 17, 2010 at 10:25 AM
uncommon wire means at each injector, there will be similar colours for all of them. using the uncommon one or "differant" will work.
-------------
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
Posted By: turbobuick1
Date Posted: January 17, 2010 at 12:23 PM
On this 2.0L engine, all four injectors have two wires each. They all share a common BLUE power wire, and what you are saying is that I need to tap into one of the other wires (injector 1 has a GRN/BLU, injector 2 has a GRN/YEL, injector 3 has a VIO/GRY, injector 4 has a YEL/ORG). So I tap into one of these 4 wires correct? Thanks for your help, I really appreciate it guys! This is only my second remote starter install and I just want to make sure I do it right the first time around. I wouldn't be surprised if I have a few more questions for you guys this afternoon.
Posted By: chev104275
Date Posted: January 17, 2010 at 2:57 PM
yes you can use any of the wires that are not blue that you listed
-------------
If i Can't Install it I Don't need it Joe
Posted By: turbobuick1
Date Posted: January 17, 2010 at 4:57 PM
Thanks for the verification. One last wire to hookup and then I can start testing the remote starter out. My last wire is on the Bypass Module (in this case a Fortin Key-Override-SL2.) It's a BLUE wire that is supposed to be connected to a wire on the remote starter; and I don't know which one. The label for this wire is "(-) While Running" and it is a input to the bypass module. Here are my choices on the remote starter: 1) (-) 250mA 2nd starter output 2) (-) 250mA 2nd ignition output 3) (-) 250mA 2nd accessory output 4) (-) 250mA Status Out(GWR) 5) (-) 250mA Rearm output 6) (-) 250mA Disarm output 7) (-) 250mA Horn Output 8) (-) 250mA Aux1 Output By the way, I left a few out that in my mind there was no way it could be them. So the big question is, which one is it??
Posted By: mikvot
Date Posted: January 17, 2010 at 5:05 PM
Posted By: chev104275
Date Posted: January 17, 2010 at 5:07 PM
number 4
-------------
If i Can't Install it I Don't need it Joe
Posted By: turbobuick1
Date Posted: January 17, 2010 at 5:11 PM
Sweet, I'm running out to the garage to hook it up!
Posted By: turbobuick1
Date Posted: January 17, 2010 at 6:48 PM
Wow, alright, one more thing to deal with. I believe I'm having a security system related issue, and I have an idea what it is. You should know I have the Compustar RF-1BAM-900SH remote fobs, which are just single button fobs. Anyway, I see on one of the option tables (Group 4), The 11th Feature is "Bypass through RS232 Port". The default setting is "ADS", and an optional setting is "Fortin". I want to set it to Fortin because that is the bypass module I have. And I believe this is why the factory security light is flashing when the remote starter attempts to start the car. My question is: How do I program options using a one-button fob? The manual that came with the Compustar 6200S Remote Start Controller gives you directions for fobs with multiple buttons but none for my fob. And the manual that came with the remote fobs makes no mention of how to program options. Does anybody have any idea of how to do this? Thanks guys!
Posted By: tedmond
Date Posted: January 17, 2010 at 7:00 PM
you will only have to set it to fortin if you use the 4pin D2D connection. If you have everything else wired as wire to wire w2w, no need to go into programming to change the setting. if you really want to run d2d, which i wouldnt On the unit, if it says RS232 unlocked, then you can change it to fortin in the programming. if not, you need a compustar op500 programmer. ------------- Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
Posted By: turbobuick1
Date Posted: January 17, 2010 at 7:12 PM
Ah, so I don't need to install the 4pin wiring harness between the bypass module and remote start? Well, I will uninstall that small harness and if that isn't the reason for the factory security light flashing, I will try to reprogram the Key-Override-SL2... I'll post what I find out in a bit...
Posted By: turbobuick1
Date Posted: January 18, 2010 at 11:15 AM
Okay well I beat the security light issue by running through the Fortin Key-Override-SL2 programming procedure. I did not bother to remove the 4 pin data link harness between the fortin bypass module and the Compustar remote starter, because it didn't seem to be hurting anything. And now the remote start works great! Except now, both of the car keys do not work! The vehicle can only be started with the remote starter fob. The security doesn't flash at all, in fact, when you turn the key in the ignition to crank the starter, nothing happens at all! What gives? And the funny thing is, the keys and the fobs worked earlier today! Any advice would be greatly appreciated!
Posted By: turbobuick1
Date Posted: January 18, 2010 at 12:43 PM
Anybody have any thoughts?
Posted By: kreg357
Date Posted: January 18, 2010 at 4:08 PM
It is possible that your car won't start with a key because the Fortin bypass is on and the car is seeing two keys at the same time. I would go completely to W2W mode. Remove the 4 pin datalink harness and just run +12volts and ground to the harness as per the instructions. Compustars come factory defaulted for IDatalink module communication and you have to program them over to Fortin mode. If you have an extra 4 button remote you could program it to your CM5000 temporalily and use it to change options... ------------- Soldering is fun!
Posted By: turbobuick1
Date Posted: January 19, 2010 at 8:55 AM
This makes sense, thanks for the tip! I will try removing the 4 pin data harness and routing it to power and ground...
Posted By: cmjdjm1
Date Posted: April 28, 2010 at 9:20 PM
I have a quick question about this....it says the Alarm Disarm - OEM REMOTE ONLY, SEE TECH TIP......what exactly is the Tech Tip?
Posted By: tedmond
Date Posted: April 29, 2010 at 6:35 AM
on the newer subarus and evos, there is no way to disarm the alarm by sending a pulse to a specific wire on the car. This is probably similar to those 2 vehicles where the only ways to disarm the oem alarm is 1) buy a data module
2) transponder + ignition + keysense powered on at the same time will disarm the system. - this would prob be your tech tip ------------- Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
Posted By: cmjdjm1
Date Posted: April 29, 2010 at 6:17 PM
Awesome. Thanks for the info. I didnt want to tear into the car and find out I needed something else. Always good to know beforehand. Thanks again!
Posted By: monty862
Date Posted: April 29, 2010 at 10:25 PM
Are you using the domelight wire for your door triggers? If so, read no further. But if your going to use all four door trigger wires, then your going to need a DTIMAZDA module. I had to get one for my 2010 Fusion with the same Normally closed circuit. Just a heads up so you'll be ready.
-------------
Posted By: cmjdjm1
Date Posted: September 08, 2010 at 2:25 PM
Ive got a quick question. I need to hook up the heater so that it comes on with the remote start. Which wire am I hooking up the one from the remote start to? The VIOLET/GREEN at the ignition switch? I was poking around behind the controls for the correct wire, but Im coming up blank. This is probably a really simple answer and Im hoping someone can give me a hand so Im not blowing fuses trying to find this. Thanks in advance!!
Posted By: monty862
Date Posted: September 08, 2010 at 2:44 PM
You need to have the heat or air conditioning set to the desired setting when you park it. That way, when it remote starts it will be where you last set it. IF, you have electronic controls for the climate, it is possible to wire them up to the defroster wire to automatically turn on the heat if the temp is below 50 degrees. Or you could wire to an auxillary channel for independent operation. Most people just preset before they leave the vehicle though.
-------------
Posted By: cmjdjm1
Date Posted: September 08, 2010 at 3:48 PM
Ya, Im going to just preset it before I leave the car. I just needed to know if i hook up the heater wire from the remote start to the purple-green wire at the ignition if this would accomplish that, or if i needed to search the correct wire behind the controls
Posted By: monty862
Date Posted: September 09, 2010 at 9:33 AM
Looks like it is Violet/Green wire ; according to the wiring diagram on page one of this post.
-------------
Posted By: cmjdjm1
Date Posted: September 21, 2010 at 6:09 PM
Anyone happen to know the horn wire and best location to tap into it? With the airbags now Im leary about poking into wires coming off the steering column if I can help it.
Posted By: monty862
Date Posted: September 22, 2010 at 2:01 AM

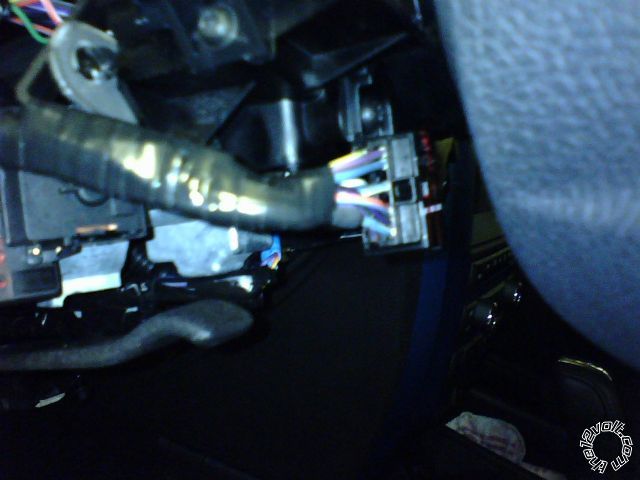

Depends on where you mounted the brain as to the best location to tap in. If you are near the steering column then I'd tap in there. I don't see it listed in the wiring diagram. I think it is blue/white. Take the cover off the steering column and look for a connector that looks like this;  This is a Fusion connector. Focus should be similar. The horn wire on the Fusion is the bottom right blue/white. 2008 Focus is also this color. I'm not saying that it's definately what your looking for, but probable and a good place to test first. -------------
Posted By: cmjdjm1
Date Posted: October 03, 2010 at 2:54 PM
monty862 - Thanks for the picture. Its definitely where Im going to start my search. Sorry I didn't thank you earlier. I didnt get a topic reply notification, or I deleted it by accident somehow. Anyways, Thanks again! Im going to check it out either this week or weekend and I'll post back here. Maybe it can be added to the original wiring list.
|
