Topic: prestige aps 787c, 2011 mazda 3

Posted By: Raymond4646
Subject: prestige aps 787c, 2011 mazda 3
Date Posted: December 30, 2010 at 10:34 AM

Does anyone have a tech sheet for a 2011 Mazda 3. Installing a Prestige Aps787c Any know issues with this vehicle? Thanks for any assistance.

Replies:

Posted By: Raymond4646
Date Posted: December 30, 2010 at 1:59 PM

Need a wiring diagram for a 2011 Mazda 3 remote start install. Also what bypass works best? Thanks.

Posted By: t&t tech
Date Posted: December 30, 2010 at 4:44 PM

Battery	YELLOW & ORANGE	(+)	IGNITION SWITCH HARNESS...EACH OF THESE WIRES IS FUSED AT 40 AMPS
Ignition 1	BLUE	(+)	IGNITION SWITCH HARNESS
Accessory 1	PINK	(+)	IGNITION SWITCH HARNESS
Accessory 2	WHITE	(+)	IGNITION SWITCH HARNESS
Starter 1	LIGHT GREEN	(+)	IGNITION SWITCH HARNESS
Anti-Theft Type	UNIVERSAL IMMOBILIZER
Anti-Theft Descript	THE KEY SENDS AN RF SIGNAL TO THE BCM MODULE THROUGH AN ANTENNA LOCATED AROUND THE IGNITION CYLINDER
Key Sense	LIGHT BLUE	(+)	IGNITION SWITCH HARNESS
Tachometer	...USE INJECTOR WIRE
Speed Sense	ORANGE	(AC)	RADIO HARNESS
Parking Lights	ORANGE	(+)	IN HARNESS IN DRIVER KICKPANEL TO REAR
Low Crr. Pk Lights	GRAY	(-)	BCM MODULE...ALSO AT LIGHT SWITCH HARNESS
Brake Lights	GREEN	(+)	SWITCH ABOVE BRAKE PEDAL
Reverse Lights	WHITE	(+)	IN HARNESS IN DRIVER KICK PANEL
Horn	BLUE	(-)	HARNESS AT STEERING COLUMN
CANbus	GREEN & GRAY	(DATA)	OBD II CONNECTOR...THESE ARE CAN MEDIUM SPEED CAN HIGH AND LOW RESPECTIVLY

Posted By: t&t tech
Date Posted: December 30, 2010 at 4:46 PM

Headlights-Lo	BROWN	(-)	BCM MODULE...ALSO AT LIGHT SWITCH HARNESS
All Hazrd Lights	WHITE	(-)	BCM MODULE
Parking Brake	VIOLET	(-)	BCM MODULE
Trnk Release	BROWN	(-)	BCM MODULE

Posted By: t&t tech
Date Posted: December 30, 2010 at 4:47 PM

The above is 2010. Here is a link to the entire thread if you wanna browse.

Posted By: Raymond4646
Date Posted: January 05, 2011 at 12:12 AM

Installing a Prestige APS787C into an 2011 Mazda 3. Using the (-) Light Blue 300ma ground out while running to give a (-) GWR Status input to the Dball.. Does this need a relay to protect the low 300ma output of the Remote Start? Im assuming it doesn't, just being precautious.

Posted By: kreg357
Date Posted: January 05, 2011 at 5:39 AM

No relay required, connect directly between the R/S and bypass. If you are using the R/S GWR output for other things besides the bypass, then diode isolation is required.

-------------
Soldering is fun!

Posted By: Raymond4646
Date Posted: January 05, 2011 at 11:55 AM

Thank you Kreg

Posted By: Raymond4646
Date Posted: January 05, 2011 at 11:15 PM

Can anyone point me in the right direction as to where the door trigger and dome light wires are? I've been testing the 2 blue bcm plugs and only found the key light..this car is kicking my ass..thanks for any assistance..

Posted By: scam404
Date Posted: January 05, 2011 at 11:31 PM

they have the wires you need here:

https://www.bulldogsecurity.com/bdnew/vehiclewiringdiagrams.asp

go to mazda -> mazda 3, 2009-2010, i know they have the years wrong... but thats the one you need.

Posted By: Raymond4646
Date Posted: January 05, 2011 at 11:37 PM

That's what I'm actually going by..it's not correct..for instance the powerdoor lock wire is not lt green..it's white and not in the location listed..this is crazy..

Posted By: scam404
Date Posted: January 05, 2011 at 11:52 PM

well then... you have a hard battle ahead then it seems.

Posted By: Raymond4646
Date Posted: January 05, 2011 at 11:54 PM

Yeah man ur telling me..

Posted By: scam404
Date Posted: January 06, 2011 at 12:02 AM

did you try these?

https://www.the12volt.com/installbay/forum_posts.asp?tid=116276&KW=2010+mazda+3

Posted By: Raymond4646
Date Posted: January 06, 2011 at 12:08 AM

Yes..pretty much the same thing but less descriptive..this vehicle is def different than the 10..

Posted By: tonanzith
Date Posted: January 06, 2011 at 2:28 AM

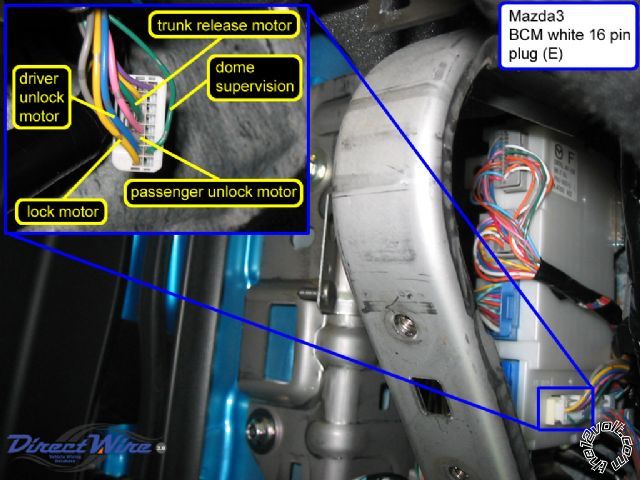

Use the dome supervision wire. It is in the driver kick panel and can also be found at the BCM in a 16 pin plug pin n. The wire color is green and is -. posted_image

-------------
Gary Sather

Posted By: Raymond4646
Date Posted: January 06, 2011 at 4:22 AM

Gary your awesome man..thanks for the info..I ended up working my way back there and tested those wires finding them a little before you posted..wish I woulda saw your post sooner..appreciate the help!!

Posted By: scam404
Date Posted: January 06, 2011 at 9:05 AM

so does that mean that bully dog's diagram is correct? Are you using a pinout diagram of the BCM connectors from the service manual? If not i would recommend downloading it.

Posted By: Raymond4646
Date Posted: January 06, 2011 at 11:42 AM

Bulldogs website is correct in the color an location for some..

Posted By: Raymond4646
Date Posted: January 06, 2011 at 11:46 AM

Having an issue with this one wire door lock system. Lock is working thru the 1k resistor I'm using via the neg lock positive unlock wire..but I'm not getting unlock ??

Posted By: Raymond4646
Date Posted: January 06, 2011 at 11:50 AM

2011 Mazda 3 found the -lock wire per the tech sheet and used a 1k ohm resisitor via the rs -lock positive unlock and the vehicle won't unlock just lock..thanks for any help

Posted By: scam404
Date Posted: January 06, 2011 at 11:58 AM

if you can locate them, i would use the factory arm and disarm wires and hook up your lock and unlock wires from the brain to those. That way they will control the domelight at the same time.

Posted By: monty_77
Date Posted: January 06, 2011 at 12:00 PM

the unlock is a straight negative ground on that one no resistor.

the unlock is not positive

-------------

Posted By: Raymond4646
Date Posted: January 06, 2011 at 12:02 PM

Thanks ill look for this now..

Posted By: Raymond4646
Date Posted: January 06, 2011 at 12:11 PM

Thers is only one wire and thats the alarm arm disarm wire thru a - signal and a 1k OHM resisitor. Its doing the same as the other wire only locking the vehicle upon arm.

Posted By: Raymond4646
Date Posted: January 06, 2011 at 12:17 PM

im confused, bulldog says to;

POWER LOCK	LT. GREEN (-) thru a 1000 Ohm Resistor, NOTE #3	in DRIVERS KICK PANEL or BCM, (BLUE, 24-PIN PLUG(F), PIN D, NOTE #2
POWER UNLOCK	Use LOCK wire

from the remote start unit I have 3 wire, ( RED / black Neg. 2nd unlock) (green Positive lock. Neg. Unlock) and Red Neg. Lock, Positive unlock

What should I do here? thanks

Posted By: Raymond4646
Date Posted: January 06, 2011 at 2:45 PM

Ok figured it out..thanks to my buddy Dan..ground signal wasn't strong enough..used a dei door lock relay kit..all good now..

Posted By: monty_77
Date Posted: January 06, 2011 at 2:51 PM

what brand and model remote start

most just have negative outputs for lock and unlock

most will have a lock output(-)
Unlock output(-)
positive for powering Relays
some will have a second Unlock output(-) for people that want driver door priority.

there is one wire for the lock and unlock of the mazda 3

to lock you have to ground that wire with a 1000 ohm resistor in line and to unlock you just have to ground that wire with no resistor

if you need to switch polarity then you will have to use a relay

-------------

Posted By: Raymond4646
Date Posted: January 06, 2011 at 4:28 PM

Prestige Aps787c I dont believe the ground signal was strong enough. So what i did was use a dei door lock relay kit and it now works great. Thanks Monty.

Posted By: zerepdivad
Date Posted: January 06, 2011 at 9:14 PM

yeah you're supposed to use relays to do locks like that except for on some newer dei units.

-------------
A DMM is a beautiful thing.

MECP Advanced Installer Certified.

Posted By: Raymond4646
Date Posted: January 06, 2011 at 9:29 PM

Yeah usually the tech sheet or rs install guide gives you a heads up..per the tech sheet it stated use a 1k ohm and that's it..oh well now I know..

Posted By: Raymond4646
Date Posted: January 06, 2011 at 9:30 PM

And it doesn't help that I can no longer get wiring info from direct techs..sucks..
