Topic: vw polo door lock/unlock

Posted By: bluexe
Subject: vw polo door lock/unlock
Date Posted: October 08, 2011 at 8:01 AM

Hi,
At first I would like to say, I'm a newbie in all these var security systems but I promised to my self I will instal the *uking car alarm system.

So, I uploaded my car alarm system - which I need only for door lock and unlock - that's all, because for my VW polo is only key.

I deeply hope that someone will help to install these alaram, so basic info about car :
* VW polo - 2002 - 1.4 TDI
And yeah, I searched in this forum for Polo 2002 wiring diagram but I didn't find !
posted_image

I do no understand why there for door lock/unlock is 4 wires ? And how to connect to my Polo wiring !?

Replies:

Posted By: bluexe
Date Posted: October 08, 2011 at 8:54 AM

Someone ? I just need few tips, where can I get VW Polo 2002 -1.4tdi wiring diagram and how to connect them ! Please !

Posted By: howie ll
Date Posted: October 08, 2011 at 11:00 AM

Look at the driver's floor loom, something like WHITE/ green and WHITE/ red, years since I did one, type 3 pos trigger, also in that loom if light is present, in the rear hatch, thin yellow black, trunk/hatch trigger, BROWN / white (one of 2, test) all door trigger, black for ignition, brown for ground (earth) BLACK/ white left and BLACK/ green right indicators. The red in that loom will also give you your 12v+ power supply.
That alarm looks really cheap and nasty.
Don't attempt anything from the left hand side, something like 32 screws to get the glove box out.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: bluexe
Date Posted: October 08, 2011 at 4:06 PM

Thanks, for you reply :)

Yes, it's cheap, I bought it only for $20, because I just need remote for doors !

So all day I was messing around with my Polo and yes I found there 3 wiring , but I can't understand what I need to do , there are 5 wires from my cheap/nasty alarm system.

What should I do with these 5 wires ?

Posted By: howie ll
Date Posted: October 08, 2011 at 5:00 PM

Yellow and yellow/black to 12v+ constant (RED).
White to lock or unlock, WHITE/ black to lock or unlock (on, off? don't make me laugh).
Other two don't use. Even at £20 you're throwing your money away on that POS.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: bluexe
Date Posted: October 09, 2011 at 3:14 AM

Thanks, howie for your help :)

Posted By: bluexe
Date Posted: October 09, 2011 at 5:39 AM

I feel stupid, but I connected red wire with yellow / YELLOW black, and black with ground , when I press unlock/lock button from remote,It sounded like it works, but I can no find door lock/unlock wires, I cut and tested all wires - which I saw, but no results, disappointment !

Where could be door lock/unlock wires ?

Posted By: howie ll
Date Posted: October 09, 2011 at 5:44 AM

Read my first post again.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: bluexe
Date Posted: October 14, 2011 at 7:10 AM

Hi,

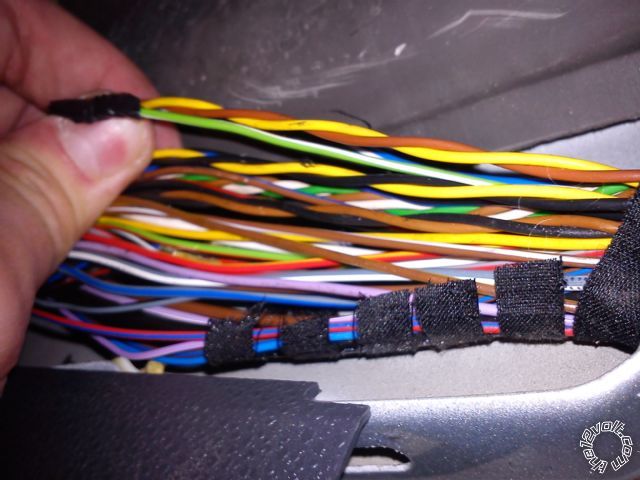

I'm back, with few question, so a tried to find these two wires, whit/red, and WHITE/ green, after 10min. I found them, but seems they are not what I need, no success. So I took a photo of these wires
posted_image

Maybe these door lock/unlock wires are in the drivers door loom ?

Posted By: bluexe
Date Posted: October 14, 2011 at 7:12 AM

Didn't know how to edit post, so here are the pic. link posted_image

https://img338.imageshack.us/img338/5694/dsc00007soe.jpg

Posted By: howie ll
Date Posted: October 14, 2011 at 7:12 AM

No, driver's FLOOR loom. If you pick them up in the door loom you will only operate the driver's door.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: howie ll
Date Posted: October 14, 2011 at 7:16 AM

Look to the left in that picture, that's the loom, follow it down to just in front of the driver's chair where you can pull it up to extract it. Open it (fan out the wires) and I'll point them out to you.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: bluexe
Date Posted: October 14, 2011 at 8:32 AM

Really hope this is the one, I have cut almost all car wires :D

Posted By: howie ll
Date Posted: October 14, 2011 at 8:45 AM

In your picture, the one in your hand is one, the other lurking there is I think the grey/white or WHITE/ grey.
also in that loom, BROWN / white, one of two, all door trigger, if you have a light in the hatch the trigger is a thin yellow black and your two indicator wires, BLACK/ white and BLACK/ green also. Any plain brown is your ground (earth or 0v) and any plain red your 12v+ supply, plain black your ignition.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: bluexe
Date Posted: October 14, 2011 at 8:50 AM

I tried the GREEN/ whit wire connect with alarm system whit and WHITE/ black nothing happened !

And just In case - I really appreciate your help

Posted By: howie ll
Date Posted: October 14, 2011 at 8:55 AM

Fine this is what you do:-
Throw away the alarm because that Chinese POS won't work any way.
Contact a proper installer such as myself if you are in the London area to have a decent (not expensive) unit fitted that will also give you window close.
N.B. To test the lock/unlock wires, any open door must have it's catch thrown over and the ignition key removed.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: bluexe
Date Posted: October 14, 2011 at 10:58 AM

doodie, I tried all wires with white and WHITE/ black, I'm wized off !
