Printer Friendly Forum Posts - build a door alarm

Hello Do not bother
Sorry, my first time there is a bad thread because I'll have this forum and thread
I need help I want to create an alarm for car doorsIt'll sound a little different in the following
alarm
12v is clear that
And if the time between
Ding / time / Ding / time / Ding
Be set from one second to ten seconds
Like when the car door opens sonata alarm Ding Ding beats
Please help me because I could not find the gate because I need
I can only make money at the gate thanks to the friends I've moved the thread
Please let me know bye for now

Oh my god
No one to help me
A website can introduce what I do

This website is mostly used by english speaking people and I am having a difficult time reading the translation, so I apologize for that. I will do my best to understand what you are doing.

It sounds like you want to add a key chime or warning buzzer to your car? First off let me know if this is correct and let us all know what kind of car you are working on so we can help better.

posted_image

-------------
To master and control electricity is perfection. *evil laugh*

Hello my friend
I can not write English
This text using Google's translation from Persian into English do not exactly forgive
I am an Iranian. Peugeot's car. Want to make the alarm. I installed on my car. While in the opening voice (Ding - Ding) give. Sdad like this (https://uplod.ir/rho2dt2pjpxh/alarm21.mp3.htm) Link will videos
I want circuit schematic. Including car bmv Ding Ding sound when you open fires.
I now know what I'm downloading audio and video

audio:https://uplod.ir/rho2dt2pjpxh/alarm21.mp3.htm
video:https://www.iraniantuning.com/upcenter/IT/do.php?id=2261
Please help me I am in dire need
Mercy Baby
See you later

When I open a door ding ding sound like Give bmv - Nissan Maxima - hyundai sonata. Opening a door alarm to warn the driver

There's a wire at the dome light (roof light) that will change state from open circuit to NEG when you open a door.
This to buzzer NEG wire buzzer POS to a 12V+ constant.

Ah well Kenny, I had a go.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Thought it was Kenny, sorry James. (What do expect at my age..66 I used to smile when my late mum had short term memory loss.)
The vehicle in question is based on a 70s model UK built Iranian assembled Peugeot and no I can't remember let alone find any info.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Dear Friend
(Circuit - schematic - diagram), an electronic alarm or warning got the car door open
Give me a call when you can introduce me to a diagram
The alarm is on bmv
I want to make it
Please download the voice and video
You know what I'm sayin
You can help build this circuit warning
Sound warnings
Video Alert

Are you kidding me?
Download a file from Iran?

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Like I'm not kidding
I need a circuit or schematic of (Ding-Ding)
Schematic and diagram and circuit-And components needed
for make Circuit Alert ding ding
The circuit for when the Of one door is open when moving
Ding ding sound give
Download audio and video
You know what I mean
Like car bmv
Doors opens
I do not speak good English Sorry

Help me make this kit

000000k wrote:

Like I'm not kidding
I need a circuit or schematic of (Ding-Ding)
Schematic and diagram and circuit-And components needed
for make Circuit Alert ding ding
The circuit for when the Of one door is open when moving
Ding ding sound give
Download audio and video
You know what I mean
Like car bmv
Doors opens
give voice alarm Ding Ding
I do not speak good English Sorry

Help me make this kit

They are mp3 audio & 3gp video files and they scanned ok, but after viewing etc I got a request for web access for "Updater21804" which seems to be trojan. I'll investigate that further...

000000k - you want a similar circuit to get the same sound and flashing as the in the video and sound files?

That video & sound is from a Sonata?

And is that a normal Sonata (or has a BMW style circuit been fitted)?

I suggest our OP finds someone who speaks English to write his posts, so far he has mentioned 3 makes of completely different car and not actually specified what he wants.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

I suppose I'll attempt to chime in here since Howie brought me into it anways... haha. To me it sounds like the OP wants to build his own door chime. I still have yet to determine what type of vehicle he has, but I'm assuming it is an older vehicle that doesn't have the factory chime.

You will need to find a way to give us the exact year, make, and model of your car otherwise we can only give so much help. You will need to find a 12 volt buzzer to start. Then from there it will also depend on how you want it to activate. Do you want it on every time the door is open? Or only when the door is open and the key is in the ignition?

Let us know what year, make, and model car you have.

-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205

Sorry Kenny and to add to the above you can diode it from either ignition or door trigger to complete the NEG side and have diode inputs from constant or lights to complete the POS side.
Why do I have a sneaky suspicion he wants an alarm?
At that point I hope the MODs close this post because we are all running around like blue a***d flies going nowhere.
Maybe all well be explained on April 1st.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

posted_image I done went and opened a can of worms here. I agree that the translator being used is seemingly not able to correctly get the point across. Someone who speaks both languages may be needed in order to fully understand what the Original Poster is trying to do.

Without more information we simply can not help. posted_image

-------------
To master and control electricity is perfection. *evil laugh*

Thank you
My car Peugeot 207
This car has no door alarm circuit
I want bmv
I know installing on my car
schematic diagrams and alarm

This car has no door alarm circuit You want a chime, either when the key is left in or lights?
I want bmv What's a bmv? What has this to do with a POS 207?
I know installing on my car Installing what?
schematic diagrams and alarm for what?

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

You have to remove the BSI box to get at various plugs.
You are looking for the following ignition.
Driver door trigger.
Side lights (not headlights).
Be very careful, most of the wiring on this vehicle was CAN and VAN data by then.

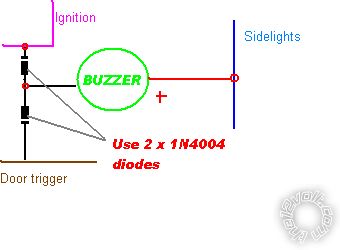

Here is your circuit.door_buzzer.bmp
You will need to probe the BSI box to find what you need.
This will buzz if you leave either the lights or the ignition on.
If you want just ignition I will have to alter the diagram.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Hello and thank you friends
I do not like the sound of the buzzer circuit is not well
I'd bmv car door alarm the circuit
Translator not
Please give bmv circuit

A BMW circuit in a POS 207, apart from saying you want Armani to make your Walmart suit, there have been about 30 model variations and at least 4 electronics generations since 1980.
What BMW, model and year.
Oh why am I bothering the answer is in my last post anyway and to make the BMW sound you will need the BMW parts
apart from the fact that ~~CRAP~~ I meant French cars have NO standard wiring colours, forget it.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

No matter the car model
I just want the circuit to Ding Ding same
Just a warning Schematic
Schematic for alarms, like a song that I upload -This give sound
https://uplod.ir/rho2dt2pjpxh/alarm21.mp3.htm
Orbital as posted_image

I need alarm schematic
I need schematic Ding Ding
I know Connection
Examples Schematic

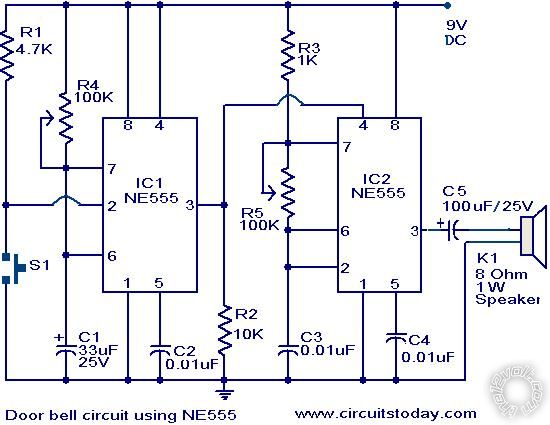

posted_image

I think its time you wrote in your native language and let us translate that.

I thought you likes and wanted that beep sound.

And what is wrong with those 555 circuits?

Who can speak Farsi
From Iran
In this site
Do you write Farsi

No, but I suspect translation will not be a problem.

Write a sample text and I'll translate.

I only want to Ding Ding circuit
Sounds like https://uplod.ir/rho2dt2pjpxh/alarm21.mp3.htm

Ito make a Ding Ding circuit
Electronic circuit diagram Ding Ding
Like videoLike video

Then I suggest you search BMW or electronics forums.

the12volt deals with things like car electrics & accessories, and wiring and interfacing methodologies.
It does not deal with electronic circuitry and sound kits etc - it would only deal with how to connect those circuits.

A BMW site should be able to tell you what module creates that sound. You might then be able to obtain that module.

Electronic and audio-project sites may have circuits that can replicate the sound.

Or maybe buy or build a digital recorder or sampler and use that.

Thanks to my friend
I do not know English, you can do it for me

I can do English, French, Spanish, some German, Hebrew and a little Arabic.
But not Farsi.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

I still suggest including you original Farsi text.
Readers may have their other translators - eg, the firefox Translate This add-on I mentioned.

Besides, there may be Farsi speakers. We certainly have many down-under here, but I don't know if they'd be on forums.

Good luck and best wishes.

The nearest places you will find the parts and expertise will be either Israel or India.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Search I
I can not find the
Israel Says Iran Sanctions
No one will help me

Ding Ding opened car door warning circuit?

hi all , i ask about circuit diagram that acts as opened car door warning buzzer , that found in all new model of cars , i want to use it in old model that hasn’t any new technology like warrning door , light dimmer …etc
thanx for all

This site plays the same sound whether the circuit ding ding
https://www.newcircuits.com/circuit.php?id=sec004

But isn't that merely an alarm circuit that turns on something else (a horn etc)?

The trigger circuit is easy - that just uses the door switches to turn on the "chime".

You want a buzzer or chime circuit that gives you the sound you want. Yes?

Also, try any BMW etc site. Howard thought Israel & India would have the "local" expertise.
Alas, political policy sometimes prevents us decent people doing what we should be free to do - eg, helping others. But hence the beauty of things like this forum and the web - we can cooperate on the human level. (Ooops - that sounds political. I'm merely pushing the people to people aspect.)

Maybe later I will try searching for that information. But not now - my girlfriend awaits me yet again.

Sorry too if my writing is difficult to understand. But even English speakers have troubles with that! posted_image

Thank you my dear
You can help me?
Ding Ding an alarm circuit to give me?
No matter the type of car.
Schematic Give me a.
I am waiting for your help

The BMW E36 has the chime you want, eg - youtube JrWXsZUQZWI.

The pin outs are as per unofficialbmw e36_gong.

Examples of the different triggers/pins/sounds is at youtube pxnlJAvyr5s.

And an example for one sale is eBay item 251225287029 for USD$25.

PS - it seems the E36 E38 E39 E46 chimes are all the same, but I only found that first link for the E36 that matched your sound file.

Except how does he buy it?
Relatives in the US or Europe, in which case why didn't he get them to do this in English?

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

What? You mean eBay USA won't ship to Iraq? Geez, they shipped...

Yeah... But I figured one thing at a time.

And maybe he can get the module locally. After all, someone did.

IRAN not IRAQ

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

E do not know anyone here.

Able to design for the needy
People who need

https://www.eeweb.com/electronics-forum/request-circuit-alarm/

Needy people need a "nice" chime for their cars?
I think that translator means "wanting" people - ie, people that want that chime for their cars.
If anyone "needs" a chime, they would use an ordinary buzzer connected from +12V to the grounded door switches, probably with diodes inserted in each door-switch circuit to prevent one circuit effecting the other.

But you are getting answers at eeweb.com.

The twin-T oscillator sounds good. I used to use then for electronic bongo & drums.

But for your sampled sound, getting the BMW module is probably the simplest and cheapest, unless perhaps someone has a circuit for one.
Otherwise a digital sampling chip or recorder, or mp3 player etc.
Or some other uPC or PICAXE that can be programmed for the same.

howie ll wrote:

IRAN not IRAQ

Yeah, sorry.

At first I thought you were referring to (limited?) hardware export to Iran (as opposed to "the Shah"), but then I saw I had mistyped.

I guess the USA has ceased exporting WMD etc knowledge to Iraq... (yes, Iraq.) posted_image

Yes they get it from North Korea and Pakistan these days.
Stop trying to wind me up Peter.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Today I got a chime module from (I think) a 1997 Polo. It has the same chime that 00000k wants.

It's relay number 39 p/n 1HO919433A. The only difference between it and the (older) #49 relay is the "A" and the #49 instead of #39 (on the top of the relay - ie, on the speaker grill), but the #49 1HO919433 has a totally different sound.

Internally they are very different but the 1HO919433A uses a hybrid circuit with an SMD LM3903 chip (comparator) and looks to be reverse engineerable. (Surely some VAG site has?)

Again, stop trying to wind me up!

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

LOL.
Nah - the wind up comes with the request for the circuit.
Then the build.
Then the comment that it would have been cheaper to buy a Polo etc, or fly to a car wrecker.

We would have stood a chance if:-
a) OP knew what the heck he was talking about.
b) A decent grasp of English.
I've helped Egyptians, Iraqis I told them straight I was Jewish, no problems, but,they had a very good grasp of English.
Mid 20th. century onwards and for say another 30 years you MUST have good English for science/engineering. It will swing to Mandarin plus Hebrew and Hindi, except in Israel and India, English is the de-facto 2nd. language.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
