Topic: viper 350 plus silverado
Posted By: jaimejr18
Subject: viper 350 plus silverado
Date Posted: February 24, 2013 at 6:47 PM
i have a 2003 chevy silverado 1500 and im trying to install a viper 350 plus alarm if anyone can help me or post a wiring schematic of wich wire goes were itd be appreciated
Replies:
Posted By: itsyuk
Date Posted: February 25, 2013 at 11:58 PM
start here first
https://www.bulldogsecurity.com/bdnew/vehiclewiringdiagrams.asp
------------- yuk
quiet rural missouri, near KC.
If your system moves you physically and not emotionally, you have wasted your money.
Posted By: offroadzj
Date Posted: February 26, 2013 at 6:01 AM
If you can, post up the wire connections from the Viper install manual. That will at least give us a head start to help you link the 2 diagrams together. A lot of us tend to be busy and as much as we love to help, we don't always have time to search for the manual and then make up a complete write-up for wire to wire connections. But if you can get us at least half way there, it will save us time.
Use this format:
Connector 1:
Pin (if available) - Wire Color - Wire description (ie ignition, status out, etc)
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: howie ll
Date Posted: February 26, 2013 at 6:54 AM
Nice one Kenny.
Think I'll copy and paste your post as a template. Like I do with Kregg's version, you'll get a copyright credit.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: offroadzj
Date Posted: February 26, 2013 at 9:06 AM
ALso, which bypass are you using?
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: offroadzj
Date Posted: February 26, 2013 at 9:07 AM
ALso, which bypass are you using?
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: howie ll
Date Posted: February 26, 2013 at 9:29 AM
It's NOT an R/S Kenny, just an entry level alarm with the 1st. generation 2 way.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: offroadzj
Date Posted: February 28, 2013 at 5:59 AM
Testing this out...
Vehicle: 2003 Chevy Silverado
Alarm / Remote Start Unit: Viper 350 Plus
Bypass Module:
Alarm / Remote Start / Bypass Unit Vehicle
Connection Color Description Color Polarity Location:
H1 RED / White Trunk release No connection
Red 12v Constant Power input Red (40amp) + Ignition harness
Brown Siren Output Connect to red wire on alarm siren
Yellow Switched Ignition Input Pink + Ignition harness
Black Chassis Ground Connect to solid chassis ground.
Violet (+) door trigger input No connection
Blue (-) Instant trigger input Optional hood pin or external trigger.
Green (-) Door trigger input gray / black - driver window switch (pin 18; black 26 pin plug)
** On base models, it is gray / black (-) at the BCM pin B4; Light blue plug. The BCM is under the driver dash.
Black / White (-) 200mA Domelight supervision Optional connection. Not required.
White / Blue (-) 200mA Channel 3 programmable output Optional connection. Not required.
White (+/-) Selectable light flash output gray / black - BCM pin B2; brown plug
** Change Viper's light flash jumper to (-) output.
Orange (-) 500mA Ground when armed output Optional connection. Not required.
Lock Harness Blue (-) unlock / (+) lock output Must use interface module for locks or refer to Tech Doc 1601
Green (-) lock / (+) unlock output Must use interface module for locks or refer to Tech Doc 1601
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: February 28, 2013 at 9:02 AM
ive been working out of town for the last few days yesterday i got home n wired it up with no problems thank yall for the help today when i get home or tommorow ill post pictures
Posted By: jaimejr18
Date Posted: February 28, 2013 at 9:04 AM
the only problem im having is connectin the proximity sensor to the alarm i cant figure it out i dunno if suppose to start a new thread or if its ok for me to write this on here
Posted By: offroadzj
Date Posted: February 28, 2013 at 9:08 AM
I would just continue in here. No sense making a new thread for it. What is the issue?
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: February 28, 2013 at 9:12 AM
im trying to connect the proximyti sensor to the alarm
Posted By: offroadzj
Date Posted: February 28, 2013 at 11:20 AM
What wires are coming out of it? What model is it?
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: howie ll
Date Posted: February 28, 2013 at 11:43 AM
If it has the following wires;
Blue
Green
Red
Black
Join red and black to the 350 ground (black) and red 12V+ after the fuse.
Join green and blue then Y connect to the 350 Blue.
Use diodes, bands away from the 350. As per the install diagram or look at this:-

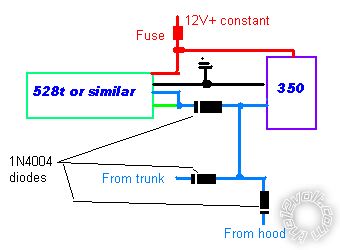

dual_zone_to_350.bmp------------- Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: howie ll
Date Posted: February 28, 2013 at 11:45 AM
I was also bored Kenny.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: jaimejr18
Date Posted: March 01, 2013 at 2:40 PM
ok so when i arm the alarm and open the doors the alarm doesnt activate i cant find the door trigger wire on the truck to hook it up to
and the remote unlock and lock wont work
Posted By: offroadzj
Date Posted: March 01, 2013 at 3:33 PM
The door trigger is at the power window switch... inside the driver door. The lock and unlock requires a bit of extra work unless a bypass is used. See Tech Doc 1601 (search the Downloads/Manual section on this site) for the lock / unlock information.
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 01, 2013 at 3:37 PM
the truck already has stock power lock windows i just cant locate the wirre to hook it up to
Posted By: jaimejr18
Date Posted: March 01, 2013 at 3:38 PM
the truck already has stock power lock windows i just cant locate the wirre to hook it up to
Posted By: offroadzj
Date Posted: March 01, 2013 at 3:41 PM
Stock power locks and power windows has nothing to do with the door lock and door trigger connections. The door trigger still requires you to go into the door and the lock / unlock still requires the Tech Doc 1601 wiring setup. It is a royal PITA on that truck and you are 100x better off spending the extra money on a bypass to handle it all for you. Otherwise you are in for a world of hurt if you haven't had the pleasure of wiring up the 1601 yet...
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 01, 2013 at 3:44 PM
aight i found the door trigger wire :) i been trying to figre these out thanks alot nd ok about the unlock lock
Posted By: jaimejr18
Date Posted: March 01, 2013 at 5:31 PM
i cant find tech doc 1601
Posted By: offroadzj
Date Posted: March 01, 2013 at 5:40 PM
Search in the downloads/manuals section for "1601" Its there.
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 01, 2013 at 6:10 PM
i read the 1601 i dont inderstand it were is the relay i need to hook up to just to have driver door unlocked
Posted By: howie ll
Date Posted: March 01, 2013 at 6:21 PM
You will need two more relays if you're talking driver priority unlock but frankly I don't think you will be able to do this.
You will also need 1N4004 quenching diodes across all those relays.
-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.
Posted By: jaimejr18
Date Posted: March 01, 2013 at 6:28 PM
what module can i hook up to my alarm systen viper 350 plus to work with the 2003 silverado to unlock the door
Posted By: jaimejr18
Date Posted: March 01, 2013 at 8:33 PM
i found a module the 1700g that will work
Posted By: jaimejr18
Date Posted: March 04, 2013 at 9:22 PM
alright the module came in can someone help me with da install n how to do it i tried using thr xk01 module but no luck it was jus headaches i think i programed it wrong i still have the xk01 how do i reset it to let me reprogram a veichle again
Posted By: jaimejr18
Date Posted: March 04, 2013 at 9:22 PM
alright the module came in can someone help me with da install n how to do it i tried using thr xk01 module but no luck it was jus headaches i think i programed it wrong i still have the xk01 how do i reset it to let me reprogram a veichle again
Posted By: offroadzj
Date Posted: March 05, 2013 at 9:05 AM
Which unit are you trying to install? I don't know a ton about DEI stuff but doesn't the XK01 do the locks as well? Or did you get the XK01 instead of the 1700G? I believe the XK01 needs to be flashed with the correct firmware for the vehicle(but I don't know that for sure).
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 05, 2013 at 7:01 PM
i got both but the xk01 didnt wanna work i went n got it flashed n programed for the truck but no luck so i ordered the 1700g i just hadnt had time to install it
Posted By: offroadzj
Date Posted: March 05, 2013 at 7:07 PM
The XK01 should work fine for that. Was it flashed with the AMDL v6.00 firmware? Did you try going W2W? That bypass should be a walk in the park on that truck.
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 05, 2013 at 7:11 PM
yea it has the latest firmware n yea the viper only does w2w i think i programed the wrong veichle type on it i was trying to figure out how to reset it so i cant chose a different veichle type
Posted By: offroadzj
Date Posted: March 05, 2013 at 7:28 PM
I don't see anything about how to reset it, but have you tried just setting it as you did the first time? It may allow you to change the vehicle type without resetting. When you plug the harness in, then turn the ignition on, the LED will most likely flash 4 times (indicating the vehicle is already set). Try pressing and releasing the programming button to see if it changes. If so, once on type 4, save the programming by holding the programming button until the LED turns on solid then start the truck.
Give that a shot and see if it works. Hopefully it does.
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 05, 2013 at 7:41 PM
ok ill gove that a try
Posted By: jaimejr18
Date Posted: March 05, 2013 at 7:41 PM
ok ill gove that a try
Posted By: jaimejr18
Date Posted: March 06, 2013 at 9:42 AM
it just blinks like normal
Posted By: offroadzj
Date Posted: March 06, 2013 at 11:03 AM
So it won't let you re-program it? I would try contacting Xpresskit to see if they can possibly help you reset it. They may give you trouble though because you are not an authorized installer... some companies will only offer tech support to authorized dealers / installers.
If that doesn't work you may just have to use the 1700G instead (or have the XK01 reflashed)
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 06, 2013 at 11:12 AM
it was flashed n ready to go by a autorized dealer he told me jus to wire it up to the alarm n itd start working but i had no luck
Posted By: offroadzj
Date Posted: March 06, 2013 at 1:10 PM
You may have to re-flash it in order for it to allow you to reset the vehicle type. I don't work a lot with Xpresskit bypasses so maybe someone has another solution, but I can't find any way to reset it to allow you to set the correct vehicle type.
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Posted By: jaimejr18
Date Posted: March 06, 2013 at 3:12 PM
yea i always afraid of that hopefully when i get home from work ill try the 1700g module nd that will work
Posted By: jaimejr18
Date Posted: March 06, 2013 at 3:12 PM
yea i always afraid of that hopefully when i get home from work ill try the 1700g module nd that will work
Posted By: jaimejr18
Date Posted: March 06, 2013 at 9:42 PM
well the 1700g module works perfectly my locks work now nd the factory arm dis arm does too
Posted By: offroadzj
Date Posted: March 07, 2013 at 6:02 AM
Sounds good. Glad you were able to get it figured out... just sucks you had to buy another bypass. That is one reason I really prefer the iDatalink bypasses. They have a nice and easy factory reset for cases like this.
-------------
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
|
