viper 5706v won’t remote start

I have the viper 5706v installed in my 2005 camry le 4cyl. Lock and unlocks work but it won't remote start. I have changed the settings for automatic transmission. Now I don't know what to do? I'm pretty sure everything is wired correctly. My car doesn't have the transponder because I checked for the wires.

-------------
USN

Won't remote start is quite vague. What does it do when you remote start it? It also would help if you could list what wires you have hooked up.

Main Harness (H1), 6-pin connector
H1/1 RED (+)12VDC CONSTANT INPUT-----------------Wht/Red May find new source
H1/2 BLACK (-) CHASSIS GROUND-----------------------Ground to Chassis
H1/3 BROWN (+) SIREN OUTPUT-------------------------Siren
H1/4 WHITE/ BROWN PARKING LIGHT ISOLATION WIRE - PIN 87a of onboard relay------Need Help??
H1/5 WHITE PARKING LIGHT OUTPUT-------------------------------Green(headlight switch)
H1/6 ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT---------------Need Help??

H2 Harness, 24-pin connector
H2/1 PINK/WHITE (-) 200mA IGNITION/FLEX RELAY CONTROL OUTPUT------------------not used??
H2/2 BLACK/ WHITE (-) NEUTRAL SAFETY INPUT------------------------------------------------Ground to Chassis
H2/3 BLUE/WHITE (-) 200mA 2ND STATUS /REAR DEFOGGER OUTPUT---------------- Need Help??
H2/4 GREEN/ BLACK (-) 200mA OEM ALARM DISARM OUTPUT-----------------------------not used
H2/5 RED / WHITE (-) 200mA TRUNK RELEASE OUTPUT-------------Not used
H2/6 GREEN (-) DOOR TRIGGER INPUT (N/C* OR N/O)------------------------RED / Green
H2/7 BLACK / YELLOW (-) 200mA DOME LIGHT SUPERVISION OUTPUT--------same as (-) door trigger??
H2/8 BROWN / BLACK (-) 200mA HORN HONK OUTPUT------ not used
H2/9 DARK BLUE (-) 200mA STATUS OUTPUT-----Not used
H2/10 PINK (-) 200mA IGNITION 1 OUTPUT--------------------------not used when installing remote start??
H2/11 WHITE/ BLACK (-) 200mA AUX 3 OUTPUT--------------------not used
H2/12 VIOLET (+) DOOR TRIGGER INPUT---------------------------------------not used
H2/13 WHITE/ VIOLET (-) 200mA AUX 1 OUTPUT-------------------------------not used
H2/14 VIOLET/BLACK (-) 200mA AUX 2 OUTPUT-------------------------------not used
H2/15 ORANGE / BLACK (-) 200mA AUX 4 OUTPUT-----------------------------not used
H2/16 BROWN (+) BRAKE SHUTDOWN INPUT---------------------------- GREEN / WHITE (switch above brake pedal)
H2/17 GREY (-) HOOD PIN INPUT (N/C OR N/O)---------------------------- Hood pin wire that came with alarm
H2/18 VIOLET / YELLOW (-) 200mA STARTER OUTPUT---------------------not used??
H2/19 BLUE (-) TRUNK PIN/ INSTANT TRIGGER INPUT (N/C OR N/O)---------not used
H2/20 GREY/BLACK (-) DIESEL WAIT TO START INPUT-------------------------------not used
H2/21 WHITE/ BLUE (-) REMOTE START/ TURBO TIMER ACTIVATION INPUT-------not used
H2/22 ORANGE (-) 200mA ACCESSORY OUTPUT-----------------------------------not used
H2/23 VIOLET/WHITE TACHOMETER INPUT--------------@ Datalink Connector
H2/24 GREEN / WHITE (-) 200mA OEM ALARM ARM OUTPUT---------------------not used

Remote Start, (H3) 10-pin connector
H3/1 PINK (+) IGNITION 1 INPUT/OUTPUT------------------------BLACK/ Red(ignition switch)
H3/2 RED / WHITE (87) FLEX RELAY +12V INPUT (30A FUSED)----------WHITE/ Red (ignition switch)
H3/3 ORANGE (+) ACCESSORY OUTPUT------------------------Blue/Red ( ignition switch)
H3/4 VIOLET (+) STARTER OUTPUT (CAR SIDE OF THE STARTER KILL)—BLACK/ White(@ ignition switch starter side)
H3/5 GREEN (+) STARTER INPUT (KEY SIDE OF THE STARTER KILL)------BLACK/ White(@ ignition switch keyside)
H3/6 RED IGNITION 1 +12V INPUT (30A FUSED)----------------------------WHITE/ Red(ignition switch)
H3/7 PINK/WHITE (30) FLEX RELAY OUTPUT (car side of ign, acc or starter wire)----------------not used
H3/8 PINK/BLACK (87a) FLEX RELAY INPUT (key side of ign, acc or starter wire if needed)----not used
H3/9 RED / BLACK ACCESSORY/STARTER RELAY +12V INPUT (30A FUSED)------------Yellow (ignition switch)
H3/10 NC No Connection----------------------------not used

Door Lock, 3-pin connector
1 BLUE (-) 500mA UNLOCK OUTPUT---------------------------Blue (drivers kick door harness Type B)
2 EMPTY NOT USED-----------not used
3 GREEN (-) 500mA LOCK OUTPUT----------------------------Blue / YELLOW

-------------
USN

Bulldog shows that this car has two starter wires AND two ignitions wires.
You will need to use the H3/7 Pink/White as either a starter wire or an ignition wire. This is the Flex relay that can be changed to either Starter, Ignition, or Accessory. This comes as Ignition 2 from the factory. Menu 3, Item 8, Option 1, Ignition 2, Option 2, Accessory 2, Option 3, Starter 2.

Then you will need a relay to power up the other 2nd starter or ignition via the H2/10 or 2/18 depending on how you used the H3/7 wire.
H3/9 needs to go to a 12 volt source.
The statement below is from a wiring guide source. You may want to double check the starter wires with a DMM.

There Are Two BLACK / YELLOW Wires Please Check

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

H3/9 is 12 volts my mistake I copied and paste and edited the info. I confused as what you want me to do. Are you saying to keep the pink/white as ignition 2 default and connect it to the second ignition then what?

-------------
USN

Then you will need a relay and the h2/18 (-) 200mA Starter output to power up the 2nd starter.



-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

I believe I tried that before but no avail. It was wired like so.

86 & 87 12 volts fused 30amp
85 H2/18
30 starter 2

-------------
USN

As far as starter 2 wire and ignition 2. Maybe I didn't identify them correctly but they should behave like their primary counter parts am I right?

-------------
USN

You are correct. You should use a DMM to check each wire for its function. Wiring guides are just a guide.
Are you connection soldered or crimped?
Test each wire, make your connection, tape and then move on to the next wire.

https://www.bulldogsecurity.com/bdnew/vehiclewiringdiagrams.aspx

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

But what about wiring the relay? How should I wire it?

-------------
USN

https://www.the12volt.com/relays/relaydiagram8.html

86 and 30 to 12 volt source, 85 to H2/18 (-) 200mA Starter output

87 to starter 2 wire of car

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

I've tried that before but it didn't work. I'm gonna try to check the settings again for tach or flex relay and see. Not sure if those would conflict with it.

-------------
USN

Here is a video I made up showing basic connections for a remote starter. I used a relay for Accessory 2 in this, but a second starter set up would be similar. All of the outputs are connected to lights to show the 12 volts being applied to each circuit.
Maybe it can help.

https://youtu.be/uq1ETQxMp7M

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

I did some more troubleshooting. H2/18 is not clicking the relay. I think it may be bad. Is there a way around it maybe a different output instead.

-------------
USN

Try using the H2/10 for you 2nd Ignition and change the H3/7 to second Starter.

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

Have you put a DMM on the outputs of the H3 harness to see if there is any voltage?
Does the remote starter do anything when trying to start? Dash Lights coming on? Trying to start 3 time before stopping?
Any flashes from the parking lights to indicate a problem?

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

I haven't read the voltage on the harness. When I make h3/7 second starter do I have to change flex relay function to starter 2?

-------------
USN

That would be a Yes.

Menu 3, Item 8, Option 1, Ignition 2, Option 2, Accessory 2, Option 3, Starter 2.

-------------
When all else fails, Read the Instructions
Support the12volt.com Make a Donation

Do the following:-
Your original added relay that didn't work, have you tested it? Inputs and outputs, BTW did you put a quenching diode on the relay? If not you've possibly fried the H2 starter output.
Is the aux switch plugged in and on? Black plug.
Is the BLACK/ white on H2 either grounded or connected to handbrake switch?
Tach learned, connected violet/white on H2 to tach?
How have you made your connections?

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Aux switch plugged in and on, BLACK/ white is grounded, starter 2 output definitely fried , flex relay function changed to starter 2, I didn't use a diode but I do have some just let me know where to place it,and my car won't learn the tach. I placed that wire on an injector probably should find the tach wire behind the glovebox BLACK/ orange.

-------------
USN

Also can can anyone confirm if my 2005 Camry Le comes with an immobilizer? I only see the ignition harness and key sense harness under the steering wheel.

-------------
USN

Diode = 1N4004 connected to 85 and 86, band to 86.
Tach, if there's a wire at pin 9 of your OBD ll data socket, that's a tach wire.
Can you go into programming mode via the control centre?
When it fails to start, listen for clicks from the brain immediately afterwards and count them or on the quick reference sheet, top right, perform shutdown diagnostics.


-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Is there a by-pass needed as well?

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Sorry we crossed paths, easiest method for testing would be to try and hot wire, after you've tested to see which wire does which.
If it fails to hot wire then you have an immobiliser, also physically look for a plastic shroud around the ignition key switch, after having removed the cowling.

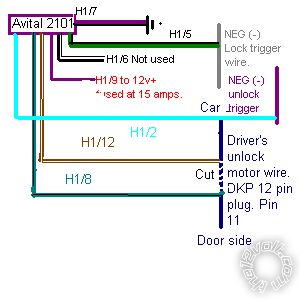

Here's a layout for a Tacoma I did some time ago:-
It's effectively the same as yours.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

As for the second starter, use this:-
Take a thin wire, purple unused on H2 to H3 purple.
Join other end to relay 86, ground 85, again diode, band to 86.
Cut second starter, ignition switch to 87a, 30amp constant fused to 87 and starter side of cut wire to 30.
Also ignore the wires you've marked a need help.
Dome supervision not required, Toyotas already have it.
Connect your green at H2 to the switched side of the dome light.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Everything is working great. Thanks to everyone for your support. On to the next project my 06 Mustang Gt.

-------------
