Topic: 2011 Ford Fiesta, Parking Lights and Locks

Posted By: ziggyb222
Subject: 2011 Ford Fiesta, Parking Lights and Locks
Date Posted: February 17, 2015 at 9:07 AM

Some conflicting information on this car 2011 Ford Fiesta. Where is the best place to get the park lights and the locks. Some say single wire locks???? Any help would be great. Doing this car this week...Thanks

Replies:

Posted By: tedmond
Date Posted: February 17, 2015 at 10:26 AM

parking lights:

Front: GREEN/ orange,BROWN / yellow (+) @ bcm 24pin BLUE PLUG
Rear: PURPLE / green,WHITE/ orange (+) @ bcm 24pin GREY PLUG

OR

Negative headlight switch follow techdoc 1096

doorlocks bcm follow techdoc 1099

use the evo-all much easier

-------------
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert

Posted By: ziggyb222
Date Posted: February 17, 2015 at 10:46 AM

Will have the EVO ALL tomorrow....lol

Posted By: howie ll
Date Posted: February 17, 2015 at 11:25 AM

We used DB-ALL but hard wired the locks.
Use FRD03 software, follow BUT from the alarm, use an aux linked to arm or factory arm to yellow/grey pin 6 grey plug C7, factory disarm to PURPLE / brown pin 19, same plug.
This will give you ignition lock/unlock if required but will deadlock the vehicle on arming the alarm and turn off the factory alarm at the same time.
No need to go into the driver's door if this car use key ignition.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: ziggyb222
Date Posted: February 17, 2015 at 9:45 PM

Does not show on Fortin site the Evo All does the locks on the Fiesta...has that changed?

Posted By: ziggyb222
Date Posted: February 17, 2015 at 9:46 PM

And does anyone have a link to the Tech Doc 1099?

Posted By: howie ll
Date Posted: February 18, 2015 at 4:00 AM

Try looking at the plug I mentioned above for the wiring before worrying about 1099.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: ziggyb222
Date Posted: February 18, 2015 at 6:18 AM

OK...Thanks howie!!!!!!

Posted By: howie ll
Date Posted: February 18, 2015 at 11:54 AM

If you mod this for the EVO-ALL it should work!

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: tedmond
Date Posted: February 18, 2015 at 11:56 AM

Howie asked me to upload this

posted_image

-------------
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert

Posted By: howie ll
Date Posted: February 18, 2015 at 11:59 AM

Thanks, I'm running off a 4G ipad and a 4G Note trouble is 4G ends 1 mile from me and my broadband this week is the note tethered to my PC!

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: ziggyb222
Date Posted: February 18, 2015 at 12:02 PM

You guys are Awesome....Thanks!!!!!!

Posted By: howie ll
Date Posted: February 18, 2015 at 12:12 PM

Additional thoughts:-
You don't need the heavy gauge H3 loom for this, 14-16 ga. wire (1mm) is more than adequate with a 15 amp fuse to replace the 3 x 30 in the loom.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: tedmond
Date Posted: February 18, 2015 at 12:29 PM

have you done the install?

I was always under the impression the fortin handled the ford locks/can-guess it doesn't for the fiesta.

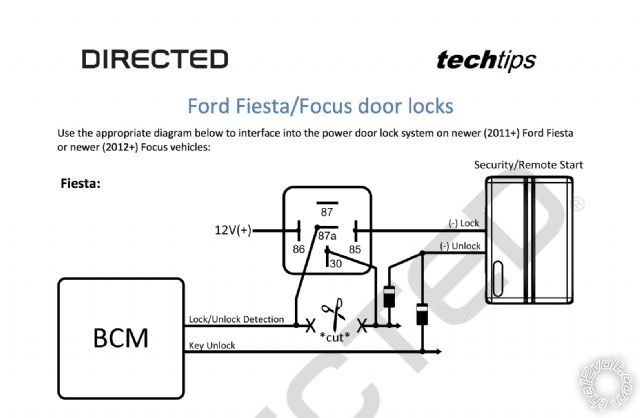

The system is not tricky. Its still a single wire lock/unlock, you just have to break the detection wire; or else pressing unlock twice would result in a locked door.

Howie's diagram in theory works for the xpresskit as their firmware utilizes the internal relays, however this would not work on the fortin. The fortin also has internal relays that can switch inside, but they are not programmed to do so-which would cause a non functioning part. You could email them and have them write a custom firmware for you though.

2 options:
1) use a starter with a single button remote and use the BROWN / white @ BCM behind glove box white 24 pin plug pin 8. locks will alternate between lock and unlock which is fine.

2) use any system with separate lock and unlock use tech 1099
yellow/grey (-) lock/arm
PURPLE / brown (-) unlock/disarm
blue/brown (-) unlock sensor

posted_image

-------------
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert

Posted By: howie ll
Date Posted: February 18, 2015 at 12:35 PM

Thanks Ted, I looked at the Fortin diagram and thought, heck you can't use this.
Except if your remote start has lock/unlock outputs, you hardwire to the grey plug on the CEM. The only part you will be ignition controlled lock and unlock.
You can use the alarm's lock and unlock wires with a relay as a one wire system and alarm/RS factory alarm lock and unlock to do the deadlock and factory alarm disarm, then you get the best of both worlds.

-------------
Amateurs assume, don't test and have problems; pros test first. I am not a free install service.
Read the installation manual, do a search here or online for your vehicle wiring before posting.

Posted By: tedmond
Date Posted: February 18, 2015 at 5:46 PM

I would agree with Howie. Just hardwire the door locks.

-------------
