Add Windows Roll up module?

I had a Honda Accord 09 and installed a Cardot Alarm system Remote start and PKE. The Cardot Alarm System has Window roll up -neg. output. I like to add Windows Roll up module. I seen some Windows roll up module diagram need to cut the window switch wire and connect to the window roolup module. My Honda Accord window switch connected to my factory alarm. How I can install the window roll up module? Thanks in advance.

Someone? Pls!

Can I use PAC TR-7?

2 windows?, 4 windows?, what are you shooting for as far as controlling the windows?

-------------
I drink current, eat ohms, and bleed voltage

2 windows n sunroof.

The cardot alarm system had the window roll up output. If press the lock it should roll up the window, if I connect the window rollup output.

I would use the DEI 529T or 530T depending on what you want to accomplish. You can find the manuals for both in the download section.

-------------
I drink current, eat ohms, and bleed voltage

I like to do is if I press lock all windows are close. I seen the both Dei need to cut wiring. How I can install on my accord ? I checked my window wire say "use factory arm/disarm" can you help me how I wire the module?

Turn your door key in the driver door cylinder in the unlock position and hold it til all the windows roll down then hold in the lock position until all the windows roll up. Does your car function this way?

-------------
I drink current, eat ohms, and bleed voltage

Yes

I want to connect to my alarm and goes all windows roll up.

What's is the model of your cardot so I can see a schematic for it. Basically you have to connect your window roll up output the the rearm in the accord but I would like to make sure the circuitry of the two will mesh together

-------------
I drink current, eat ohms, and bleed voltage

Cardot 1100.

I added this https://www.the12volt.com/relays/relaydiagram69.html

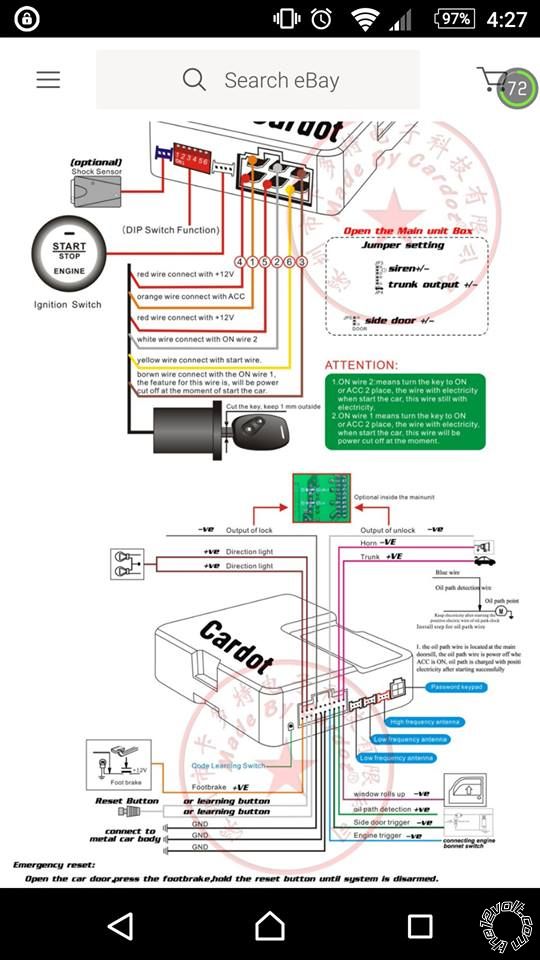

This is the Diagram

looks like the window roll up output is for 6 sec, unless I'm looking at the wrong manual. But, how do you engage the window roll up output? Do you have a manual that explains the features otherwise you'll have to deal with tech support.

-------------
I drink current, eat ohms, and bleed voltage

Thats the only diagram. Its say only if i press lock the window roll up.

Based on the info, you'll have to tie the (-) window roll up wire to the Accord's Factory Alarm Arm wire in the Driver's Door. In theory, based on the info, when you hit lock on the remote the factory alarm arm wire in the Accord will see a ground pulse for 6 sec and roll the windows up.

Here's a wire diagram with a photo of the factory alarm arm location:
09 Honda Accord Wiring

-------------
I drink current, eat ohms, and bleed voltage

I tried to connect the Cardot window roll up output from factory alarm arm but no luck. It should roll up?

It should roll up if you can trigger the windows with the key in the driver door cylinder. (Test) With the Windows's down and the doors closed (make sure the drivers door switch is plugged in) take a jumper and tie one end into the factory alarm arm wire and take the other end and hold it to ground. Do the windows roll up? If so, the cardot output isn't engaging on lock or you need a relay because the output doesn't have enough current to power the circuit

-------------
I drink current, eat ohms, and bleed voltage

How I can add relay?

85: 12v constant fused
86: (-) window roll-up...(cardot 1100)
87: chassis ground
87a: ------
30: factory alarm arm

-------------
I drink current, eat ohms, and bleed voltage

I'll give it a try... Thanks

If u haven't already, you should make sure that you are getting a (-) output on the window roll up wire when you hit lock on the remote, otherwise a relay will serve no purpose.

-------------
I drink current, eat ohms, and bleed voltage

I tried it ... Yes, the relay had 30/60sec. Pulse. But the window doesn't roll up .. Honda accord windows roll up works if you insert the key in driver door, then turn lock position and turn it again then hold. Windows n sunroof will roll up/close. I might need like second pulse and hold.

On the cardot unit ,when u hit lock on the remote, does the lock output engage at the same time as the window roll up or does the lock output pulse before the window roll up output

-------------
I drink current, eat ohms, and bleed voltage

Lock output and window roll up output engaged same time.

How I can do lock output first then window output?

Did u test the theory on the FAA wire by pulsing it with ground 2 times to see if the windows rolled up otherwise we are fighting a lost cause

-------------
I drink current, eat ohms, and bleed voltage

The lock need two times ground to roll the window up.

How are you locking the doors with the cardott

-------------
I drink current, eat ohms, and bleed voltage

Cardot has the PKE passive keyless entry.

Sorry I meant what wire is the lock wire from the cardott tied into in the vehicle or is it running through a bypass module for door locks.

-------------
I drink current, eat ohms, and bleed voltage

I run the Cardot lock and unlock output. I used DEI universal bypass.

I'm not following you with the dei universal bypass. Does that have anything to do with the door locks. This is crucial to solving your issue. Where is the lock wire from the cardot connected in order to lock your vehicles doors. If this makes it simpler for you, what is the lock output from the cardot connected to. If a bypass, what's the model number.

-------------
I drink current, eat ohms, and bleed voltage

Cardot lock output goes orange wire -neg. (Factory arm/lock)

send me a PM with your email address and ill send you a wiring diagram in bmp format. The file is to big to upload on the forum


-------------
